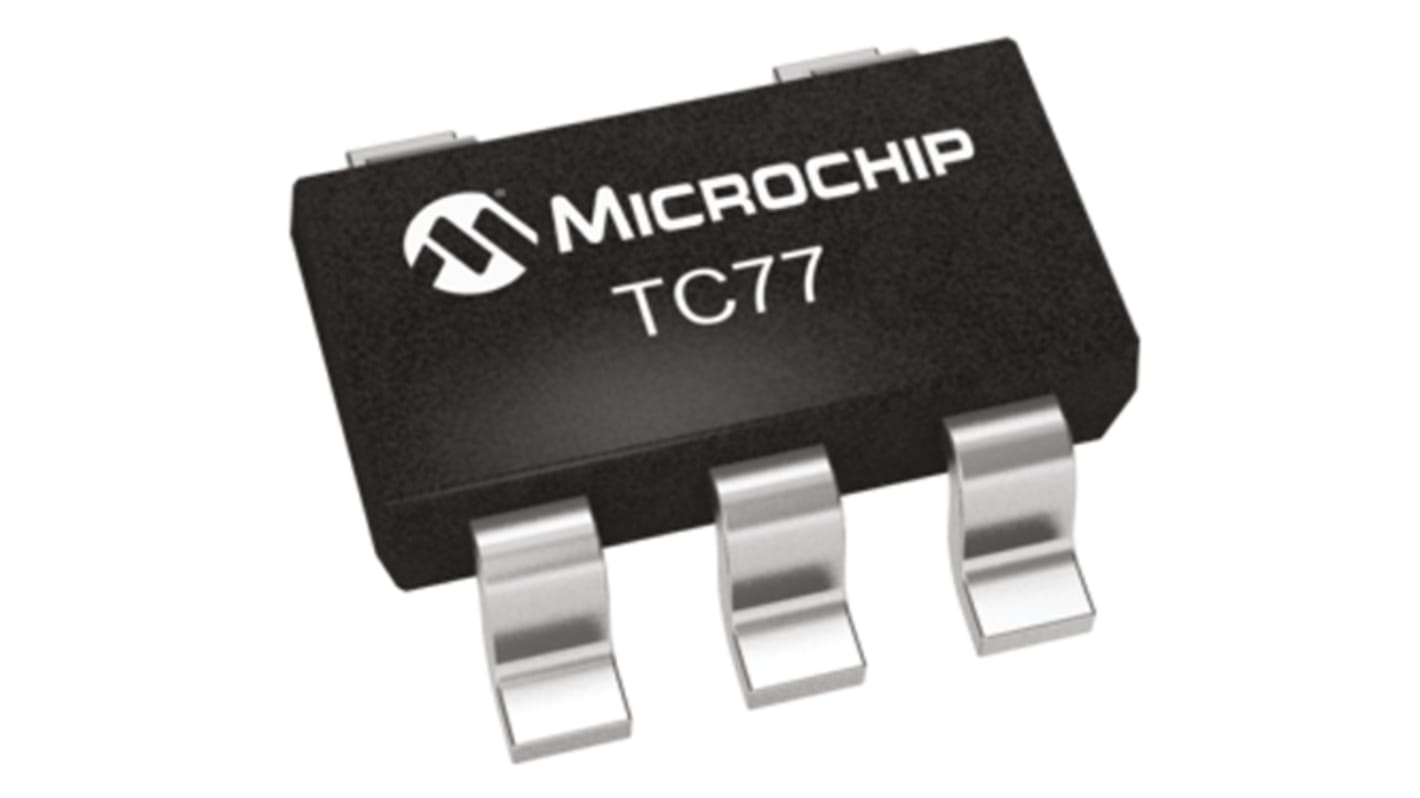

Microchip Temperature Sensor, Digital Output, Surface Mount, Serial-Microwire, Serial-SPI, ±3°C, 5 Pins
- RS-artikelnummer:
- 165-3404
- Tillv. art.nr:
- TC77-5.0MCTTR
- Tillverkare / varumärke:
- Microchip
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 3000)
6,643 kr
(exkl. moms)
8,304 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 3000 + | 6,643 kr | 19 929,00 kr |
- RS-artikelnummer:
- 165-3404
- Tillv. art.nr:
- TC77-5.0MCTTR
- Tillverkare / varumärke:
- Microchip
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TH
Produktdetaljer
TC77 Temperature Sensors
The TC77 series of temperature sensors are designed to convert temperature data from their internal thermal sensing element. The sensors are well-suited to small form-factor thermal management applications such as thermistor replacement, PC thermal protection, thermostat controls, industrial control, office equipment and mobile phones.
Features;
SPI and microwire interface
13-bit digital word output
Solid state temperature sensing
2.7 V to 5.5 V operating range
Temperature & Humidity Sensors, Microchip
Specifikationer
Attribute | Value |
|---|---|
| Sensor Function | Temperature |
| Output Type | Digital |
| Interface Type | Serial-Microwire, Serial-SPI |
| Accuracy | ±3°C |
| Mounting Type | Surface Mount |
| Pin Count | 5 |
| Minimum Operating Temperature | -55 °C |
| Operating Temperature Range | -55 to +125 °C |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Package Type | SOT-23 |
| Length | 3.1mm |
| Height | 1.3mm |
| Width | 1.75mm |
| Resolution | 13 bit |
| Dimensions | 3.1 x 1.75 x 1.3mm |
