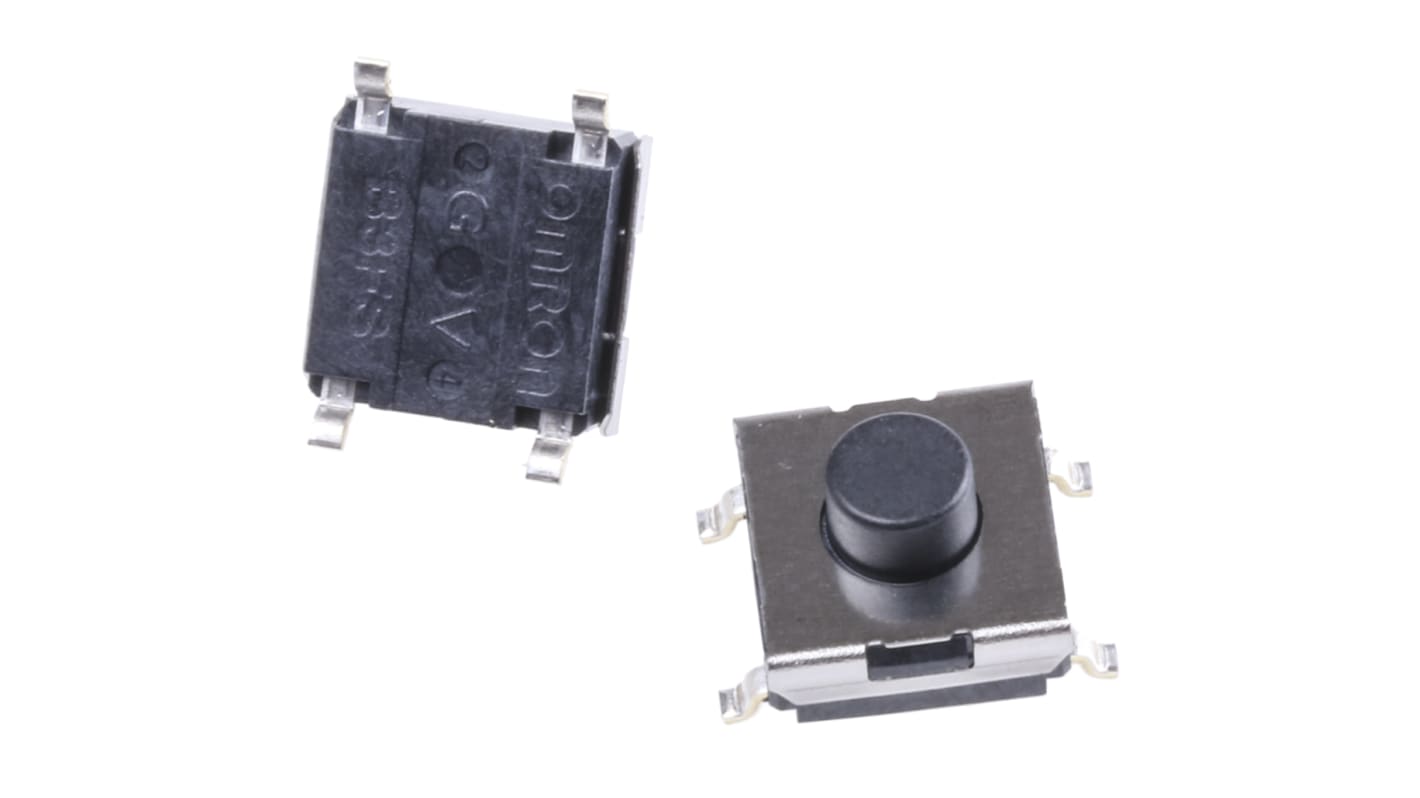

Black Plunger Tactile Switch, SPST 50 mA @ 24 V dc 1.7mm
- RS-artikelnummer:
- 794-4064
- Tillv. art.nr:
- B3FS-1010P
- Tillverkare / varumärke:
- Omron
70 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
4,792 kr
(exkl. moms)
5,99 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 45 | 4,792 kr | 23,96 kr |
| 50 - 245 | 3,326 kr | 16,63 kr |
| 250 - 495 | 2,472 kr | 12,36 kr |
| 500 - 1245 | 2,32 kr | 11,60 kr |
| 1250 + | 2,232 kr | 11,16 kr |
- RS-artikelnummer:
- 794-4064
- Tillv. art.nr:
- B3FS-1010P
- Tillverkare / varumärke:
- Omron
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Tactile Switches Omron B3FS
Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators
Positive click action plus a long life equal to that of a no-contact switch.
Note
Manufacturers part numbers with the P suffix are supplied on tape reel or strip and part numbers without the P suffix are bag quantity
Tactile
Specifikationer
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
| Actuator Length | 1.7mm |
| Actuator Colour | Black |
| Actuator Type | Plunger |
| Length | 6.3mm |
| Width | 6.3mm |
| Dimensions | 6.3 x 6.3mm |
| Illuminated | No |
| Contact Current Rating | 50 mA @ 24 V dc |
| Voltage Rating | 24V dc |
| Height | 4.3mm |
| Operating Force | 0.98 N |
| Operating Temperature Range | -25 → +70°C |
| Maximum Operating Temperature | +70°C |
| Mechanical Life | 1000000Operations |
| Minimum Operating Temperature | -25°C |
