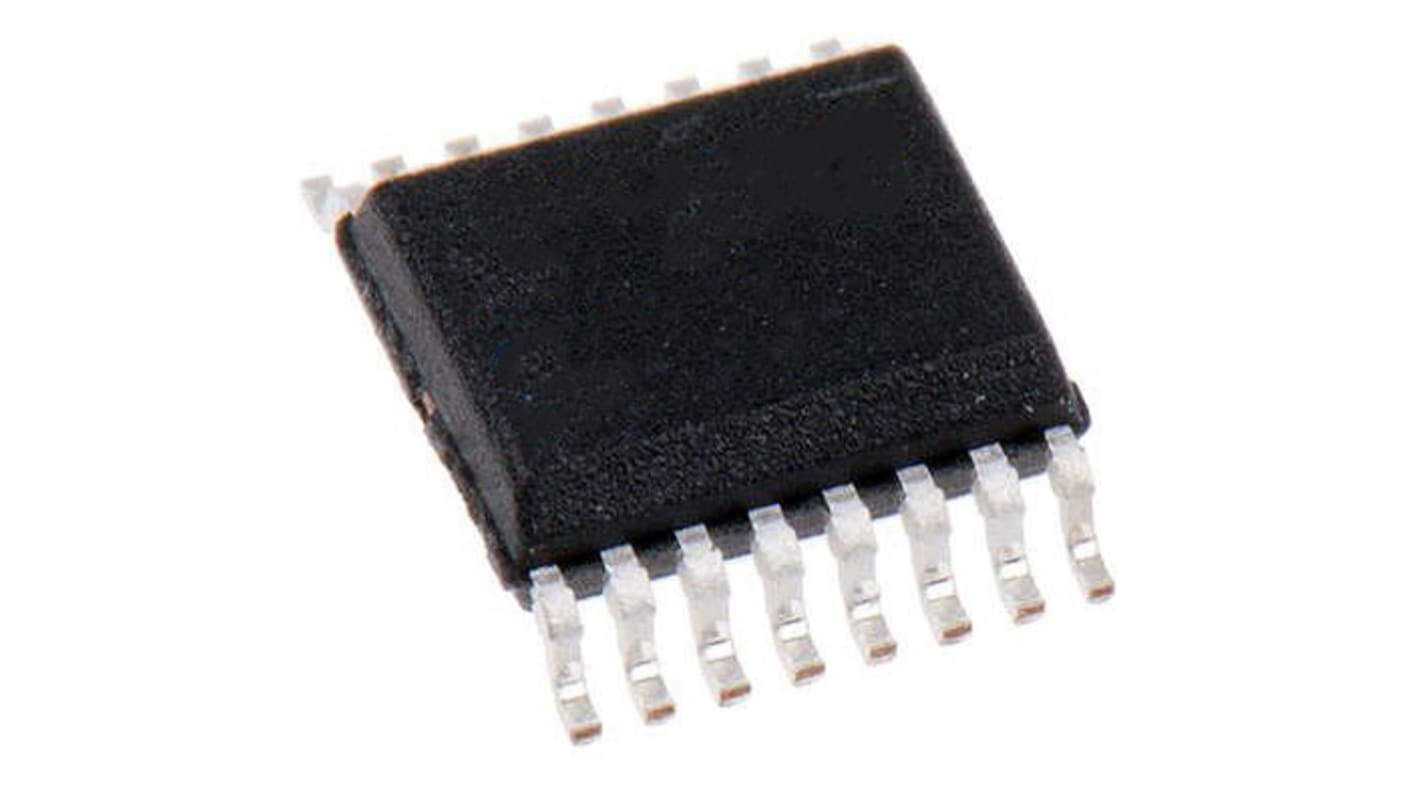

Maxim Integrated Switching Regulator, Surface Mount, 3.3 → 3.36V dc Output Voltage, 3 → 5.5V dc Input
- RS-artikelnummer:
- 190-8116P
- Tillv. art.nr:
- MAX1644EAE+
- Tillverkare / varumärke:
- Maxim Integrated
24 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje (levereras i ett rör)
121,66 kr
(exkl. moms)
152,08 kr
(inkl. moms)
| Enheter | Per unit |
| 10 - 24 | 121,66 kr |
| 25 + | 104,80 kr |
- RS-artikelnummer:
- 190-8116P
- Tillv. art.nr:
- MAX1644EAE+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
±1% Output Accuracy
95% Efficiency
Internal PMOS and NMOS Switches
70mΩ On-Resistance at VIN = +4.5V
100mΩ On-Resistance at VIN = +3V
Output Voltage
+3.3V or +2.5V Pin-Selectable
+1.1V to VIN Adjustable
+3V to +5.5V Input Voltage Range
360μA (max) Operating Supply Current
< 1μA Shutdown Supply Current
Programmable Constant-Off-Time Operation
350kHz (max) Switching Frequency
Idle Mode Operation at Light Loads
Thermal Shutdown
Adjustable Soft-Start Inrush Current Limiting
100% Duty Cycle During Low-Dropout Operation
Output Short-Circuit Protection
16-Pin SSOP Package
Applications
+3.3V PC Card and CardBus Applications
+5V to +3.3V/+2.5V Conversion
CPU Daughter Card Supply
CPU I/O Supplies
Desktop Bus-Termination Boards
Notebook and Subnotebook Computers
95% Efficiency
Internal PMOS and NMOS Switches
70mΩ On-Resistance at VIN = +4.5V
100mΩ On-Resistance at VIN = +3V
Output Voltage
+3.3V or +2.5V Pin-Selectable
+1.1V to VIN Adjustable
+3V to +5.5V Input Voltage Range
360μA (max) Operating Supply Current
< 1μA Shutdown Supply Current
Programmable Constant-Off-Time Operation
350kHz (max) Switching Frequency
Idle Mode Operation at Light Loads
Thermal Shutdown
Adjustable Soft-Start Inrush Current Limiting
100% Duty Cycle During Low-Dropout Operation
Output Short-Circuit Protection
16-Pin SSOP Package
Applications
+3.3V PC Card and CardBus Applications
+5V to +3.3V/+2.5V Conversion
CPU Daughter Card Supply
CPU I/O Supplies
Desktop Bus-Termination Boards
Notebook and Subnotebook Computers
Specifikationer
Attribute | Value |
|---|---|
| Output Voltage | 3.3 → 3.36V dc |
| Output Current | 2.5A |
| Input Voltage | 3 → 5.5V dc |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Efficiency | 95% |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
| Load Regulation | 1mV |
| Switching Frequency Range | 350kHz |
| Depth | 1.78mm |
| Power Signal Conversion Type | DC-DC |
| Protection Features | Thermal Shutdown |
| Application | +3.3V PC Card and CardBus Applications, +5V to +3.3V/+2.5V Conversion, CPU Daughter Card Supply, CPU I/O Supply, Desktop Bus-Termination Boards, Notebook and Subnotebook Computers |
| Width | 5.38mm |
| Maximum Input Current | 6.5µA |
| Length | 6.33mm |
