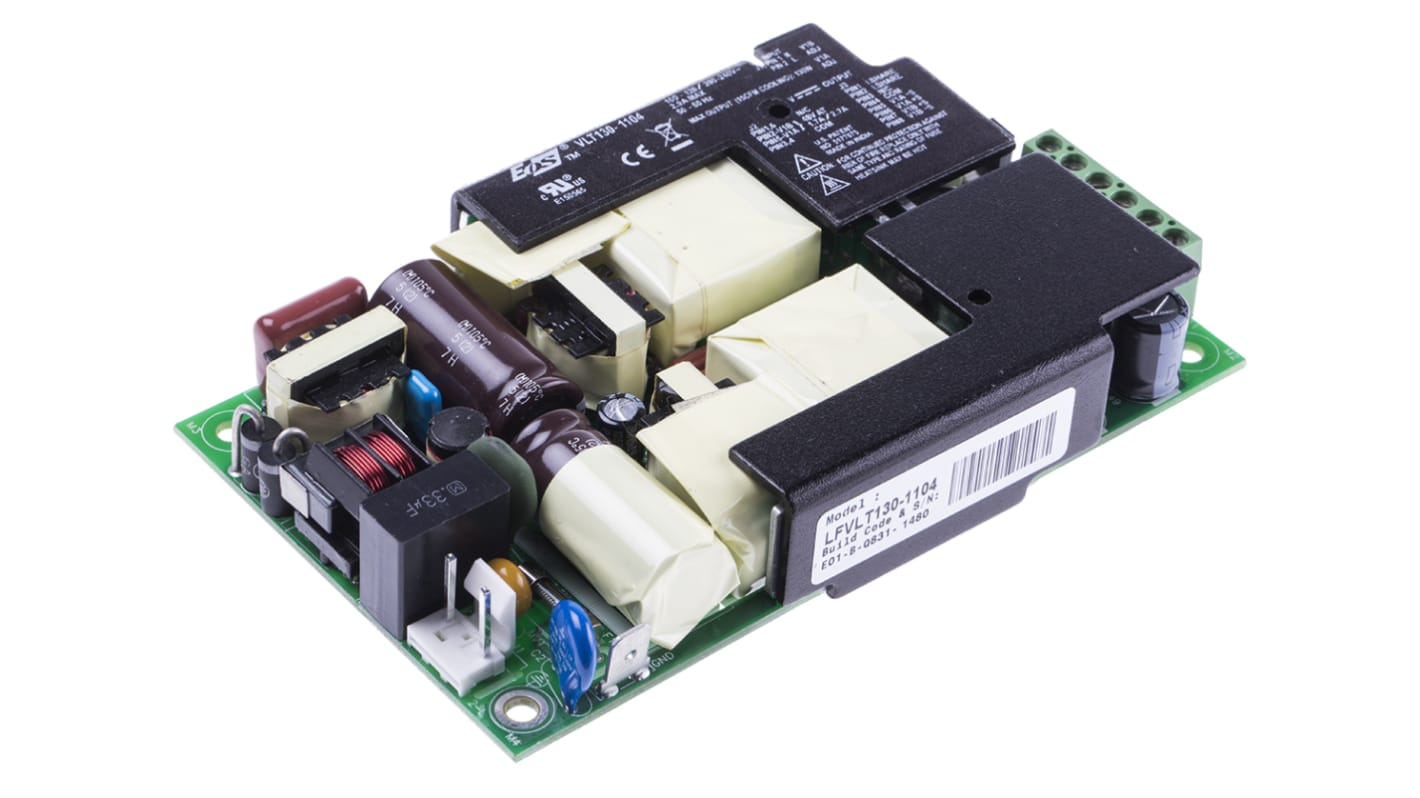

EOS Switching Power Supply, LFVLT130-1104, 48V dc, 1.7A, 130W, 1 Output, 180 → 264 V ac, 90 → 132 V ac
- RS-artikelnummer:
- 666-7640
- Tillv. art.nr:
- LFVLT130-1104
- Tillverkare / varumärke:
- EOS
22 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
2 376,30 kr
(exkl. moms)
2 970,38 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 2 376,30 kr |
| 5 - 9 | 2 257,47 kr |
| 10 - 24 | 2 138,66 kr |
| 25 - 49 | 2 019,85 kr |
| 50 + | 1 901,04 kr |
- RS-artikelnummer:
- 666-7640
- Tillv. art.nr:
- LFVLT130-1104
- Tillverkare / varumärke:
- EOS
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IN
Produktdetaljer
40W to 130W Universal Input, Single/Multi Output VLT Series
Note
Connectors are not supplied.
VLT130 current rating with Fan (180LFM). Power rating with forced airflow, requires user supplied 15CFM fan.
VLT130 current rating with Fan (180LFM). Power rating with forced airflow, requires user supplied 15CFM fan.
Standards
IEC950, EN60950, UL1950
Approvals
VDE; UL Recognised Component
Specifikationer
Attribute | Value |
|---|---|
| Output Voltage | 48V dc |
| Output Current | 1.7A |
| Power Rating | 130W |
| Number of Outputs | 1 |
| Input Voltage | 180 → 264 V ac, 90 → 132 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 127mm |
| Width | 79.76mm |
| Depth | 26.04mm |
| Efficiency | 82% |
| Minimum Temperature | 0°C |
| Weight | 340g |
| Maximum Temperature | +50°C |
