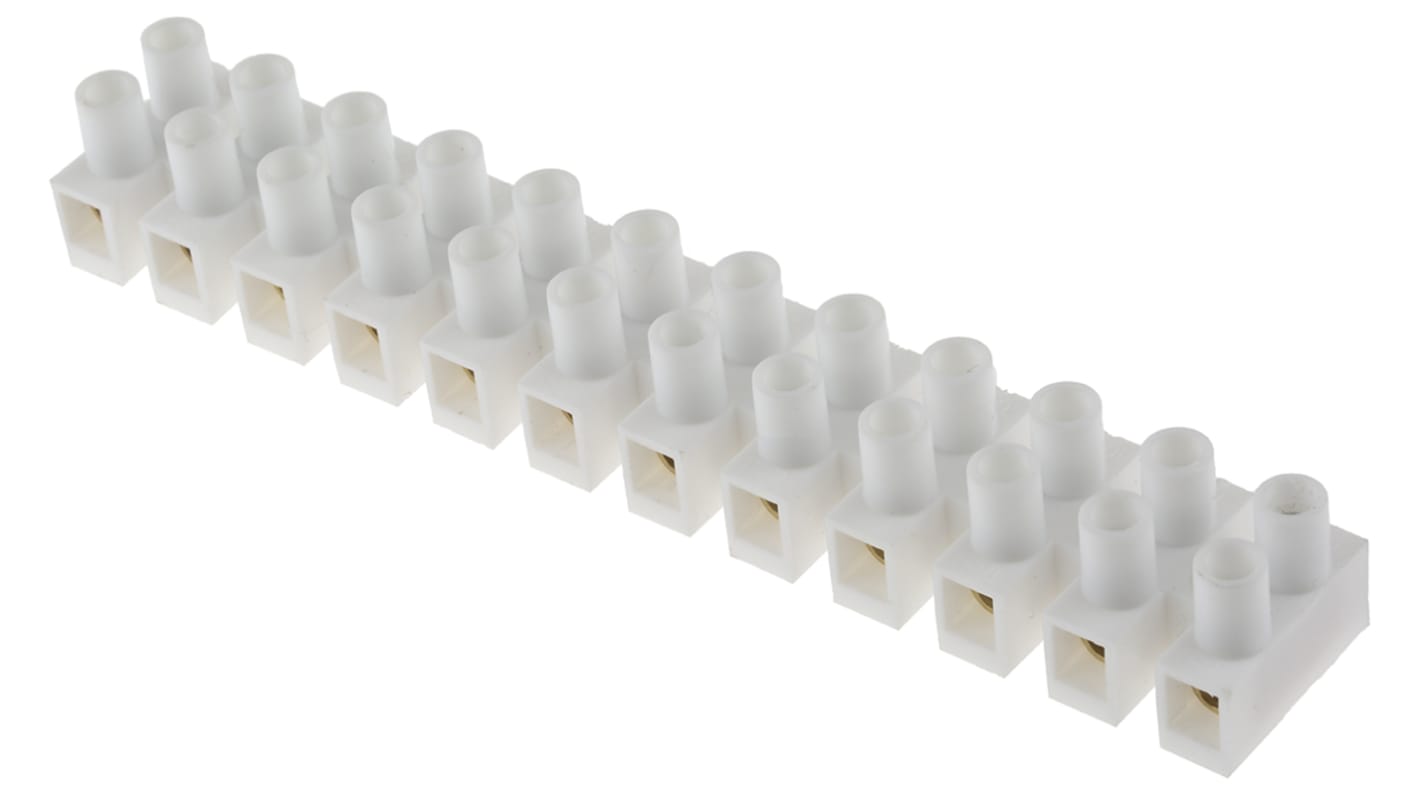

RS PRO, 12 Way, 10 AWG, PP Non-Fused Terminal Block, 380 V

  • RS-artikelnummer 703-3827
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

RS PRO Polypropylene Non-Fused Terminal Block

From RS PRO, this non-fused terminal block presents a reliable and cost-effective solution to wire-to-wire connections. This polypropylene terminal block has the advantages of being lightweight and rigid, with resistance to corrosion and high tensile strength. It also features raised screw down terminals for ease of wiring.

With screw-on terminals, a secure and efficient connection is assured.

Features and Benefits

• Non-fused terminal block
• Lightweight body
• Easy wiring installation
• Recessed housing for safety
• Brass contacts

Applications

Modular terminal connectors have a wide range of applications and are a common component in electrical installations of all kinds, both domestic and industrial. The simplicity of their screw-down termination means they are particularly well suited to semi-permanent installations.

Whether for device connection to printed circuit boards or for wire-to-wire extensions, terminal blocks provide a straight forward and dependable connection solution. These non-fused terminal blocks are often used in;

• Connecting lighting to switches
• Connecting wiring to a ground
• HVAC Systems
• Power Supplies

FAQs

Q: Are these terminal blocks suitable for all environments?
A: Though terminal blocks are highly versatile, they are not the most secure of connectors, and may not be suitable for high vibration environments or applications where impact shock is a possibility.

Why RS PRO?

RS PRO strives to give you reliable parts at competitive prices. With in-house experts testing all of our RS PRO branded products, we're confident we'll satisfy your demand for quality and dependability.

RS PRO has an extensive range of electrical connector components. Whether you're operating in an industrial environment or domestic maintenance, RS PRO is with you every step of the way.

Features and Benefits

High Tensile Strength
Easy wiring installation
Recessed housing for safety

Standards

CE (BS EN 60998)

Specifikationer
Attribute Value
Number of Ways 12
Fused No
Pitch 12mm
Current Rating 20A
Termination Method Screw Down
Cable CSA 6mm²
Wire Size 10 AWG
Colour White
Voltage Rating 380 V
Material PP
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Contact Material Brass
2935 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 5)
42,88 kr
(exkl. moms)
53,60 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
5 - 45
42,88 kr
214,40 kr
50 +
38,598 kr
192,99 kr
