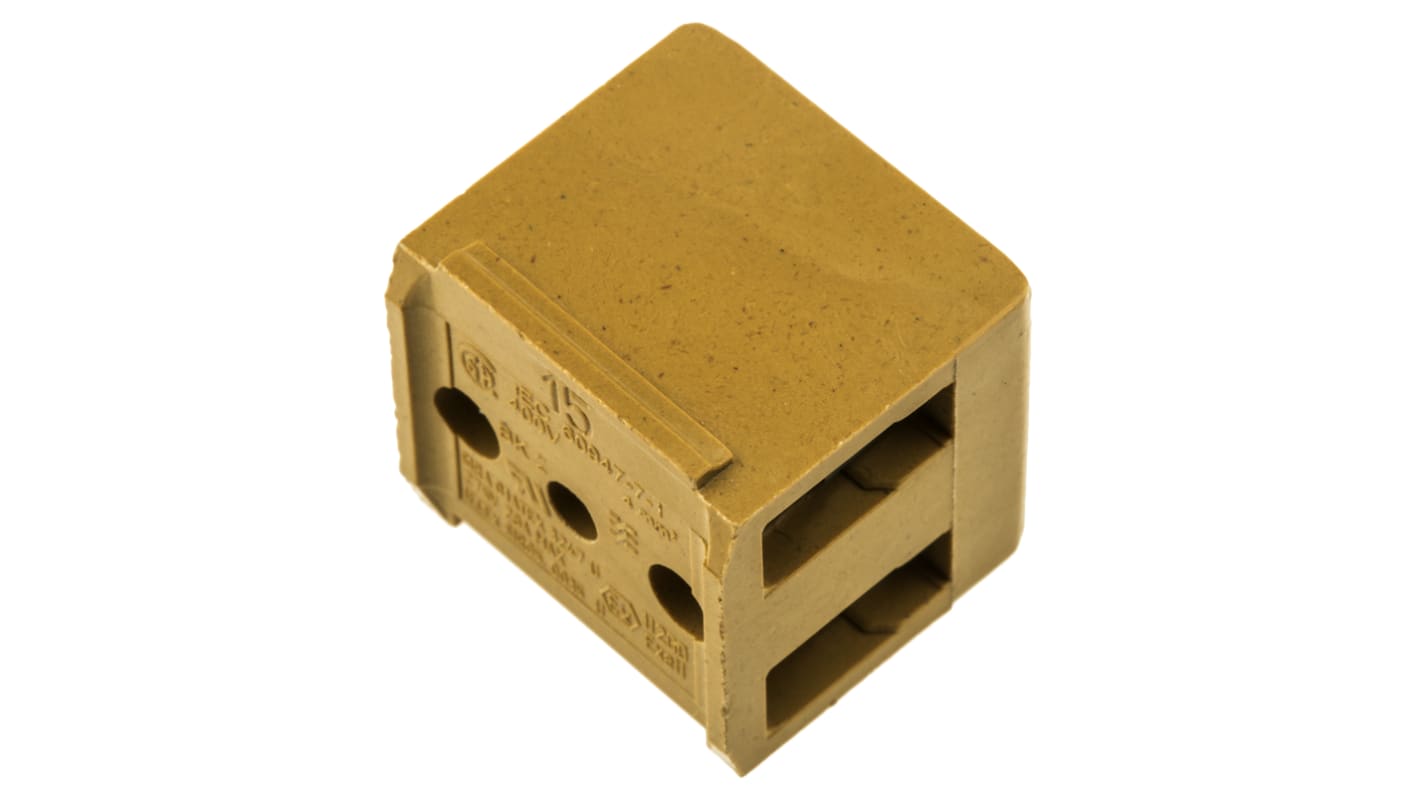

Weidmüller SAK Series Non-Fused Terminal Block, 2-Way, 32A, 22 → 12 AWG Wire, Screw Termination
- RS-artikelnummer:
- 489-5199
- Tillv. art.nr:
- 7906040000
- Tillverkare / varumärke:
- Weidmüller
75 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
36,23 kr
(exkl. moms)
45,29 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 + | 36,23 kr | 181,15 kr |
- RS-artikelnummer:
- 489-5199
- Tillv. art.nr:
- 7906040000
- Tillverkare / varumärke:
- Weidmüller
Lagstiftning och ursprungsland
Produktdetaljer
BK Series
Terminal blocks moulded in high grade melamine. The terminals feature clamping yoke technology that makes planning easier and optimises operational safety.
Features and Benefits
• Each through termination is rated at 21 A/275 V
• Accepts both stranded and solid conductors 0.5 mm to 4 mm
• Screw connection
• Recommended insulation stripping length 8 mm
• Accepts both stranded and solid conductors 0.5 mm to 4 mm
• Screw connection
• Recommended insulation stripping length 8 mm
Note
All blocks are 22 wide and 20 high, with 3.4Ø fixing holes.
Group and Category
II 2 GD EEx e II
Certificate No.
Sira 01ATEX 3247U
Approvals
BAS 99ATEX3084U
Specifikationer
Attribute | Value |
|---|---|
| Number of Ways | 2 |
| Current Rating | 32A |
| Wire Size | 22 → 12 AWG |
| Termination Method | Screw |
| Mounting Type | Screw |
| Fused | No |
| Material | Melamine |
| Voltage Rating | 400 V |
| Minimum Operating Temperature | -60°C |
| Colour | Beige |
| Series | SAK |
| Maximum Operating Temperature | +130°C |
| Contact Material | Brass, Stainless Steel |
| Hazardous Area Certification | ATEX |
| Contact Plating | Nickel |
