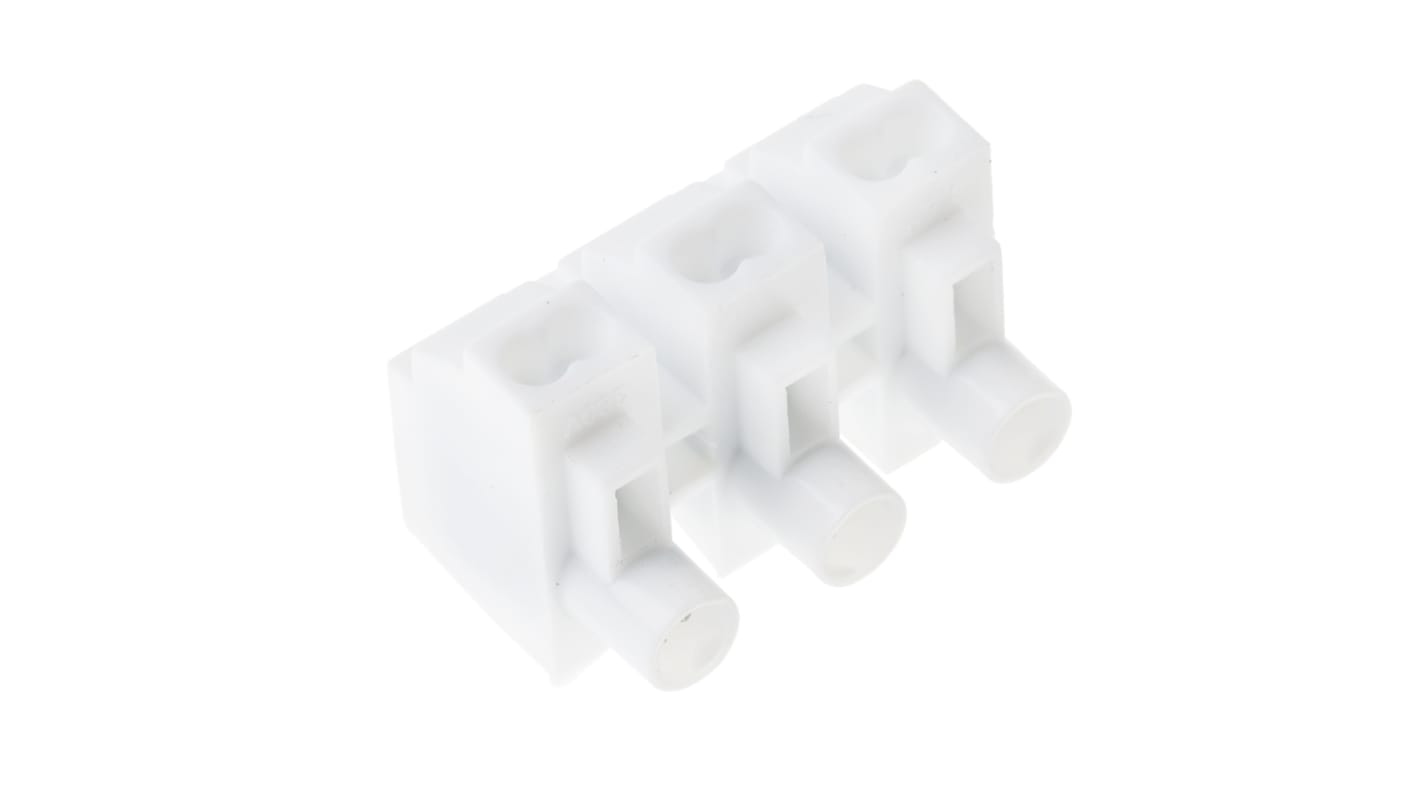

RS PRO Terminal Block Connector, 3-Way, 6A, 14 AWG Wire, Push In Termination
- RS-artikelnummer:
- 136-7889
- Tillverkare / varumärke:
- RS PRO
470 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
6,63 kr
(exkl. moms)
8,29 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 90 | 6,63 kr | 66,30 kr |
| 100 - 490 | 6,597 kr | 65,97 kr |
| 500 - 1990 | 6,52 kr | 65,20 kr |
| 2000 + | 6,444 kr | 64,44 kr |
- RS-artikelnummer:
- 136-7889
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
For use in luminaires and appliances where the screw down terminal side is used to connect internally and the push wire connections are used to connect to the incoming supply.
Quick wiring connection
Flame retardant
All screws are captive and raised for easy wiring
Flame retardant
All screws are captive and raised for easy wiring
Specifikationer
Attribute | Value |
|---|---|
| Number of Ways | 3 |
| Current Rating | 6A |
| Wire Size | 14 AWG |
| Termination Method | Push In |
| Mounting Type | Screw |
| Fused | No |
| Material | Polyamide |
| Pitch | 10mm |
| Voltage Rating | 380 V |
| Cable CSA | 2.5 → 6mm² |
| Colour | White |
| Minimum Operating Temperature | -40°C |
| Series | CSP |
| Maximum Operating Temperature | +110°C |
| Enclosed | Yes |
| Contact Material | Steel |
| Contact Plating | Zinc |
