- RS-artikelnummer:
- 170-2191
- Tillv. art.nr:
- IS62WV51216BLL-55BLI
- Tillverkare / varumärke:
- ISSI
Tillfälligt slut i lager – restorder för leverans 2024-09-20
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 312)
70,224 kr
(exkl. moms)
87,78 kr
(inkl. moms)
Enheter | Per unit | Per Tray* |
312 - 624 | 70,224 kr | 21 909,888 kr |
936 - 1248 | 68,325 kr | 21 317,40 kr |
1560 - 2808 | 66,528 kr | 20 756,736 kr |
3120 - 7488 | 64,822 kr | 20 224,464 kr |
7800 + | 63,201 kr | 19 718,712 kr |
- RS-artikelnummer:
- 170-2191
- Tillv. art.nr:
- IS62WV51216BLL-55BLI
- Tillverkare / varumärke:
- ISSI
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

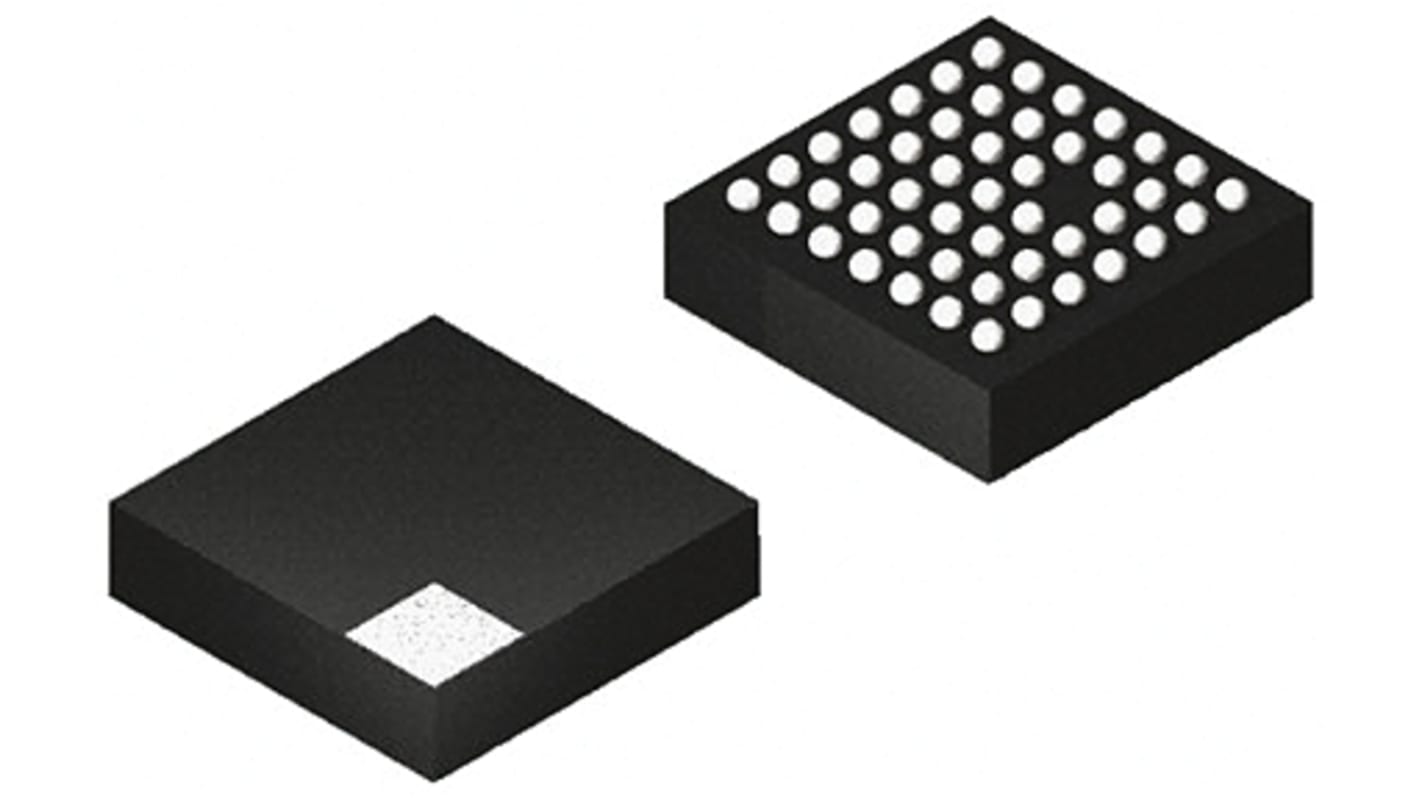

Static RAM, ISSI
The ISSI Static RAM products use high performing CMOS technology. There is a broad range of static RAMs which include the 5V high-speed asynchronous SRAM, high-speed low power asynchronous SRAM, 5V low power types asynchronous SRAMs, ultra-low power CMOS Static RAM and PowerSaverTM lower power asynchronous SRAMs. The ISSI SRAM devices come in a variety of voltages, memory size and different organisations. They are suitable in applications such as CPU cache memory, embedded processors, hard drive, and switches to industrial electronics.
Power supply: 1.8V/3.3V/5V
Packages available: BGA, SOJ, SOP, sTSOP, TSOP
Configuration choice available: x8 and x16
ECC feature available for High Speed Asynchronous SRAMs
Packages available: BGA, SOJ, SOP, sTSOP, TSOP
Configuration choice available: x8 and x16
ECC feature available for High Speed Asynchronous SRAMs
SRAM (Static Random Access Memory)
Specifikationer
Attribute | Value |
---|---|
Memory Size | 8Mbit |
Organisation | 512k x 16 bit |
Number of Words | 512k |
Number of Bits per Word | 16bit |
Maximum Random Access Time | 55ns |
Address Bus Width | 19bit |
Low Power | Yes |
Timing Type | Asynchronous |
Mounting Type | Surface Mount |
Package Type | BGA |
Pin Count | 48 |
Dimensions | 8.8 x 7.3 x 0.9mm |
Height | 0.9mm |
Maximum Operating Supply Voltage | 3.6 V |
Minimum Operating Supply Voltage | 2.5 V |
Length | 8.8mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Width | 7.3mm |
