- RS-artikelnummer:
- 184-5770
- Tillv. art.nr:
- TSS60
- Tillverkare / varumärke:
- Tsubaki
6 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
4 269,16 kr
(exkl. moms)
5 336,45 kr
(inkl. moms)
Enheter | Per unit |
1 + | 4 269,16 kr |
- RS-artikelnummer:
- 184-5770
- Tillv. art.nr:
- TSS60
- Tillverkare / varumärke:
- Tsubaki
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- JP
Produktdetaljer

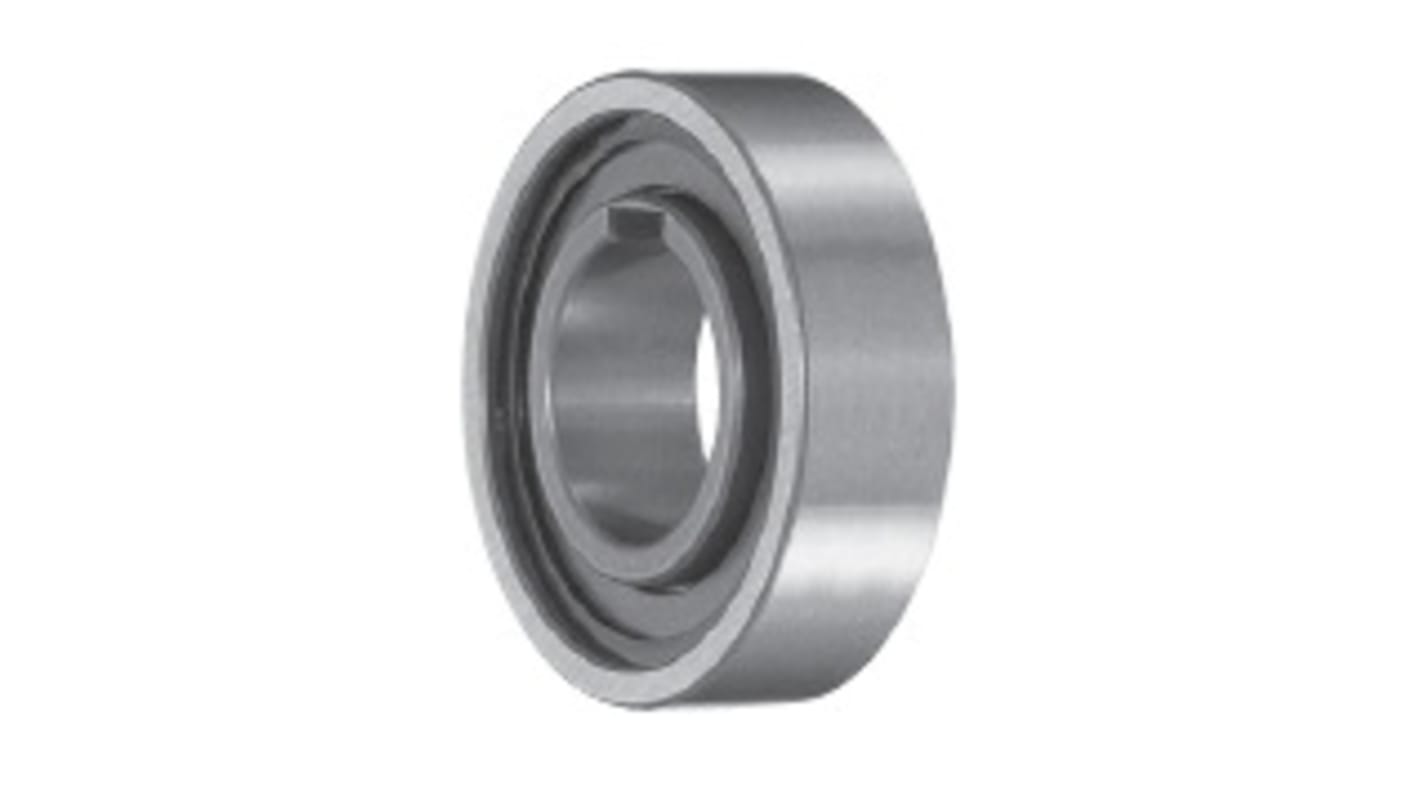

TSS Series Cam Clutch is designed for press fit installation with outside dimensions the same as the 62 Series ball bearing. As a sprag clutch, higher torque capacities are often higher than a similar ramp & roller design. This design provides easy handling and installation, most often with a Series 62 ball bearing located next to the TSS Cam Clutch. The TSS Series is ideal for applications that require high speed inner race overrunning in a very compact package. This series ships pre-lubricated with oil.
Specifikationer
Attribute | Value |
---|---|
Inside Diameter | 60mm |
Outside Diameter | 110mm |
Torque | 649Nm |
Race Width | 22mm |
Series | TSS |
Over-running Speed | 460 (Outer Race) RPM, 910 (Inner Race) RPM |
Keyway | Inner Race |
