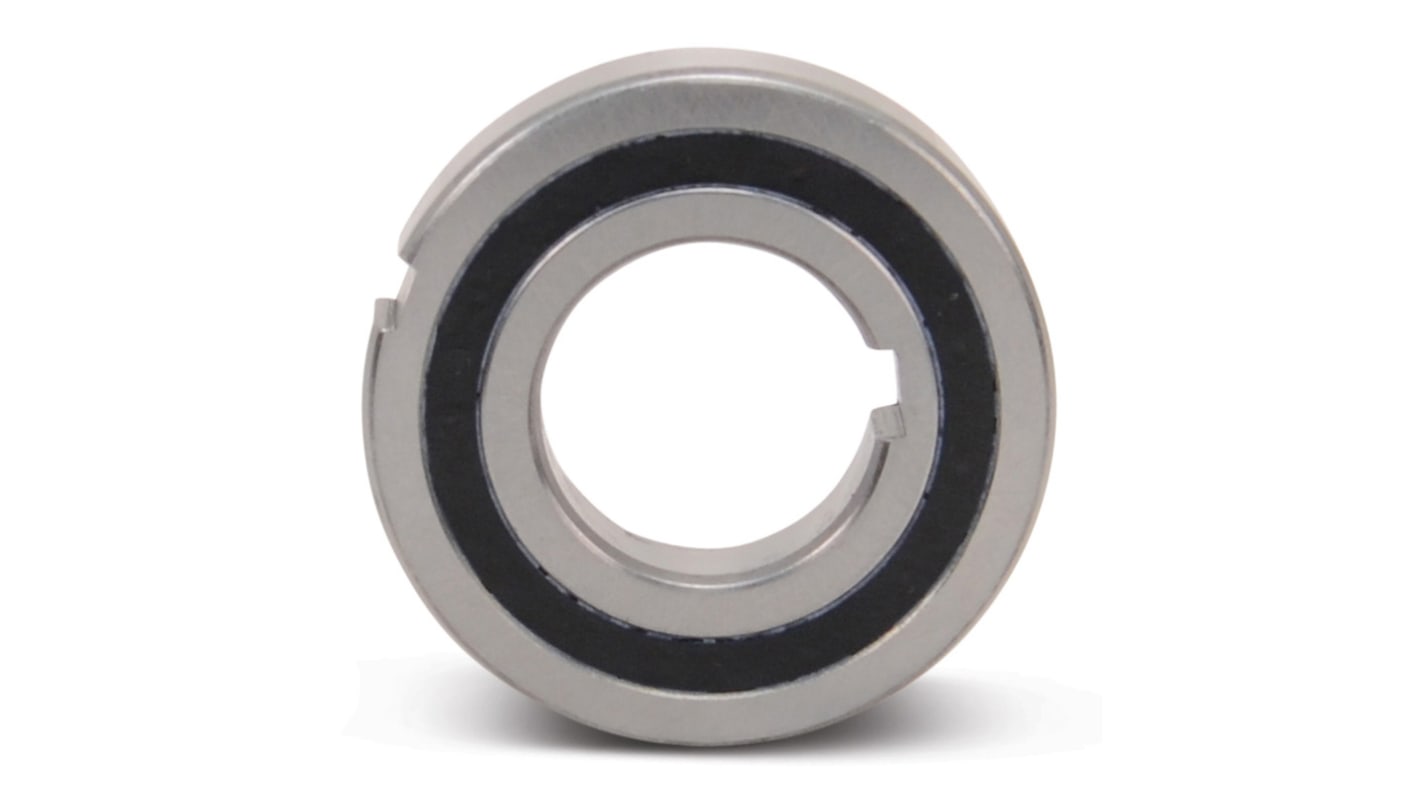

Stieber CSK 40-PP Sprag Clutch Bearing 40mm I.D., 80mm O.D., 22mm Race Width
- RS-artikelnummer:
- 146-5257
- Tillv. art.nr:
- CSK 40-PP
- Tillverkare / varumärke:
- Stieber
2 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
2 230,78 kr
(exkl. moms)
2 788,48 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 2 230,78 kr |
| 5 + | 2 141,61 kr |
- RS-artikelnummer:
- 146-5257
- Tillv. art.nr:
- CSK 40-PP
- Tillverkare / varumärke:
- Stieber
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
Produktdetaljer
Types CSK..P and CSK..PP are sprag type freewheels integrated into 62.. series ball bearings (except size 40). They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional “nylos” type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
Specifikationer
Attribute | Value |
|---|---|
| Inside Diameter | 40mm |
| Outside Diameter | 80mm |
| Torque | 325Nm |
| Race Width | 22mm |
| Series | 62 |
| Over-running Speed | 3000rpm |
| Dynamic Load Rating | 15.54kN |
| Static Load Rating | 12.25kN |
| Keyway | Inner and Outer Race |
| Drag Torque | 7Ncm |
