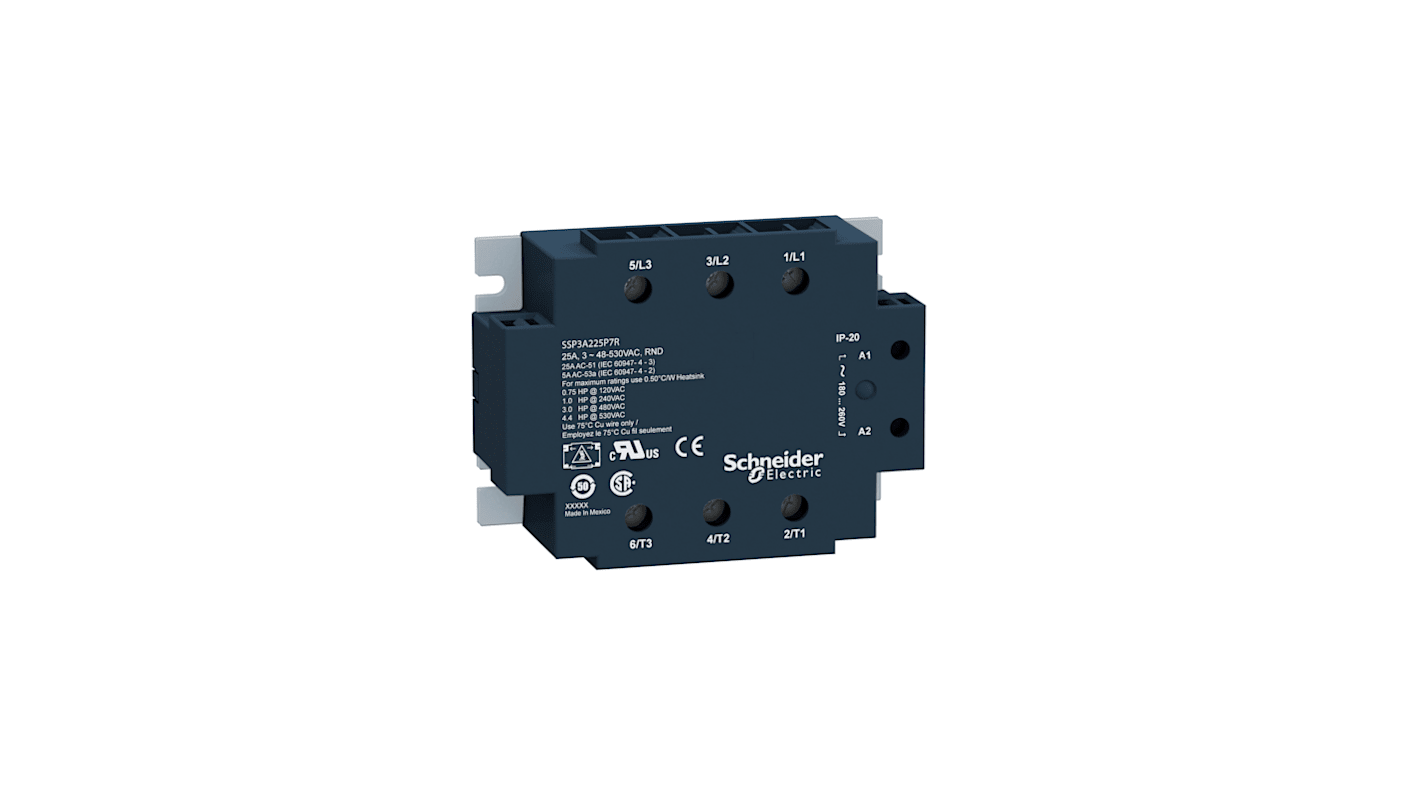

Schneider Electric Harmony Relay Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 36 V ac Control
- RS-artikelnummer:
- 922-2050
- Tillv. art.nr:
- SSP3A250B7R
- Tillverkare / varumärke:
- Schneider Electric
Tillfälligt slut i lager – restorder för leverans 2024-06-04
Lagt till varukorgen
Pris (ex. moms) Varje
2 957,52 kr
(exkl. moms)
3 696,90 kr
(inkl. moms)
Enheter | Per unit |
1 + | 2 957,52 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 922-2050
- Tillv. art.nr:
- SSP3A250B7R
- Tillverkare / varumärke:
- Schneider Electric
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MX
Produktdetaljer
Zelio SSP3 Solid State Power Relays
Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The SSP Series panel mount relays that offer complete solid-state control and switching solutions. SSP relays offer zero voltage switching for resistive loads and random switching for inductive loads. With single phase and 3 phase options and current ratings ranging from 6 A to 55 A.
Easy maintenance
High switching frequency
Resistance to shock, vibration and contamination
Long life span
High switching frequency
Resistance to shock, vibration and contamination
Long life span
Schneider Solid State Relays
Specifikationer
Attribute | Value |
---|---|
Maximum Load Current | 50 A |
Mounting Type | Panel Mount |
Maximum Load Voltage | 530 V ac |
Minimum Load Voltage | 48 V ac |
Maximum Control Voltage | 36 V ac |
Minimum Control Voltage | 18 V ac |
Switching Type | Zero Cross |
Control Voltage Range | 18 → 36 V ac |
Minimum Load Current | 0.1 A |
Number of Poles | 3 |
Contact Configuration | 3P-NO |
Terminal Type | Screw |
Output Device | SCR |
Relay Type | Three Channel Three Phase |
Series | Harmony Relay |
Maximum Turn On Time | 20ms |
Load Voltage Range | 48 → 530V ac |
Better World Product | Yes |
Better World Verification | Green Premium |
Dimensions | 101.3 x 97.8 x 35.5mm |
Depth | 97.8mm |
Operating Temperature Range | -40 → +80°C |
Special Features | For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually |
Standards Met | CE, CSA, UL |
Capacitance | 8pF |
Height | 35.5mm |
Off State Leakage Current | 3 mA |
Length | 101.3mm |
