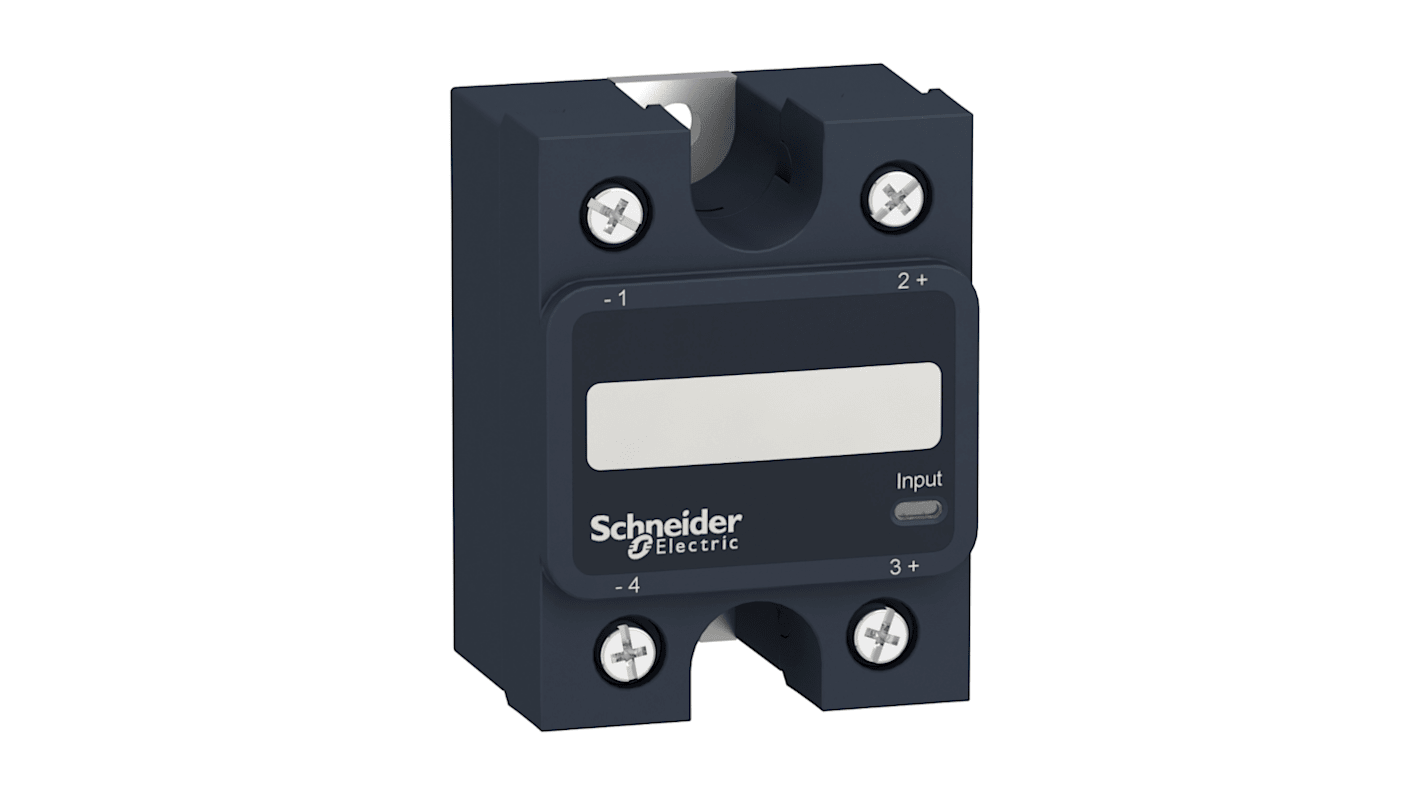

Schneider Electric Harmony Relay Series Solid State Relay, 12 A Load, Panel Mount, 150 V dc Load, 32 V dc Control
- RS-artikelnummer:
- 904-5768
- Tillv. art.nr:
- SSP1D412BDT
- Tillverkare / varumärke:
- Schneider Electric
33 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
653,12 kr
(exkl. moms)
816,40 kr
(inkl. moms)
Enheter | Per unit |
1 + | 653,12 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 904-5768
- Tillv. art.nr:
- SSP1D412BDT
- Tillverkare / varumärke:
- Schneider Electric
Lagstiftning och ursprungsland
- COO (Country of Origin):
- MX
Produktdetaljer
Schneider Electric Solid State Relay, SPNO Configuration, DC Switching Type - Zelio Relay Series - SSP1D412BDT
Use this solid state relay from Schneider Electric to lower or raise your input current requirement. This reduces power consumption, making it an energy-efficient option. A rapid switching frequency of 0.1ms allows precision control of your system. Thanks to its solid state construction, the unit offers a reliably long service life as it has no moving parts and suffers minimal wear and tear. Its connections use the screw terminal method to offer physically and electrically secure contacts. For straightforward integration into your equipment, this relay is panel-mounted.
Features & Benefits
• Green LED indicator light provides quick and simple status information
• IP20 rating indicates it's touchproof for added user safety
• Built-in heatsink helps maintain a safe operating temperature without the need for external cooling
• Light weight of 89.2g minimises strain on the mounting surface
• IP20 rating indicates it's touchproof for added user safety
• Built-in heatsink helps maintain a safe operating temperature without the need for external cooling
• Light weight of 89.2g minimises strain on the mounting surface
Applications
• HVAC systems
• Injection moulding machines
• Packaging equipment
• Injection moulding machines
• Packaging equipment
Is this relay suitable for use in harsh conditions?
Yes, resistance to shocks and vibration, as well as a wide operating temperature range of -40°C to +80°C, means this relay can withstand the demands of challenging industrial environments.
DC Switching
Specifikationer
Attribute | Value |
---|---|
Maximum Load Current | 12 A |
Mounting Type | Panel Mount |
Maximum Load Voltage | 150 V dc |
Minimum Load Voltage | 1 V dc |
Minimum Control Voltage | 3.5 V dc |
Maximum Control Voltage | 32 V dc |
Switching Type | DC |
Control Voltage Range | 3.5 → 32 V dc |
Minimum Load Current | 0 A |
Number of Poles | 1 |
Contact Configuration | SPST |
Terminal Type | Screw |
Output Device | MOSFET |
Relay Type | Solid State Relay |
Maximum Turn On Time | 0.1ms |
Load Voltage Range | 1 → 150V dc |
Series | Harmony Relay |
Better World Product | Yes |
Dimensions | 44.45 x 34.29 x 58.89mm |
Better World Verification | Green Premium |
Depth | 34.3mm |
Capacitance | 50pF |
Height | 58.9mm |
Standards Met | CE, CSA, EAC, EN/IEC, REACH, UL |
Off State Leakage Current | <= 1 mA |
Length | 44.5mm |
Operating Temperature Range | -40 → +80°C |
Special Features | Green LED for Input Visualization |
