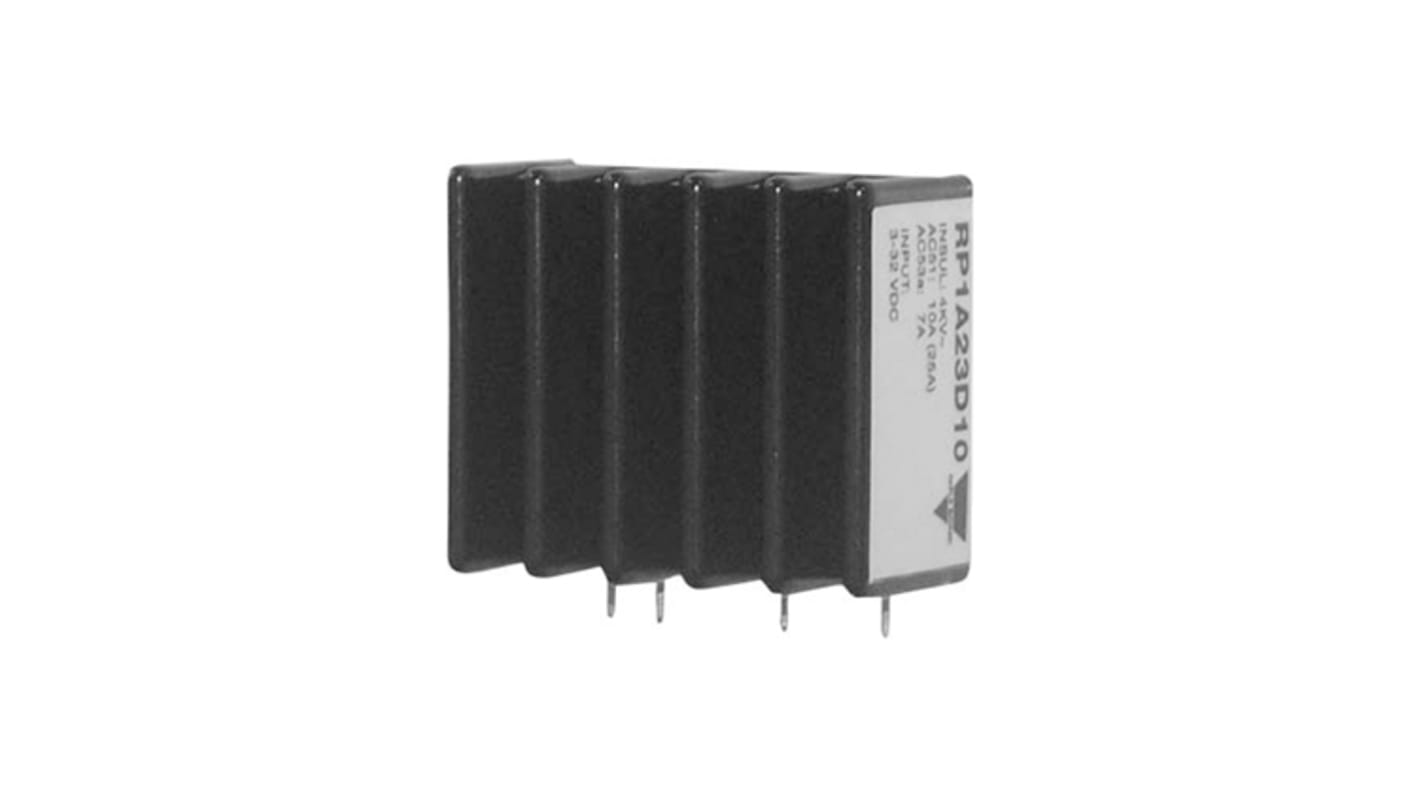

Carlo Gavazzi RP1 D10 Series Solid State Relay, 10 A Load, PCB Mount, 265 V ac Load, 32 V dc Control
- RS-artikelnummer:
- 857-2742
- Tillv. art.nr:
- RP1A23D10
- Tillverkare / varumärke:
- Carlo Gavazzi
10 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
298,66 kr
(exkl. moms)
373,32 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 298,66 kr |
| 5 - 9 | 289,69 kr |
| 10 + | 277,44 kr |
- RS-artikelnummer:
- 857-2742
- Tillv. art.nr:
- RP1A23D10
- Tillverkare / varumärke:
- Carlo Gavazzi
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Carlo Gavazzi Analog Switching Solid State Relay
The analog switching solid state relay from Carlo Gavazzi works in accordance with the phase angle control principle
Integral snubber network
Up to 600 AACrms operational voltage
Phase-angle control analog switching designed for use within resistive & slightly inductive loads
Up to 600 AACrms operational voltage
Phase-angle control analog switching designed for use within resistive & slightly inductive loads
Analog Switching
Specifikationer
Attribute | Value |
|---|---|
| Maximum Load Current | 10 A |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 265 V ac |
| Minimum Load Voltage | 12 V ac |
| Maximum Control Voltage | 32 V dc |
| Minimum Control Voltage | 3 V dc |
| Switching Type | AC |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 10 mA |
| Number of Poles | 1 |
| Terminal Type | PCB Pin |
| Relay Type | Single Phase |
| Series | RP1 D10 |
| Maximum Turn On Time | 1 s |
| Load Voltage Range | 12 → 265V ac |
| Dimensions | 43 x 22 x 37mm |
| Minimum Operating Temperature | -30°C |
| Length | 43mm |
| Height | 37mm |
| Operating Temperature Range | -30 → +80°C |
| Off State Leakage Current | 3 mA |
| Maximum Operating Temperature | +80°C |
| Special Features | Heat Sinked |
| Depth | 22mm |
