- RS-artikelnummer:
- 741-8685
- Tillv. art.nr:
- AZM 170-02ZRKA 24 VAC/DC
- Tillverkare / varumärke:
- Schmersal
70 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
3 257,49 kr
(exkl. moms)
4 071,86 kr
(inkl. moms)
Enheter | Per unit |
1 + | 3 257,49 kr |
- RS-artikelnummer:
- 741-8685
- Tillv. art.nr:
- AZM 170-02ZRKA 24 VAC/DC
- Tillverkare / varumärke:
- Schmersal
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

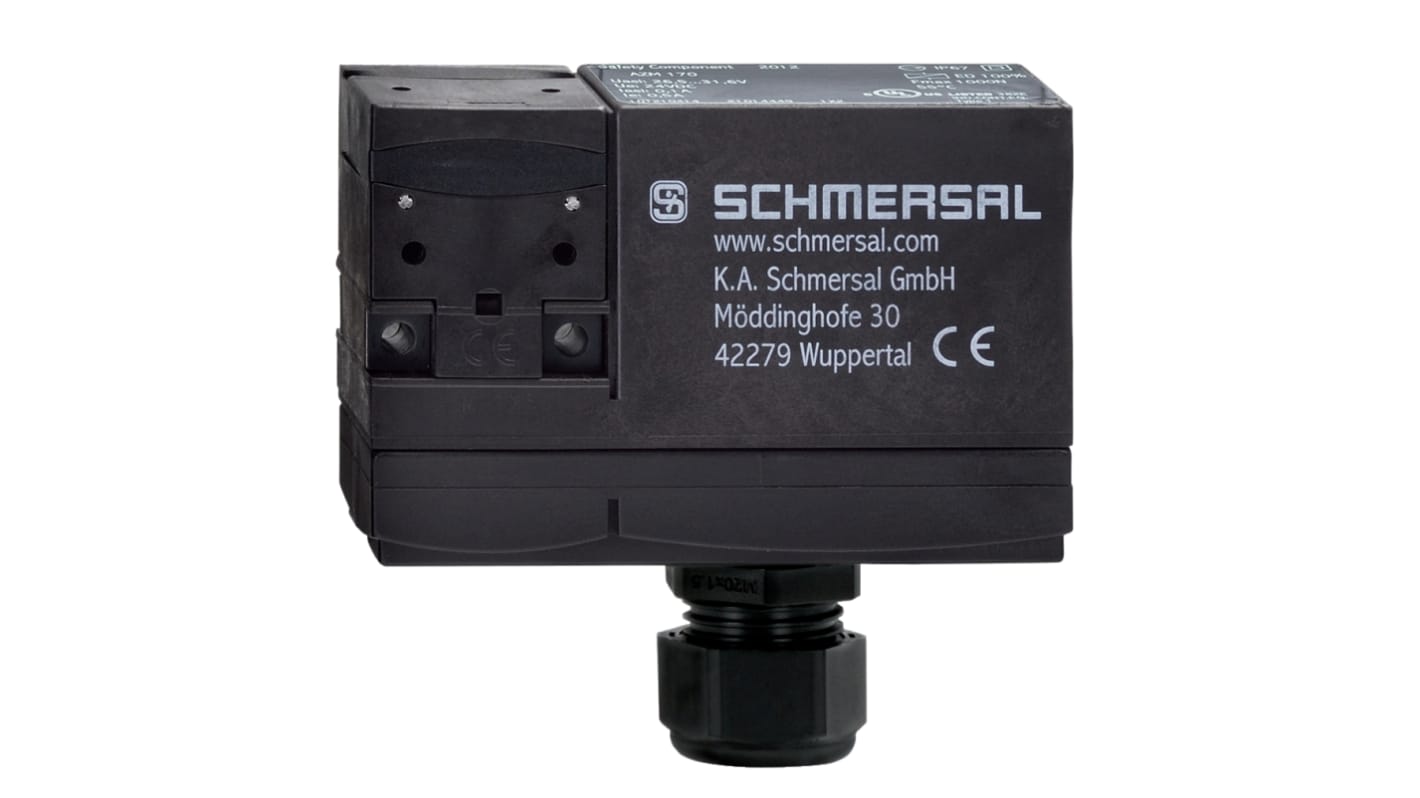

Schmersal Solenoid Interlock Switch with Power to Lock Function, 24V AC/DC - AZM 170 Series - AZM 170-02ZRKA 24 VAC/DC
This interlock switch from Schmersal is a robust way of locking machine guards. Use it to avoid interrupting processes that shouldn't be halted once they've started, such as robotic welding. The lock is activated by turning on power to the switch (power-to-lock), which prevents incorrect locking and a high clamping force of 1000 Newtons helps to avoid accidental openings. A tough thermoplastic housing and resistance to dust and water mean this is a reliable choice for industrial use.
Features and Benefits
Impact-resistant thermoplastic housing
Long service life, for assured reliability
Ingress protection of IP67 (to IEC/EN 60529 standards)
Wide operating temperature range (-25°C to +60°C) makes it suitable for most environments
Flexibility of AC/DC power options
Long service life, for assured reliability
Ingress protection of IP67 (to IEC/EN 60529 standards)
Wide operating temperature range (-25°C to +60°C) makes it suitable for most environments
Flexibility of AC/DC power options
Application Information
Industrial machinery
Automotive manufacture
Machine guarding
Automotive manufacture
Machine guarding
Do I need a power-to-lock or a power-to-unlock switch?
Power-to-lock switches are best suited to process guards – once power is applied, they prevent accidental interruption. For machinery where the hazard remains after power is removed (such as a circular saw), power-to-unlock is the safer choice, as it stops the guard being opened even if power is lost.
Specifikationer
Attribute | Value |
---|---|
Power to Lock / Unlock | Power to Lock |
Supply Voltage | 24V ac/dc |
Series | AZM 170 |
Actuator Included | No |
Safety Contacts | 2NC |
Normal State Configuration | 2NC |
Conduit Entry | 1/2 in NPT |
Housing Material | Plastic |
IP Rating | IP67 |
Width | 90mm |
Power Consumption | 10W |
Length | 30mm |
Depth | 84mm |
