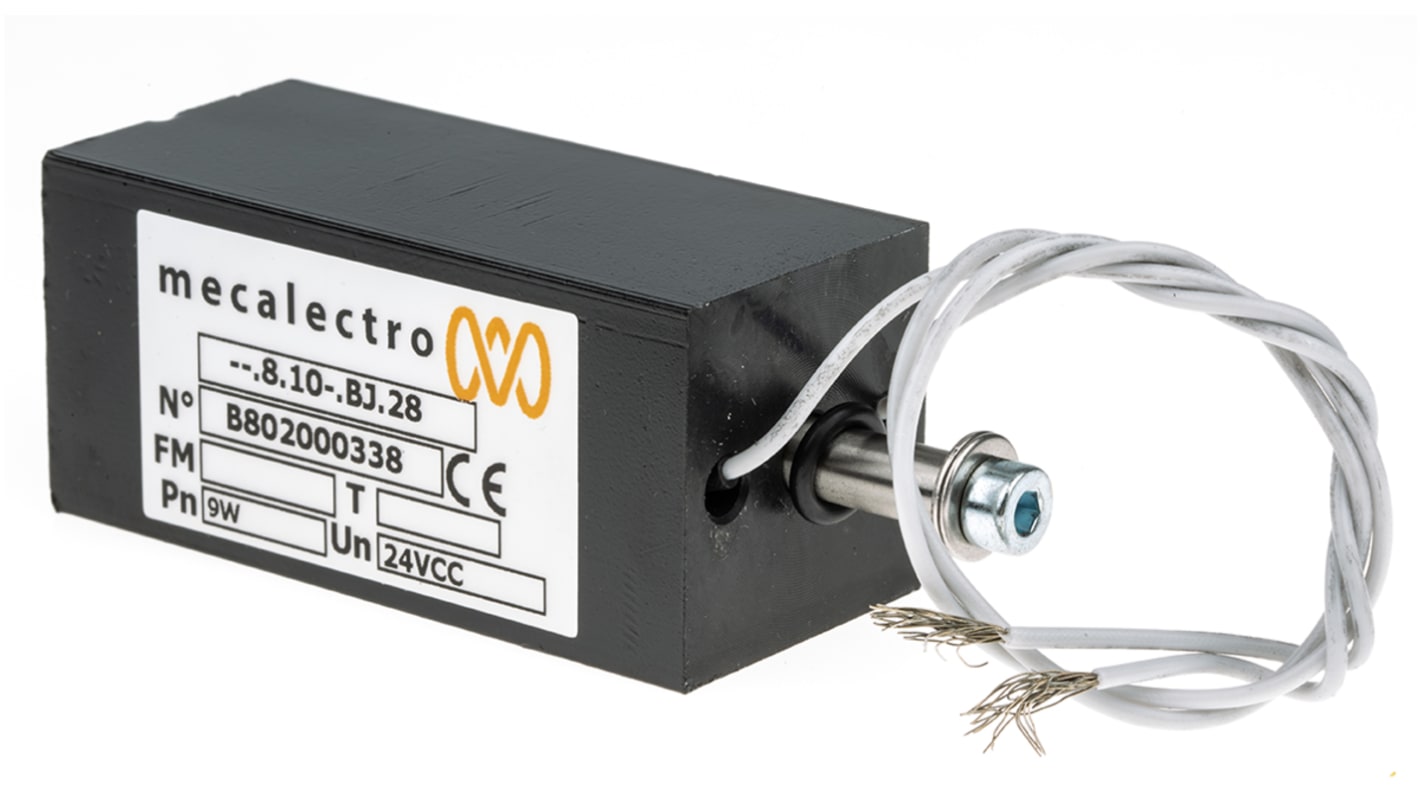

Solenoid Interlock Switch Power to Lock 24 V dc


6 I lager för leverans inom 1 arbetsdagar
999993 Inom 2 arbetsdag(ar) (UK lager)
Add to Basket

Pris (ex. moms) Each

1 780,31 kr

(exkl. moms)

2 225,39 kr

(inkl. moms)

Enheter

Lagt till varukorgen

RS-artikelnummer:
178-3144
Tillv. art.nr:
8 10 BJ 28
Tillverkare / varumärke:
Mecalectro

Ej tillämpbart

COO (Country of Origin):
FR
EnheterPer unit
1 - 41 780,31 kr
5 - 91 709,10 kr
10 +1 673,49 kr

Electromagnetic safety locks


Designed to control the opening of mobile machine guards using an electrical signal or to act as trigger stops for a variety of applications.
Power-on locking: bolt extends when power is on, retracts as a cut-off via a built-in spring return.
Power-off locking: bolt retracts when power is on, extends as a cut-off via a built-in spring return.
The 8.458 and 8.25 series locks are fitted with a positive control safety opening switch that detects the position of the bolt. When installed in compliance with standard EN 1088, they contribute to the safe running of machines that continue to pose a danger after the operator has stopped working (EN 292).
Examples: safety position locks for mobile casings or access gates to restricted areas (high-inertia moving machines, robotic development areas, tooling centres, handling gantries, sources of radiation etc.).


Standards

EN 292, EN 60947-5-1 except for 810B528 and 810BM28

Electric Shotbolt

AttributeValue
Power to Lock / UnlockPower to Lock
Actuator IncludedNo
Actuator TypeVarious Options
Length65mm
Width30mm
Depth30mm
Supply Voltage24 V dc
Dimensions65 x 30 x 30 mm
IP RatingIP40
