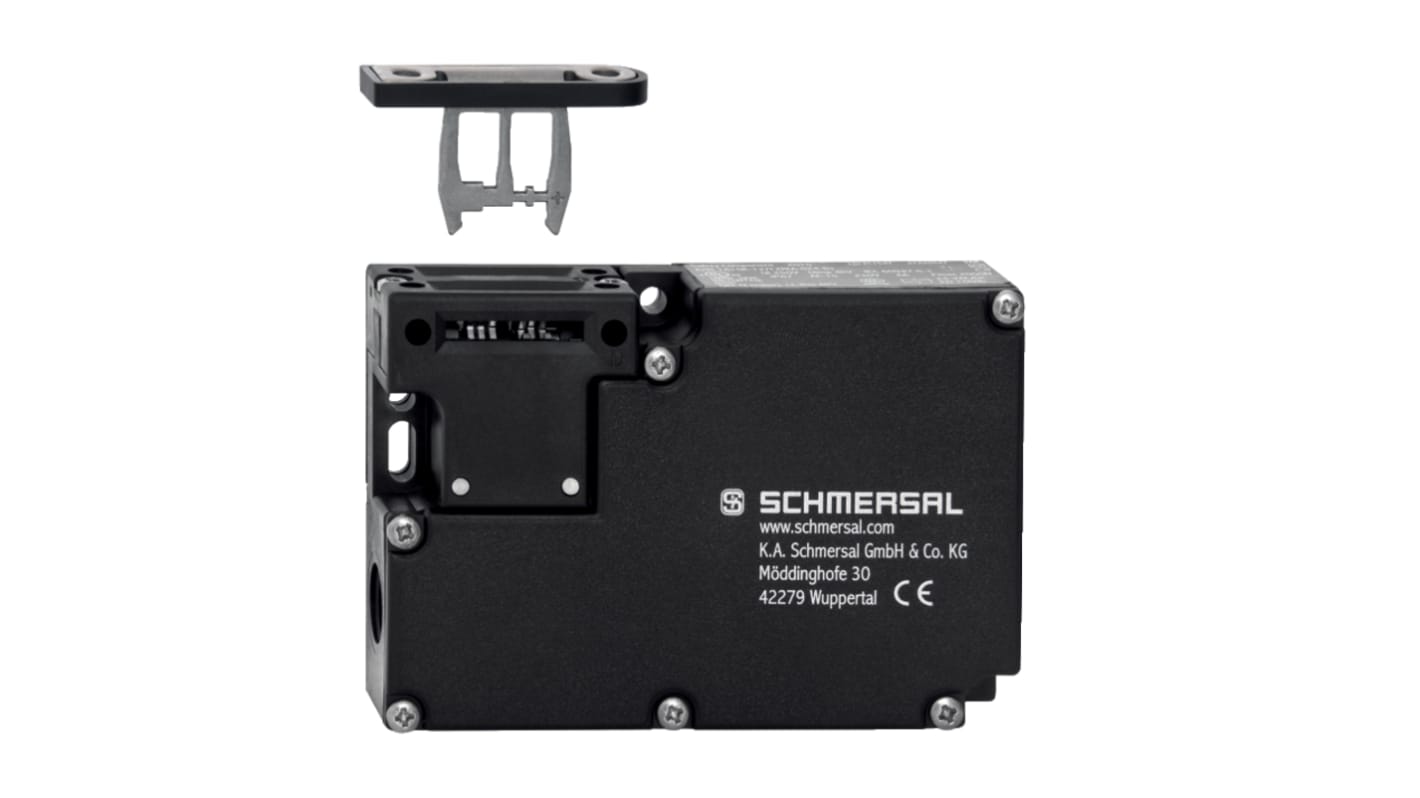

Schmersal AZM 161 Series Solenoid Interlock Switch, Power to Lock, 24V ac/dc, 4NC/2NO, Actuator Included
- RS-artikelnummer:
- 146-5796
- Tillv. art.nr:
- AZM161SK-12/12RIA-024-B1
- Tillverkare / varumärke:
- Schmersal
27 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
3 647,51 kr
(exkl. moms)
4 559,39 kr
(inkl. moms)
Enheter | Per unit |
1 + | 3 647,51 kr |
- RS-artikelnummer:
- 146-5796
- Tillv. art.nr:
- AZM161SK-12/12RIA-024-B1
- Tillverkare / varumärke:
- Schmersal
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Schmersal Solenoid Interlock Switch with Power to Lock Function, 24V AC/DC - AZM 161 Series - AZM161SK-12/12RIA-024-B1
This solenoid interlock switch from Schmersal helps prevent workplace accidents by stopping machinery from operating when a hazard is present. It also protects line operators by keeping sliding doors closed in dangerous situations. This device is double insulated and has a maximum power supply voltage rating of 24V AC/DC along with power consumption of only 10W. There are four normally-closed safety contacts and two normally-open auxiliary contacts. The operating temperature range is 0°C to +60°C, making this a versatile choice for industrial use.
Features and Benefits
Robust glass-fibre-reinforced thermoplastic enclosure with screw terminals
Enclosure is self-extinguishing in the event of fire
IP (ingress protection) rating of 67 means it's dust-tight and water-resistant
Compact design with dimensions of 130 (height) x 90 (width) x 30mm (depth)
Coded actuator is included for security
Enclosure is self-extinguishing in the event of fire
IP (ingress protection) rating of 67 means it's dust-tight and water-resistant
Compact design with dimensions of 130 (height) x 90 (width) x 30mm (depth)
Coded actuator is included for security
Application Information
Manufacturing
Transportation applications
Security systems
Transportation applications
Security systems
What precautions should I take when using this interlock?
Interlocks with power to lock should only be used after a thorough risk evaluation. This is because the guarding device can be immediately opened in the event of a power failure or when the main switch is opened.
Specifikationer
Attribute | Value |
---|---|
Power to Lock / Unlock | Power to Lock |
Supply Voltage | 24V ac/dc |
Series | AZM 161 |
Actuator Included | Yes |
Actuator Type | Coded |
Safety Contacts | 4NC |
Normal State Configuration | 4NC/2NO |
Conduit Entry | M20 |
Auxiliary Contacts | 2NO |
Housing Material | Plastic |
IP Rating | IP67 |
Maximum AC Voltage | 24V |
Pole Configuration | 3P |
Depth | 30mm |
Width | 90mm |
Length | 130mm |
Power Consumption | 10W |
Maximum DC Voltage | 24V |
Standards Met | BG, BG-GS-ET-19, CE, cULus, DIN EN 60269-1, EN 60947-5-1, EN ISO 13849-1, IEC/EN 60529 |
