Metcal PS-900 Soldering Station 90W, 240V

  • RS-artikelnummer 456-018
  • Tillv. art.nr PS-900
  • Tillverkare / varumärke Metcal
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

PS900 Soldering Station

The PS Series uses Metcal SmartHeat® technology to deliver the power required for lead-free connections. Smartheat's variable power technology instantaneously senses and continuously delivers the precise thermal energy to the pad, yielding high quality solder joints while protecting sensitive components from damage.

What are the benefits of PS-900?

• SmartHeat® temperature control
• Ergonomic and lightweight handle
• Rugged cast aluminium housing
• Low cost, quick- change heater coil
• Added plating thickness to tips

What features does PS-900 offers?

Power Supply:

• Ambient Operating Temperature 10 - 40°C
• Maximum Enclosure Temperature 65°C
• Input Line Voltage 100 - 240 VAC
• Power Consumption 90 Watts max
• Output Frequency 450 KHz
• Dimensions W x D x H 80 x 160 x 115 mm (3.1" x 6.3" x 4.5")

Soldering Handle and Coil Assembly:

• Tip-to-Ground Potential: < 2 mV
• Tip-to-Ground Resistance: < 2 ohms
• Idle Temperature Repeatability: ± 1.1°C in still air
• Handle Cord Assembly Length: 122 cm – burn proof, ESD safe
• 3-pin power connector
• Overall length (with tip): 230 mm (9.06") with standard tips
• Grip diameter: 13 mm (0.51")
• Tip to grip: 58 mm (2.28")
• Tip shaft diameter: 8.0 mm (0.31")
• Tip length: 82 mm (3.23") to 93 mm (3.66") (typical)
• Workstand W x D x H: 105 x 175 x 90 mm (4.1" x 6.9" x 3.5")

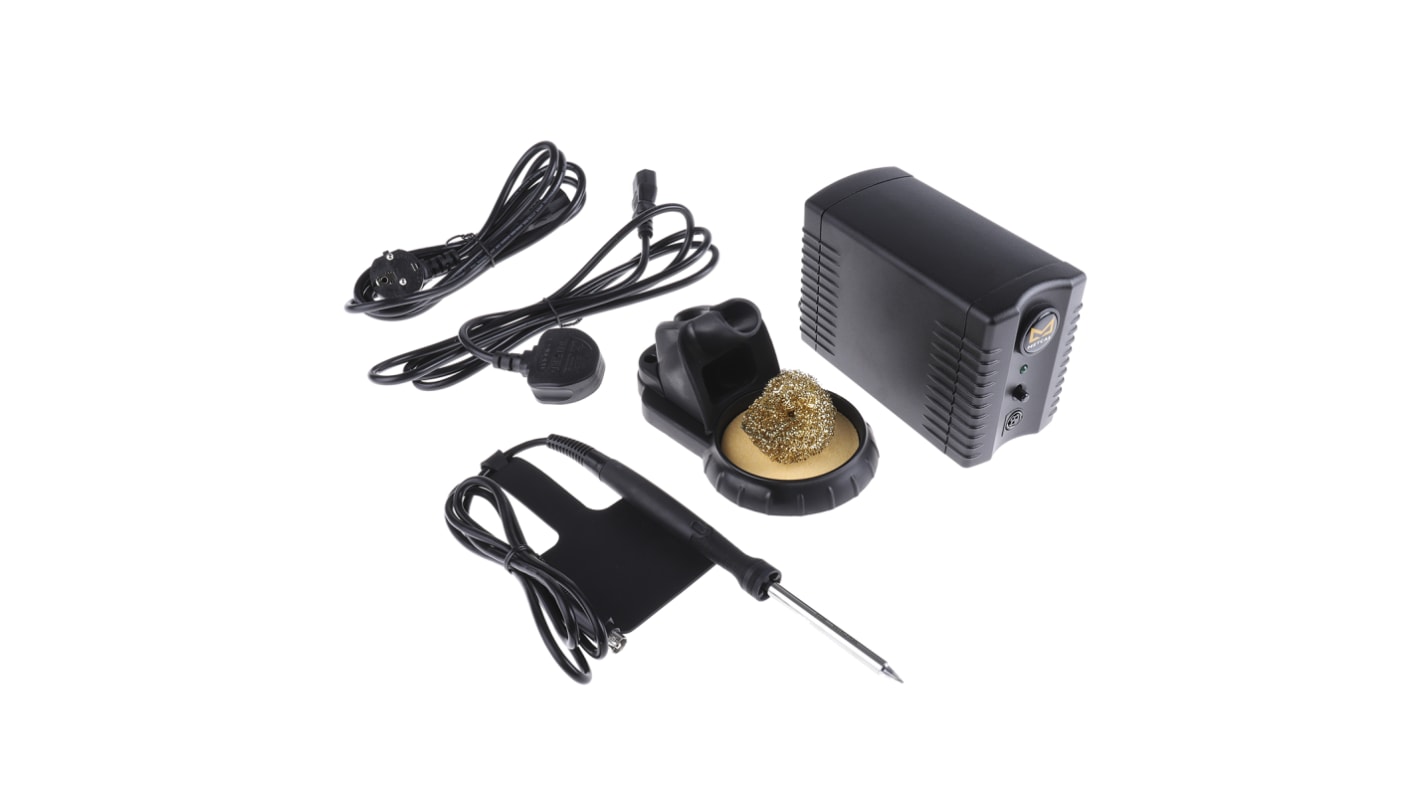

PS-900 Soldering Station is supplied with:

• 1x PS-PW900 Power Supply
• 1x PS-HC3 Hand-piece with long cord with Coil Assembly
• 1x SFV-CH15A Chisel soldering tip 1.5mm (.06")
• 1x WS2-NS Workstand
• 1x AC-CP2: Tip removal pad

Applications:

Maintenance and Repair

Note

Please be aware solder wire is not included with this Soldering Station. Why not try RS brand Solder wire? 756-8884

Soldering - OKI/ Metcal

Specifikationer
Attribute Value
Model Number PS-900
Plug Type Type F - Schuko plug, Type G - British 3-pin
Tasks Supported Soldering
Wattage 90W
Input Voltage 240V
Soldering Tip Temperature 471°C
Number of Outputs 1
Display Type LCD
ESD Safe Yes
34 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Pr. Set
2 769,32 kr
(exkl. moms)
3 461,65 kr
(inkl. moms)
Sats(er)
1 +
2 769,32 kr
