Metcal BVX 201 KIT, 100 → 240V ac Solder Fume Extractor, Pre Gas; Main Filter, 85W, Schuko 2 Pin, UK 3 Pin

  • RS-artikelnummer 511-3662
  • Tillv. art.nr BVX-201-KIT
  • Tillverkare / varumärke Metcal
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

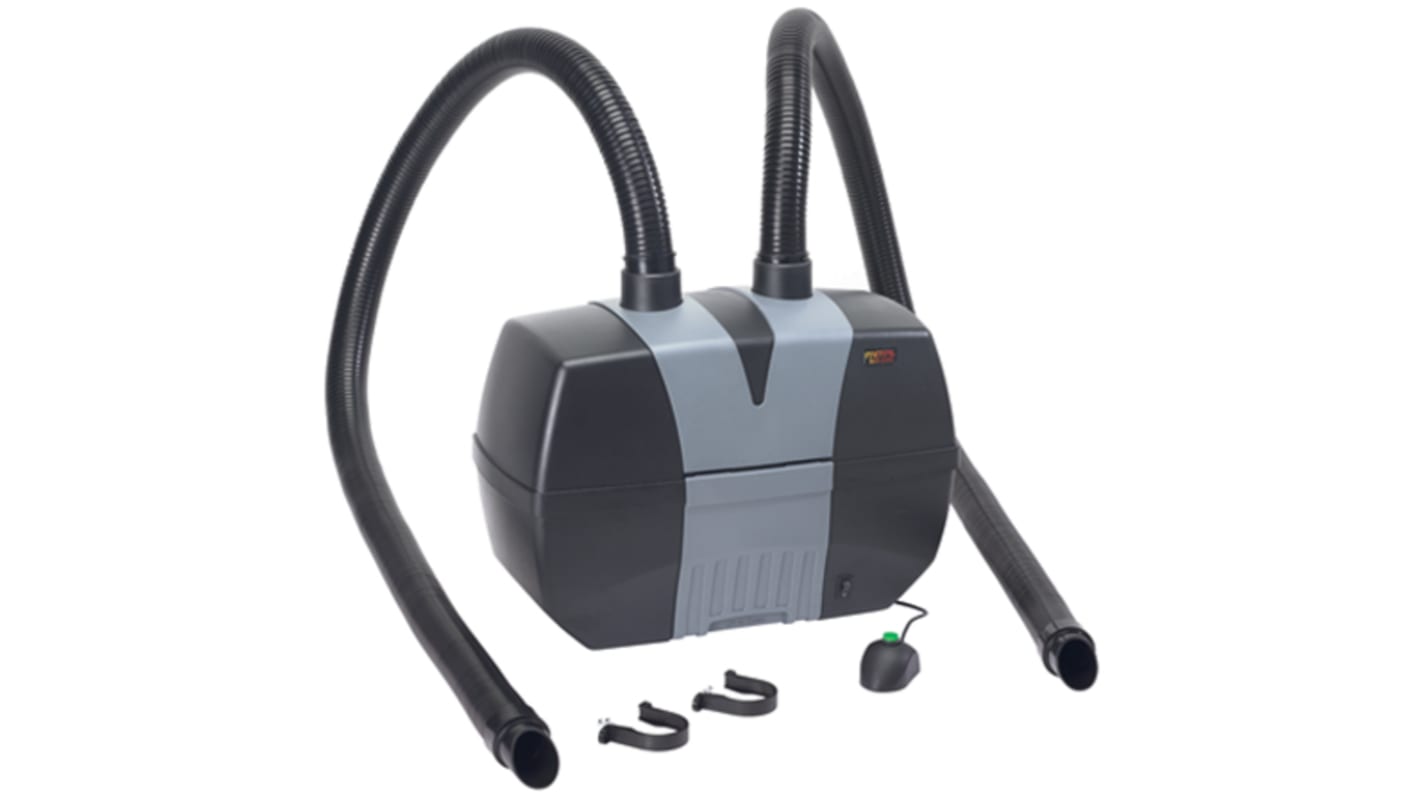

BVX200 Extraction System

Two station dynamic fume extraction system
Main filter has a HEPA efficiency of >99.5% plus activated carbon to remove additional gases.

Note

BVX 201 Kit contains Filter unit, 2 x 1.2m flexible arms, Pre-HEPA-Gas Filter. Additional filters and accessories available separately.

Approvals

UL, CSA

Fume Extraction - OKI/ Metcal

Specifikationer
Attribute Value
Model Number -, BVX 201 KIT
Pre Filter Type EU4
Main Filter Type HEPA
Filter Type Pre Gas; Main Filter
Noise Level 55dB(A)
Voltage Rating 100 → 240V ac
Wattage 85W
Weight 9kg
ESD Safe Yes
Plug Type Euro Plug, UK
Remote Control Yes
Depth 254mm
Height 388mm
Width 508mm
Filter Full Alarm Yes
Maximum Airflow Rate 150m³/h
Extraction Type Volume
Maximum Users 2
16 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
9 345,82 kr
(exkl. moms)
11 682,28 kr
(inkl. moms)
Enheter
Per unit
1 +
9 345,82 kr
