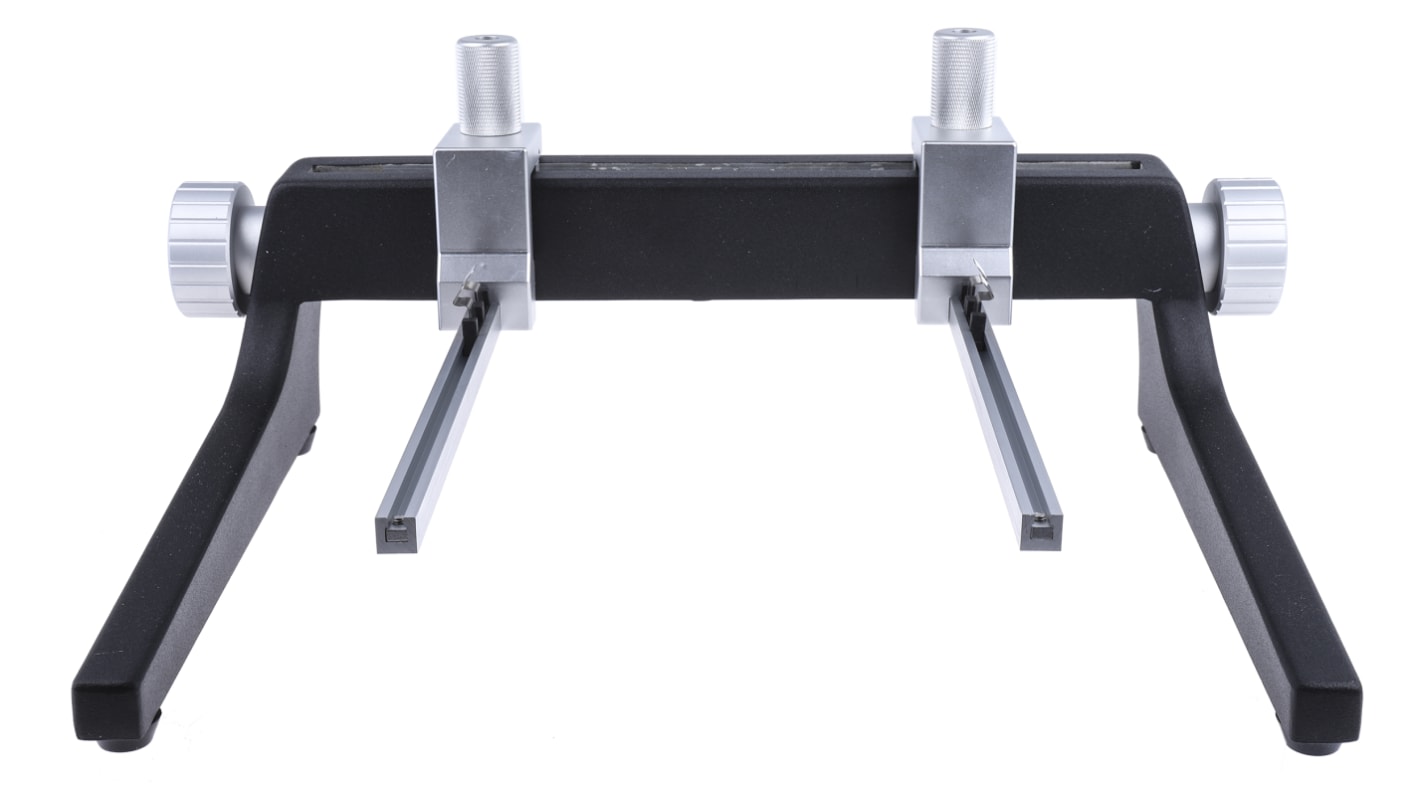

Metcal PCB Work Holder, 205 x 155 x 65mm for use with PCT-100 Focused Convection Pre-heater

  • RS-artikelnummer 420-962
  • Tillv. art.nr BH-100
  • Tillverkare / varumärke Metcal
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

PCT-100 Focused Convection Pre-heater & Circuit Board Holder

The PCT-100 is designed to provide extra heat capacity for demanding applications such as lead free, multi-layered boards and assemblies with large ground plates by directly targeting the underside of the PCB. This direct targeting provides a thermal boost for processes such as soldering and hot air rework and leads to an substantial improvement in process time.

Quick ramp to temperature, increased productivity
Controlled cool-down eliminates thermal shock to PCB’s and components
Input voltage: 230V
Heater Rating: 450W
Airflow: 10.2CFM
Control Temperature: Variable up to 300°C
Weight: 1.6kg
Dimensions: 205(L) x 155(W) x 65(H)mm
ESD Safe

Approvals

cTUVus, CE

Heating Plates - OKI/ Metcal

Specifikationer
Attribute Value
Type Circuit Board Holder
For Use With PCT-100 Focused Convection Pre-heater
Tillfälligt slut i lager – restorder för leverans 2020-08-04
Pris (ex. moms) Each
5 816,22 kr
(exkl. moms)
7 270,28 kr
(inkl. moms)
Enheter
Per unit
1 +
5 816,22 kr
