- RS-artikelnummer:
- 913-2406
- Tillv. art.nr:
- TS-MPPT-45
- Tillverkare / varumärke:
- Morningstar
3 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
13 545,80 kr
(exkl. moms)
16 932,25 kr
(inkl. moms)
Enheter | Per unit |
1 + | 13 545,80 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 913-2406
- Tillv. art.nr:
- TS-MPPT-45
- Tillverkare / varumärke:
- Morningstar
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

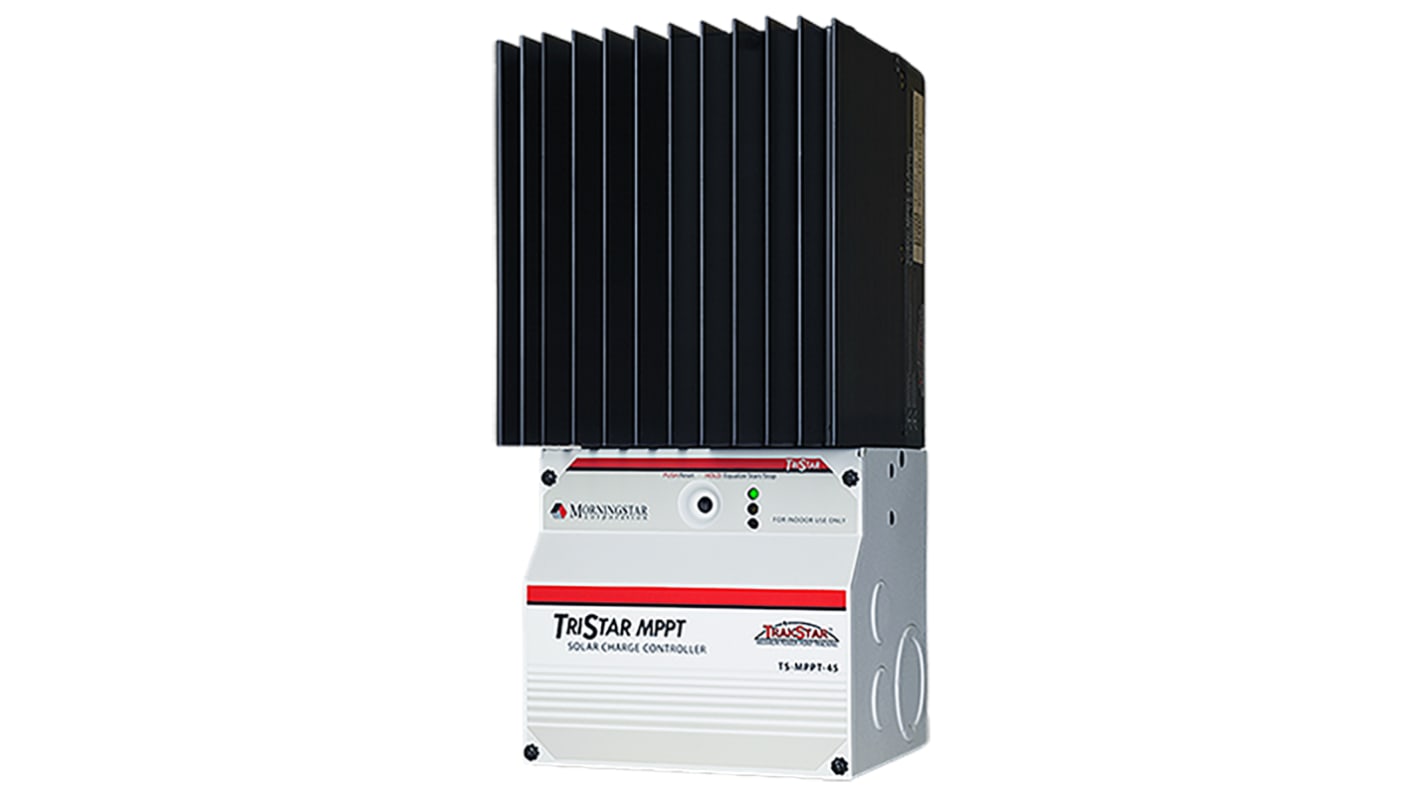

TriStar MPPT Solar Controller
Morningstar TriStar MPPT solar controller is an advanced maximum power point tracking (MPPT) battery charger for off-grid photovoltaic (PV) systems up to 3 kW.
The controller provides the industry highest peak efficiency of 99% and less power loss compared to other MPPT controllers.
The TriStar MPPT features a smart tracking algorithm that maximises the energy harvest from the PV by rapidly finding the solar array peak power point.
Includes on-board Ethernet for a fully web-enabled interface and up to 200 days of data logging
The controller provides the industry highest peak efficiency of 99% and less power loss compared to other MPPT controllers.
The TriStar MPPT features a smart tracking algorithm that maximises the energy harvest from the PV by rapidly finding the solar array peak power point.
Includes on-board Ethernet for a fully web-enabled interface and up to 200 days of data logging
TrakStar Technology
Maximizes Energy Harvest
Extremely High Reliability
Very High Efficiency
Extensive Networking and Communication Capabilities
Metering and Data Logging
Certified to IEC 62093
Maximizes Energy Harvest
Extremely High Reliability
Very High Efficiency
Extensive Networking and Communication Capabilities
Metering and Data Logging
Certified to IEC 62093
Applications:
Hybrid (PV + Second Energy Source)
Railroad Signaling
Residential
Solar
Security and Instrumentation
Rural Electrification and Solar Home Systems
Telecommunications
Railroad Signaling
Residential
Solar
Security and Instrumentation
Rural Electrification and Solar Home Systems
Telecommunications
Specifikationer
Attribute | Value |
---|---|
Solar Panel Voltage | 150V dc |
Maximum Power Rating for 12 V Panels | 600W |
Maximum Current Rating for 12 V Panels | 45A |
Maximum Power Rating for 24 V Panels | 1200W |
Maximum Current Rating for 24 V Panels | 45A |
Dimensions | 291 x 130 x 142mm |
Depth | 142mm |
Length | 291mm |
Width | 130mm |
Better World Claim | Renewable energy solution |
Better World Product | Yes |
