- RS-artikelnummer:
- 509-7116
- Tillv. art.nr:
- SL-10L-12
- Tillverkare / varumärke:
- Morningstar
3 I lager för avsändande samma dag
Pris (ex. moms) Varje
2 535,35 kr
(exkl. moms)
3 169,19 kr
(inkl. moms)
Enheter | Per unit |
1 + | 2 535,35 kr |
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 509-7116
- Tillv. art.nr:
- SL-10L-12
- Tillverkare / varumärke:
- Morningstar
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- TW
Produktdetaljer

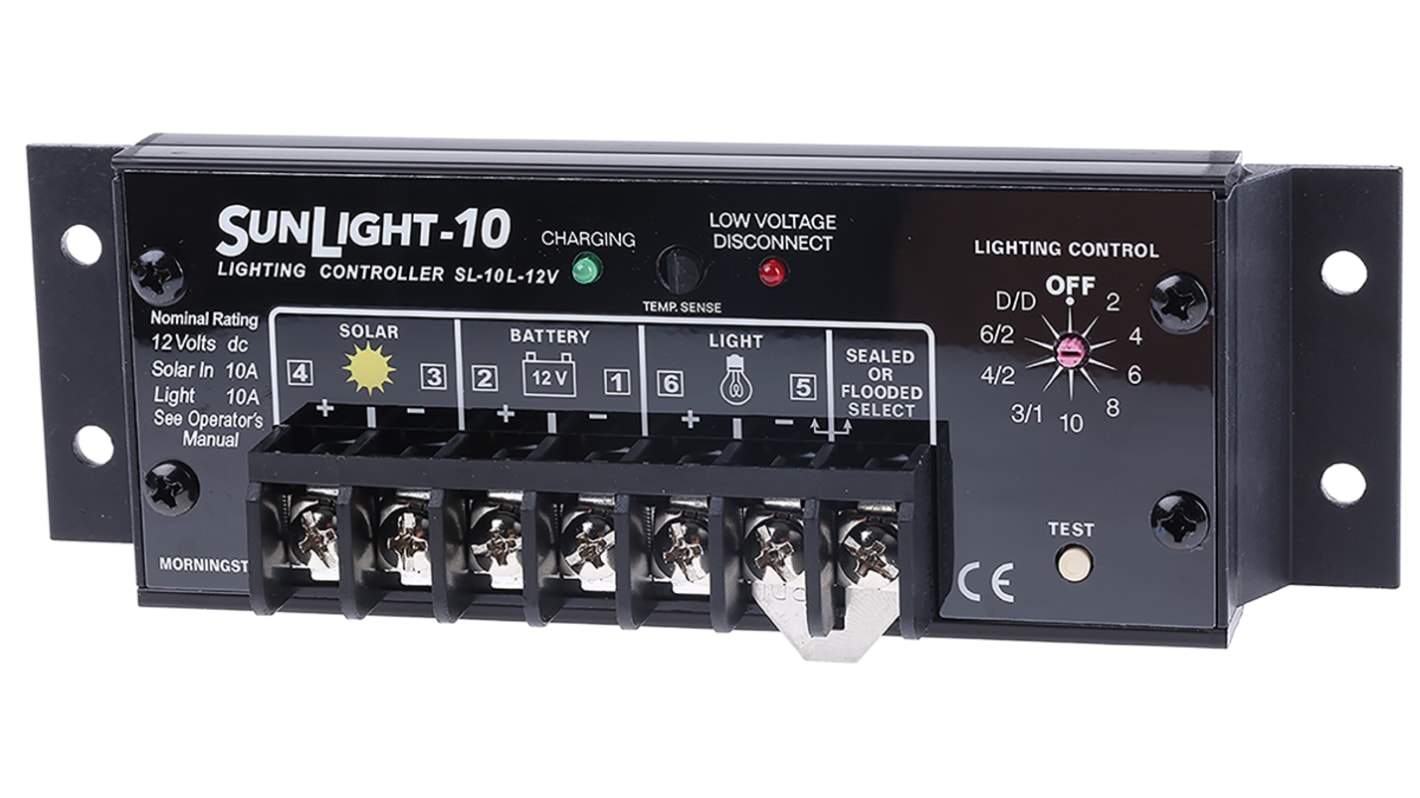

Solar Controllers
SunSaver & SunLight Controllers
12Vnom., 10A solar panel controllers
PWM battery charging
Low Voltage disconnect
100% solid state
Set-point accuracy to 35mV
Rated for 25% overloads
Fully encapsulated in epoxy potting
Temperature compensation
Sealed/flooded battery type select
Green charging and red low voltage disconnect indicators
PWM battery charging
Low Voltage disconnect
100% solid state
Set-point accuracy to 35mV
Rated for 25% overloads
Fully encapsulated in epoxy potting
Temperature compensation
Sealed/flooded battery type select
Green charging and red low voltage disconnect indicators
Sunlight-10 controller only
Microcontroller for automatic lighting control
Rotary digital switch to select 10 lighting control options (Off, 2-hours On, 4-hours On, 6-hours On, 8-hours On, 10-hours On, 3/Off/1, 4/Off/2, Dusk-to-Dawn)
Manual test capability
LVD override protection
Detects day and night using the PV array
Rotary digital switch to select 10 lighting control options (Off, 2-hours On, 4-hours On, 6-hours On, 8-hours On, 10-hours On, 3/Off/1, 4/Off/2, Dusk-to-Dawn)
Manual test capability
LVD override protection
Detects day and night using the PV array
Specifikationer
Attribute | Value |
---|---|
Solar Panel Voltage | 12V dc |
Maximum Current Rating for 12 V Panels | 10A |
Dimensions | 168 x 55 x 34mm |
Depth | 34mm |
Length | 168mm |
Width | 55mm |
Better World Product | Yes |
Better World Claim | Renewable energy solution |
