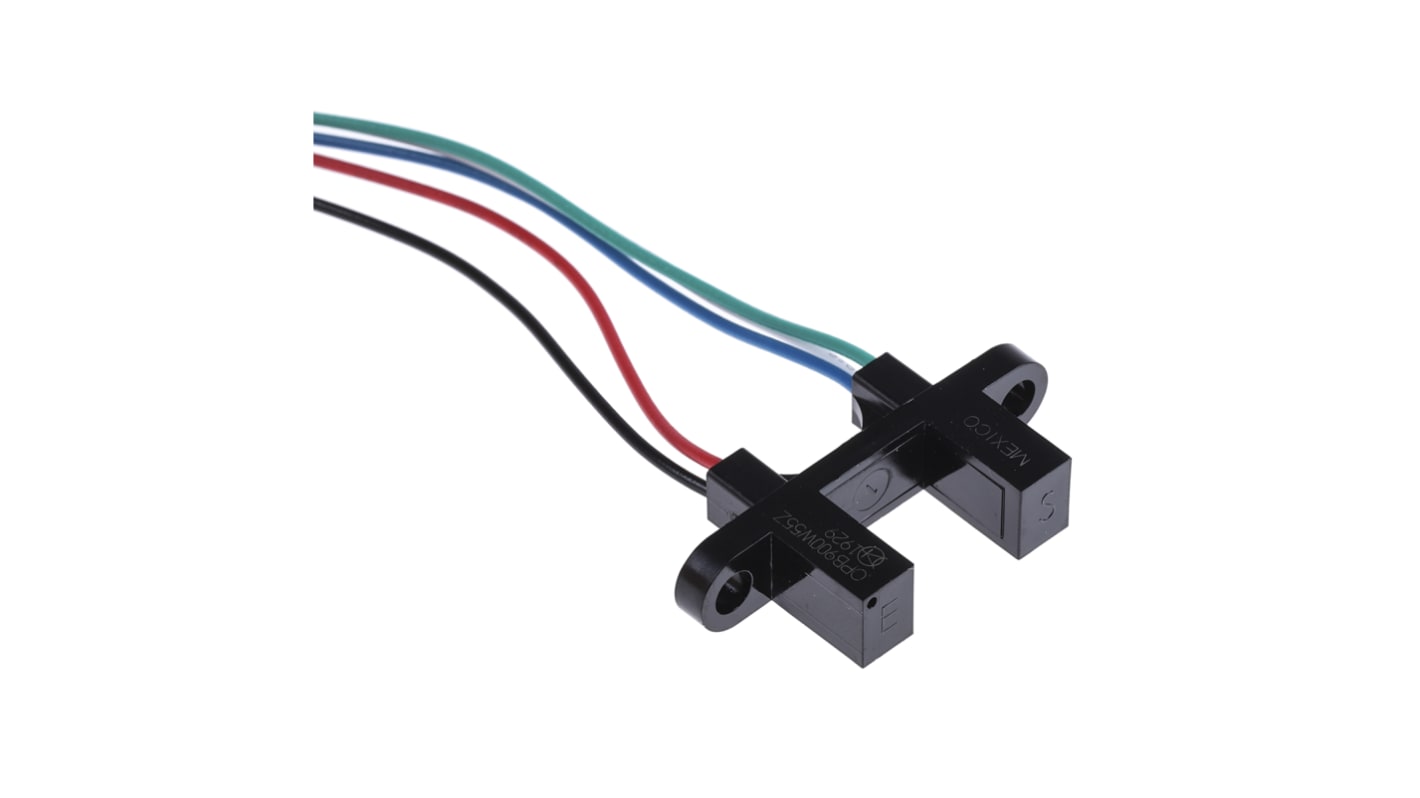

OPB900W55Z Optek, Screw Mount Slotted Optical Switch, Transistor Output

  • RS-artikelnummer 880-1983
  • Tillv. art.nr OPB900W55Z
  • Tillverkare / varumärke Optek
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): MX
Produktdetaljer

OPB900 to OPB913 Photologic Series Slotted Optical Switches

The OPB900 to OPB913 series, from Optek Technology, are a family of Photologic® slotted optical switches. These integrated circuit switches offer a standard housing with added flexibility for design engineers. This includes choice of type and polarity of the TTL output and shell material.
The L series of slotted optical switches are PCB mounted whilst the W series come with 26 AWG wires. Suitable applications for the OPB900 to OPB913 series include; mechanical switch replacements, speed indication, mechanical limit indication, edge sensing and object sensing.

Slotted Optical Switches, Optek Technology

Specifikationer
Attribute Value
Output Device Transistor
Number of Channels 1
Typical Rise Time 70ns
Typical Fall Time 70ns
Mounting Type Screw Mount
Number of Pins 5
Dimensions 30.99 x 6.35 x 10.8mm
Height 10.8mm
Length 30.99mm
Maximum Operating Temperature +70°C
Minimum Operating Temperature -40°C
Slot Width 9.53mm
Width 6.35mm
Operating Temperature Range -40 → +70°C
Series OPB900
130 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
62,87 kr
(exkl. moms)
78,59 kr
(inkl. moms)
Enheter
Per unit
1 - 9
62,87 kr
10 - 49
51,49 kr
50 - 99
50,15 kr
100 - 199
48,91 kr
200 +
47,67 kr
