3 Way Preci-Dip Straight Through Hole 2.54mm Socket Contact Carrier, Solder, 3A 100 V ac, 150 V dc
- RS-artikelnummer:
- 702-2836
- Tillv. art.nr:
- 712-87-103-41-001101
- Tillverkare / varumärke:
- Preci-Dip
Tillfälligt slut i lager – restorder för leverans 2024-07-01
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
4,944 kr
(exkl. moms)
6,18 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 120 | 4,944 kr | 24,72 kr |
| 125 - 495 | 2,976 kr | 14,88 kr |
| 500 - 995 | 2,822 kr | 14,11 kr |
| 1000 - 2495 | 2,80 kr | 14,00 kr |
| 2500 + | 2,736 kr | 13,68 kr |
- RS-artikelnummer:
- 702-2836
- Tillv. art.nr:
- 712-87-103-41-001101
- Tillverkare / varumärke:
- Preci-Dip
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer

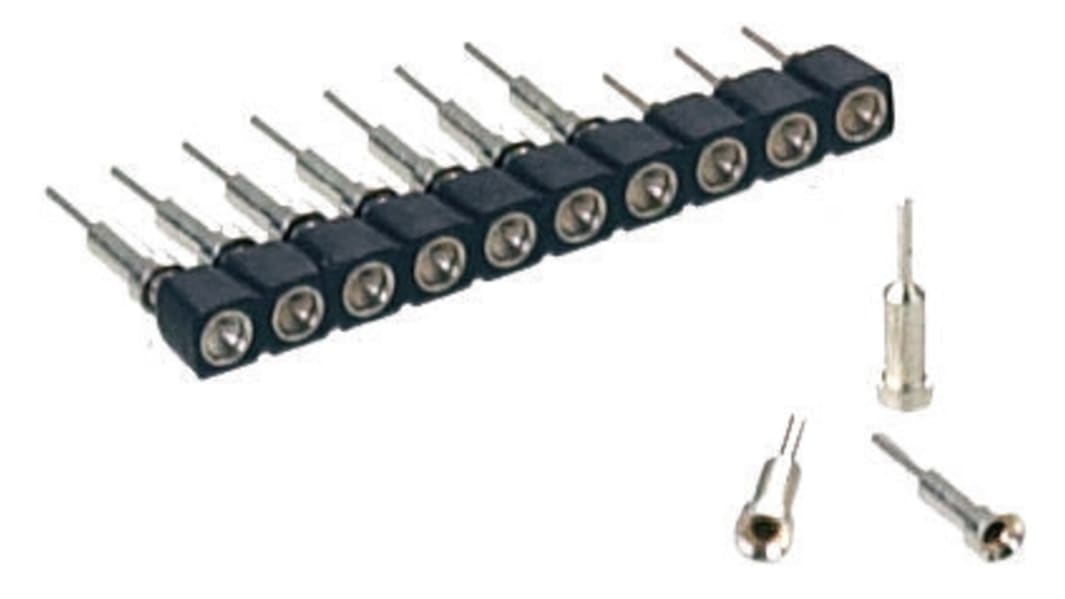

2.54 mm IC Socket Connectors zero profile
These Swiss Preci-dip Zero Profile IC Socket Connectors are for mating pin diameters of 0.47 mm. The single socket contacts for solder mounting into the PCB are supplied on disposable carriers.
Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips
712 Series are standard single socket contact with a solder tail with a length of 3.11 mm
712 Series are standard single socket contact with a solder tail with a length of 3.11 mm
Standards
UL 94V-0
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Contact Material | Beryllium Copper, Brass |
| Contact Plating | Gold, Tin |
| Orientation | Straight |
| Pitch | 2.54mm |
| Termination Method | Solder |
| Mounting Type | Through Hole |
| Housing Material | Glass Fibre Reinforced PCT |
| Current Rating | 3A |
| Voltage Rating | 100 V ac, 150 V dc |
| Dimensions | 7.62 x 1.83 x 4.26mm |
| Depth | 4.26mm |
| Length | 7.62mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Width | 1.83mm |
