- RS-artikelnummer:
- 466-2400
- Tillverkare / varumärke:
- RS PRO
- RS-artikelnummer:
- 466-2400
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- GB
Produktdetaljer

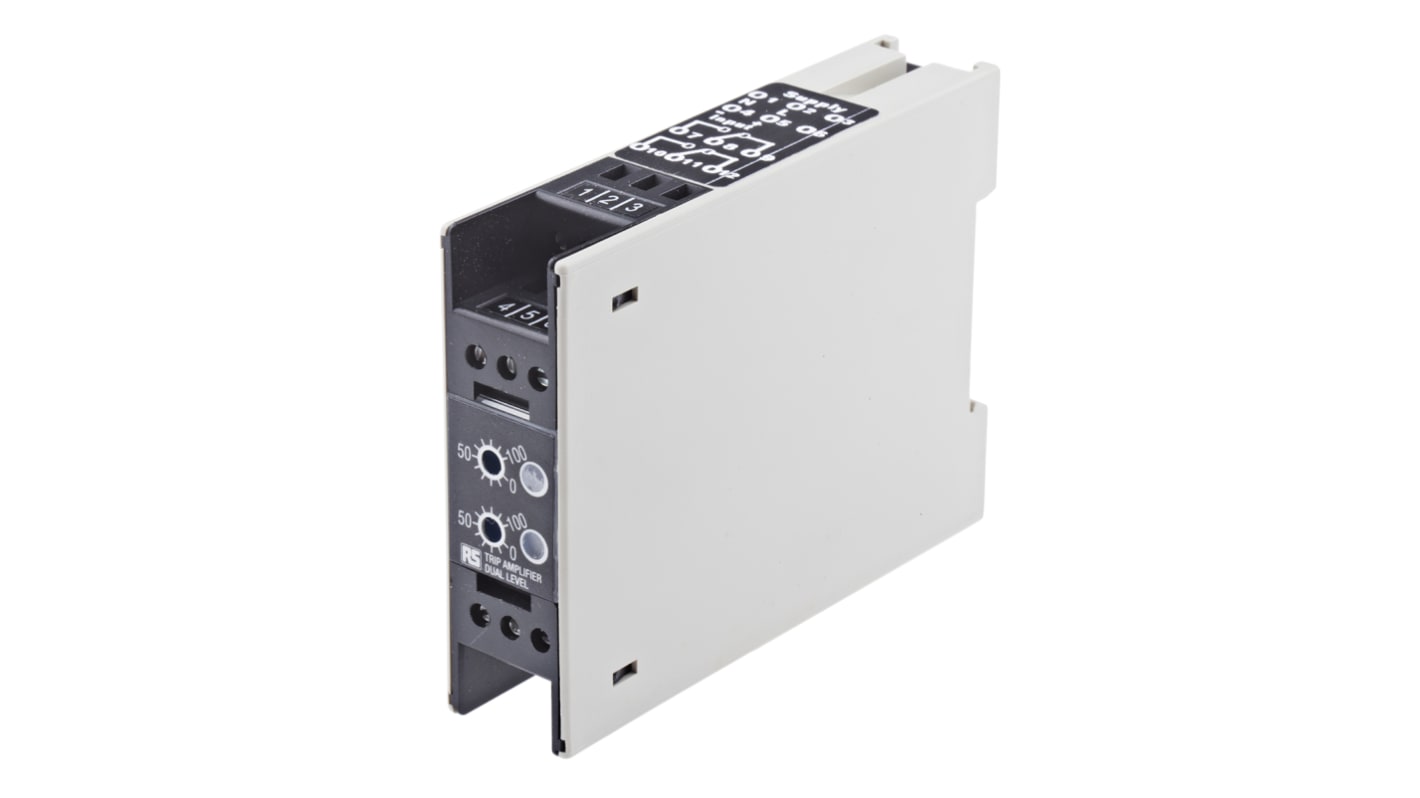

BD120 Dual Level Trip Amplifier
RS Pro dual level trip amplifiers operate from a single process input, with a dual trip action. This output can be arranged so that the alarm condition is triggered either above or below the defined set point. The relay can also be configured for a Fail-Safe (energised in the stable state to de-energise in the alarm state) or Non-Fail Safe (de-energised in the stable state to energise in the alarm state) operation.
2 x SPCO relay (max. 60W load) output
High trip/low trip (user-configurable); fail-safe design (HLFS)
Adjustable set points
Bi-colour LED trip status indication: Green LED indicates stable state; red LED indicates alarm state
High trip/low trip (user-configurable); fail-safe design (HLFS)
Adjustable set points
Bi-colour LED trip status indication: Green LED indicates stable state; red LED indicates alarm state
Specifikationer
Attribute | Value |
---|---|
Module Type | Trip Amplifier |
Input Signal Type | Current, Voltage |
Output Signal Type | Relay |
Input Range | 4 → 20mA |
Supply Voltage | 230V ac |
Mounting Type | DIN Rail Mount |
Operating Temperature Range | 0 → +45°C |
Series | BD |
Minimum Operating Temperature | 0°C |
Termination | Screw |
Maximum Operating Temperature | +45°C |
