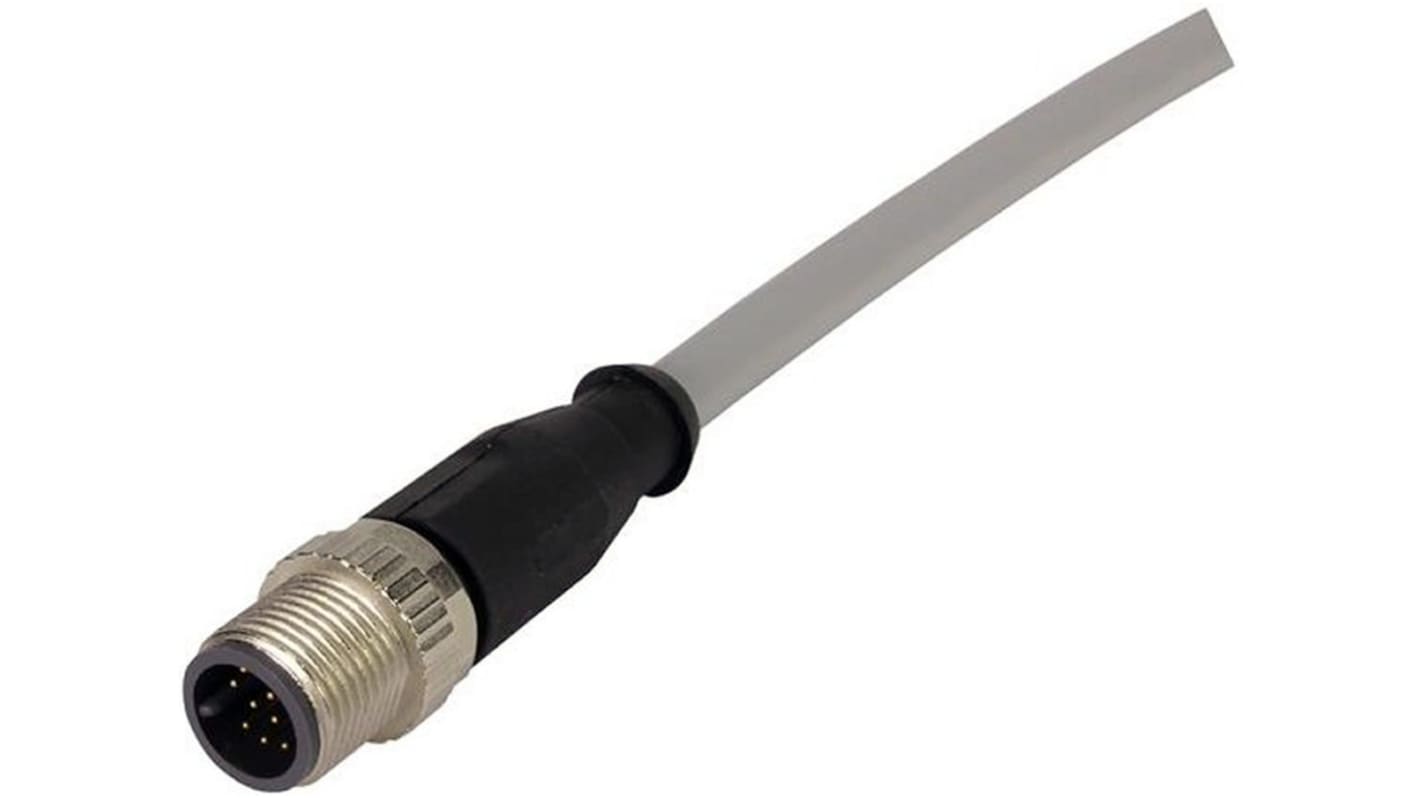

HARTING Male 12 way M12 to Unterminated Sensor Actuator Cable, 1m
- RS-artikelnummer:
- 877-5156
- Tillv. art.nr:
- 21348400C79010
- Tillverkare / varumärke:
- HARTING
Tillfälligt slut i lager – restorder för leverans 2024-05-20
Lagt till varukorgen
Pris (ex. moms) Varje
337,72 kr
(exkl. moms)
422,15 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 337,72 kr |
| 5 + | 326,56 kr |
- RS-artikelnummer:
- 877-5156
- Tillv. art.nr:
- 21348400C79010
- Tillverkare / varumärke:
- HARTING
Lagstiftning och ursprungsland
Produktdetaljer
M12 A-Coded Single Ended Connector Cordsets
A comprehensive offering of Harting male and female straight or angled cable connector cordsets, in M12 format with A coding in 3, 4, 5, 8 and 12 ways to a free end. These durable connector cordsets are suitable for data networking applications, Fast Ethernet, and Gigabit Ethernet (dependant upon number of ways) found in many industries. Connector cordsets are supplied with 1, 2, 5 and 10 metres of either Grey PVC or black PUR cable as stated and are terminated with a straight or angled M12 cable connector at one end only.
Features
• Available in Fast Ethernet and Gigabit Ethernet variants
• Cordsets available in 1, 2, 5 and 10 metres
• IP67 Rated
• Cordsets available in 1, 2, 5 and 10 metres
• IP67 Rated
Standards
IEC 61076-2-101
Harting M12 Cordsets
Specifikationer
Attribute | Value |
|---|---|
| Series | 2134 |
| Number of Cores | 12 |
| Cross Sectional Area | 0.14 mm² |
| Sheath Colour | Grey |
| Sheath Material | Polyurethane PUR |
| Length | 1m |
| Connector 1 Number of Contacts | 12 |
| Connector 1 Gender | Male |
| Connector 1 | M12 |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| IP Rating | IP67 |
| Connector 1 Housing Gender | Male |
| Operating Temperature Range | -30 → +80 °C |
| Maximum Operating Temperature | +80°C |
| Cable Shape | Multicore |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant |
| Minimum Operating Temperature | -30°C |
| American Wire Gauge | 26 AWG |
