- RS-artikelnummer:
- 917-9225
- Tillv. art.nr:
- SS510B
- Tillverkare / varumärke:
- HY Electronic Corp
1000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 100)
1,901 kr
(exkl. moms)
2,376 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
100 - 200 | 1,901 kr | 190,10 kr |
300 - 600 | 1,70 kr | 170,00 kr |
700 - 1400 | 1,569 kr | 156,90 kr |
1500 - 2900 | 1,452 kr | 145,20 kr |
3000 + | 1,353 kr | 135,30 kr |
- RS-artikelnummer:
- 917-9225
- Tillv. art.nr:
- SS510B
- Tillverkare / varumärke:
- HY Electronic Corp
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

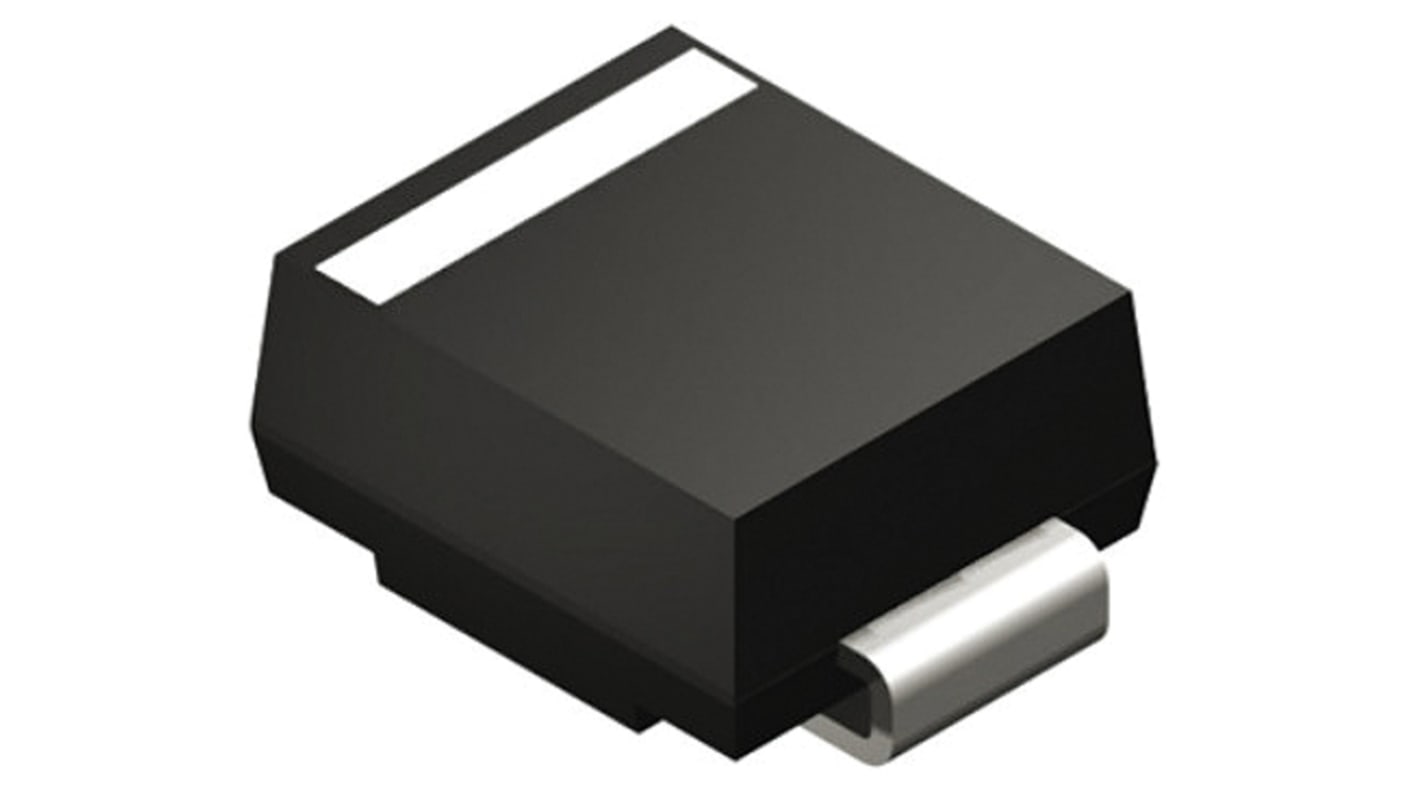

Schottky Barrier Rectifier Diode - SS Series
The HY Electronic (Cayman) Limited SS family of diodes are surface mount schottky barrier rectifiers. They are packaged in SMA, SMB or SMC designs. The reverse voltages range from 20 V to 100 V with different forward currents from 1 A up to 5 A. Applications include free-wheeling, inverters and polarity protection.
Metal-Semiconductor junction with guarding
Epitaxial construction
Low forward voltage drop
Moulded Plastic Case (Plastic: flammability classification UL 94V-0)
Polarity: indicated by cathode band
Epitaxial construction
Low forward voltage drop
Moulded Plastic Case (Plastic: flammability classification UL 94V-0)
Polarity: indicated by cathode band
Diodes and Rectifiers, HY Electronic (Cayman) Limited
Specifikationer
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Package Type | DO-214AA (SMB) |
Maximum Continuous Forward Current | 5A |
Peak Reverse Repetitive Voltage | 100V |
Diode Configuration | Single |
Rectifier Type | Schottky Rectifier |
Diode Type | Schottky |
Pin Count | 2 |
Maximum Forward Voltage Drop | 850mV |
Number of Elements per Chip | 1 |
Diode Technology | Schottky |
Peak Non-Repetitive Forward Surge Current | 150A |
