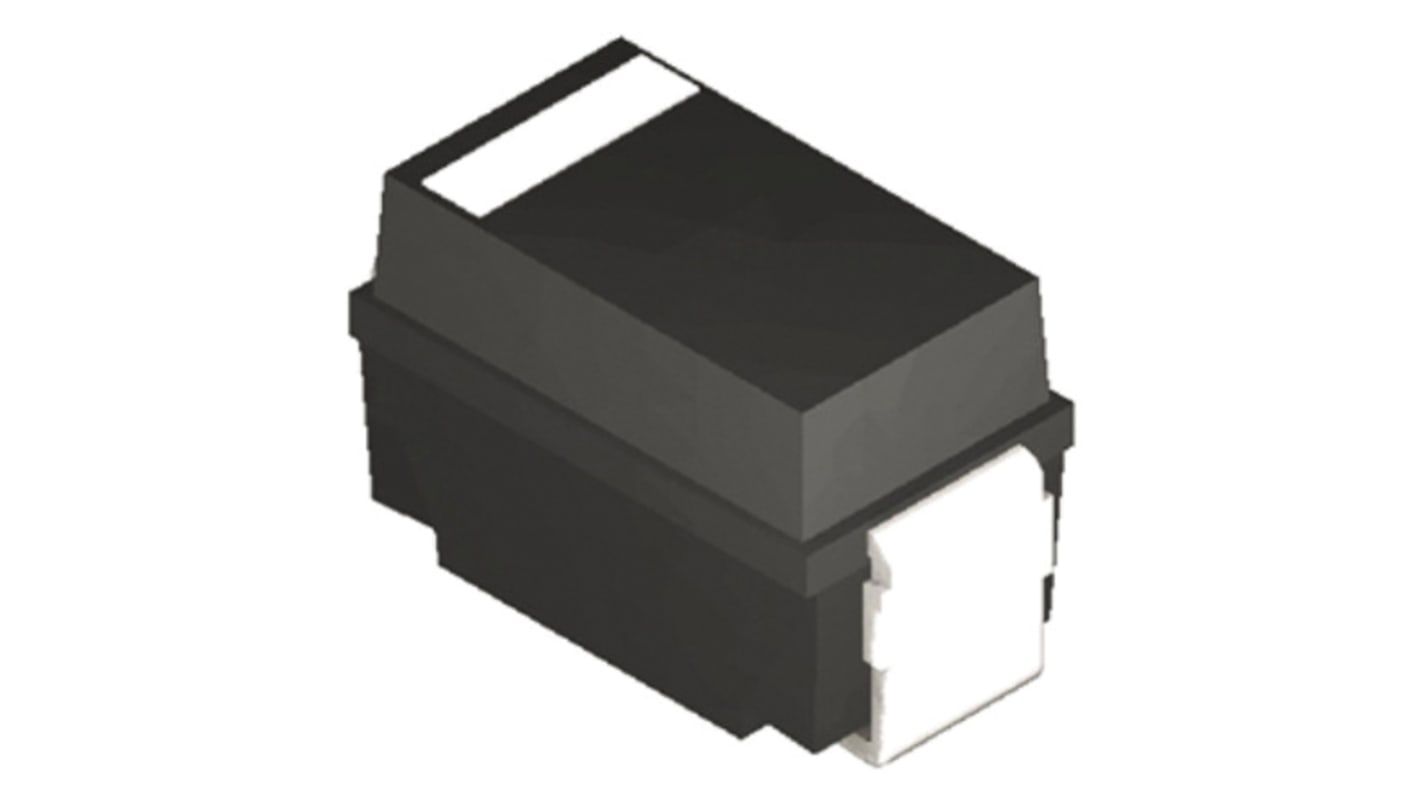

HY Electronic Corp 1000V 3A, Rectifier Diode, 2-Pin DO-214AA S3MB
- RS-artikelnummer:
- 903-3361
- Tillv. art.nr:
- S3MB
- Tillverkare / varumärke:
- HY Electronic Corp
12000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 3000)
0,765 kr
(exkl. moms)
0,956 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 3000 - 6000 | 0,765 kr | 2 295,00 kr |
| 9000 + | 0,727 kr | 2 181,00 kr |
- RS-artikelnummer:
- 903-3361
- Tillv. art.nr:
- S3MB
- Tillverkare / varumärke:
- HY Electronic Corp
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Standard Recovery Rectifier, HY Electronic (Cayman) Limited
The plastic silicon rectifiers produced by HY Electronics (Cayman) ltd tend to vary in reverse voltage ranges from 400 up to 1000 volts at 1 to 6 amps in either a JEDEC or surface mount package. They feature low voltage drop, low reverse leakage current and produce a high current power.
Diffused junction
Polarity: colour band indicates cathode
Suitable for surface mounted (SMA versions only) and through hole (JEDEC) applications
JEDEC/SMT packages: moulded plastic material carries UL recognition 94V-0
Polarity: colour band indicates cathode
Suitable for surface mounted (SMA versions only) and through hole (JEDEC) applications
JEDEC/SMT packages: moulded plastic material carries UL recognition 94V-0
Diodes and Rectifiers, HY Electronic (Cayman) Limited
Specifikationer
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Continuous Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 1000V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Diode Type | Rectifier |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.1V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 100A |
