- RS-artikelnummer:
- 155-765
- Tillv. art.nr:
- 750109
- Tillverkare / varumärke:
- Pilz
- RS-artikelnummer:
- 155-765
- Tillv. art.nr:
- 750109
- Tillverkare / varumärke:
- Pilz
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
PNOZsigma series contact extension blocks
Extension modules for PNOZ sigma series safety blocks.
The extension blocks provide reinforcement and increase the number of safety contacts on a base device.
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails.
Removable terminals with connection via spring terminals.
DIN rail mounting.
The extension blocks provide reinforcement and increase the number of safety contacts on a base device.
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails.
Removable terminals with connection via spring terminals.
DIN rail mounting.
Standards
EN 60947-5-1, EN 60204-1 VDE 0113-1

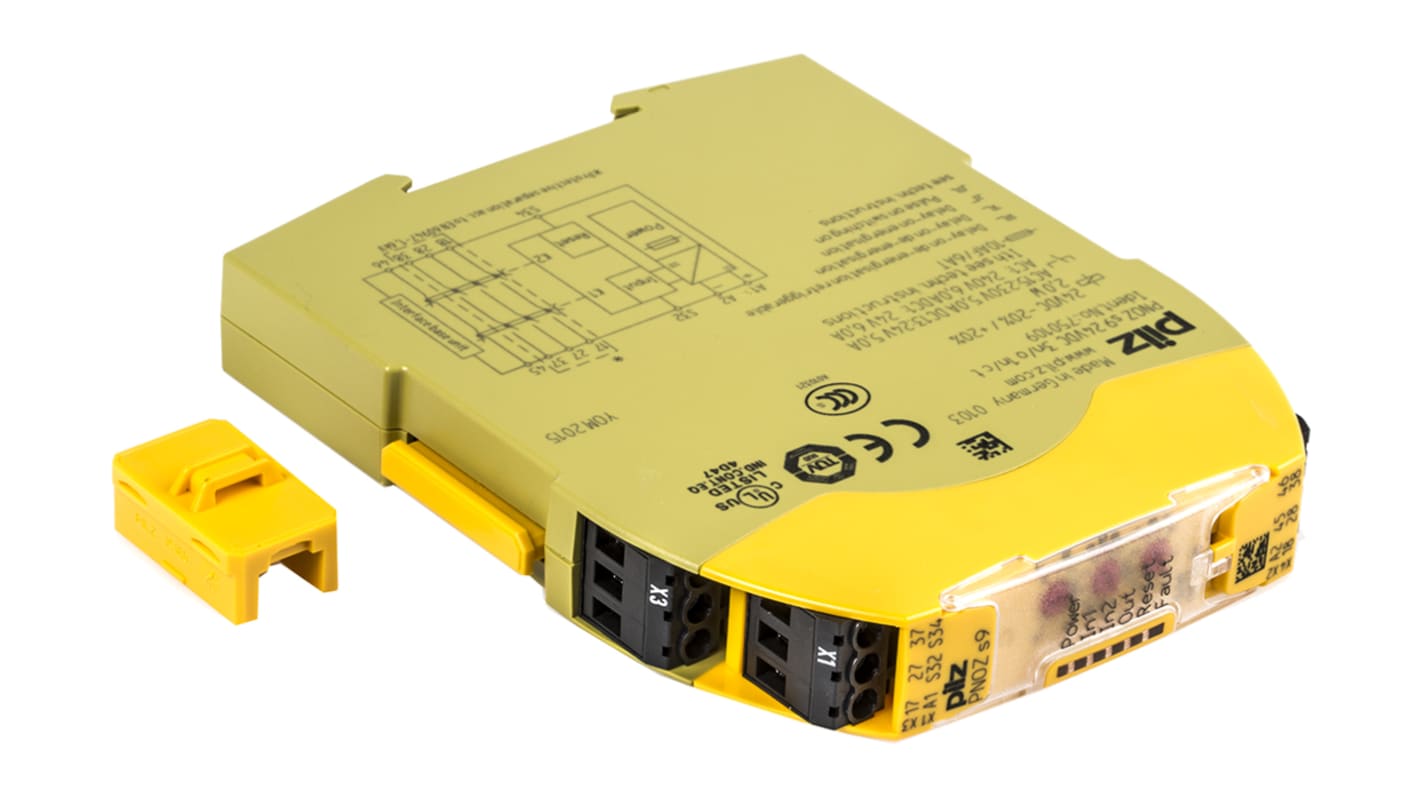

Pilz Expansion Module
The Pilz PNOZsigma series expansion module has 3 instantaneous contacts(NO) and 1 auxiliary contact(NC) relay output. It has a 24VDC supply voltage. It has a power rating of 2W and is available in a screw terminal type.
Features and Benefits
DIN rail mounting
The extension blocks provide reinforcement and increase the number of safety contacts on a base device
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails
Removable terminals with connection via spring terminals
Operating temperature ranges between -10°C and 55°C
The extension blocks provide reinforcement and increase the number of safety contacts on a base device
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails
Removable terminals with connection via spring terminals
Operating temperature ranges between -10°C and 55°C
Certifications
EN60204-1
EN62061
EN954-1
VDE0113-1
CSA certified
UL listed
TUV certified
CCC certified
EN62061
EN954-1
VDE0113-1
CSA certified
UL listed
TUV certified
CCC certified
Specifikationer
Attribute | Value |
---|---|
Series | PNOZsigma |
Type | Output Module |
For Use With | PNOZ |
Supply Voltage | 24 V dc |
Normal State Configuration | 3NO/1NC |
Number of Inputs | 0 |
Number of Outputs | 4 |
Power Rating | 2 W |
Mounting Style | DIN Rail |
Terminal Type | Screw |
Dimensions | 96 x 17.5 x 120 mm |
