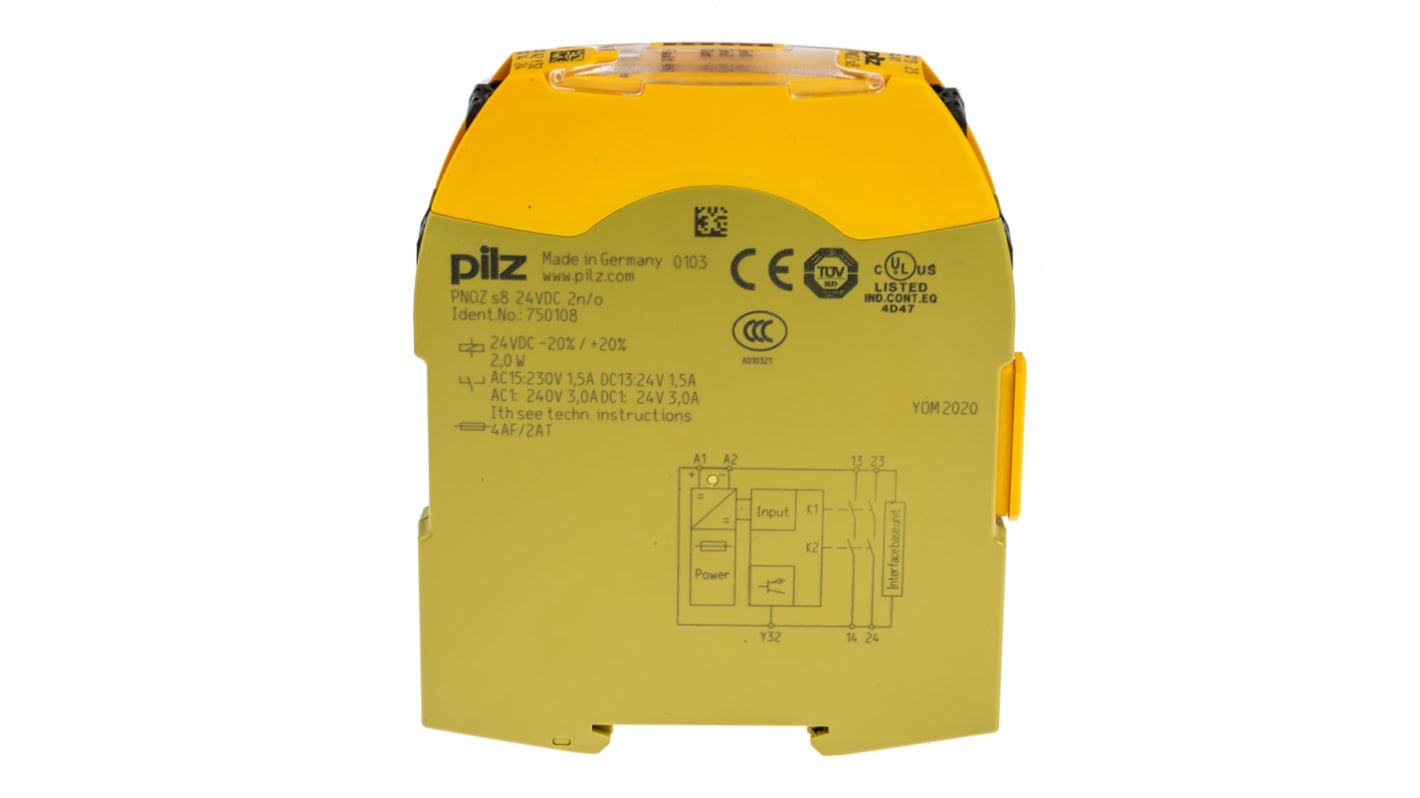

PNOZsigma Output Module, 3 Outputs, 24 V dc

  • RS-artikelnummer 155-759
  • Tillv. art.nr 750108
  • Tillverkare / varumärke Pilz
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

PNOZsigma series contact extension blocks

Extension modules for PNOZ sigma series safety blocks.
The extension blocks provide reinforcement and increase the number of safety contacts on a base device.
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails.
Removable terminals with connection via spring terminals.
DIN rail mounting.

Standards

EN 60947-5-1, EN 60204-1 VDE 0113-1

Pilz Expansion Module

The Pilz PNOZsigma series expansion module has 2NO contact configuration. It has a supply voltage of 24VDC and 3 outputs. It provides reinforcement and increases the number of safety contacts on a base device. The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails. It has a power rating of 2W and is available in a clamp terminal type.

Features and Benefits

DIN rail mounting
The extension blocks provide reinforcement and increase the number of safety contacts on a base device
The contact extension block expands an existing electrical circuit. Safety is still guaranteed, even if a component fails
Removable terminals with connection via spring terminals
Operating temperature ranges between -10°C and 55°C

Certifications

EN60204-1
EN62061
EN954-1
VDE0113-1
CSA certified
UL listed
TUV certified
CCC certified

Specifikationer
Attribute Value
Series PNOZsigma
Type Output Module
For Use With PNOZ
Supply Voltage 24 V dc
Normal State Configuration 2NO
Number of Outputs 3
Power Rating 2 W
Mounting Style DIN Rail
Terminal Type Clamp
Dimensions 98 x 12.5 x 120 mm
14 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
1 207,98 kr
(exkl. moms)
1 509,98 kr
(inkl. moms)
Enheter
Per unit
1 +
1 207,98 kr
