- RS-artikelnummer:
- 352-200
- Tillv. art.nr:
- 457842/1/MA
- Tillverkare / varumärke:
- NSF
40 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
295,60 kr
(exkl. moms)
369,50 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 295,60 kr |
10 - 49 | 266,17 kr |
50 - 99 | 221,97 kr |
100 - 249 | 206,98 kr |
250 + | 189,26 kr |
- RS-artikelnummer:
- 352-200
- Tillv. art.nr:
- 457842/1/MA
- Tillverkare / varumärke:
- NSF
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer
Miniature Shaft Assembly & Wafers
Miniature Shaft Assembly
Double-spring detent mechanisms in miniature sizeLife expectancy >100000 detent operations30° indexing and adjustable end stopsTakes up to 8 miniature wafers (the capacity is reduced if spacers and/or screens are used)6mm diameter shaft and M10 x 0.75 mounting bushesOverall length 94mm, front shaft length 12mm Optional accessories are available for to suit individual requirements

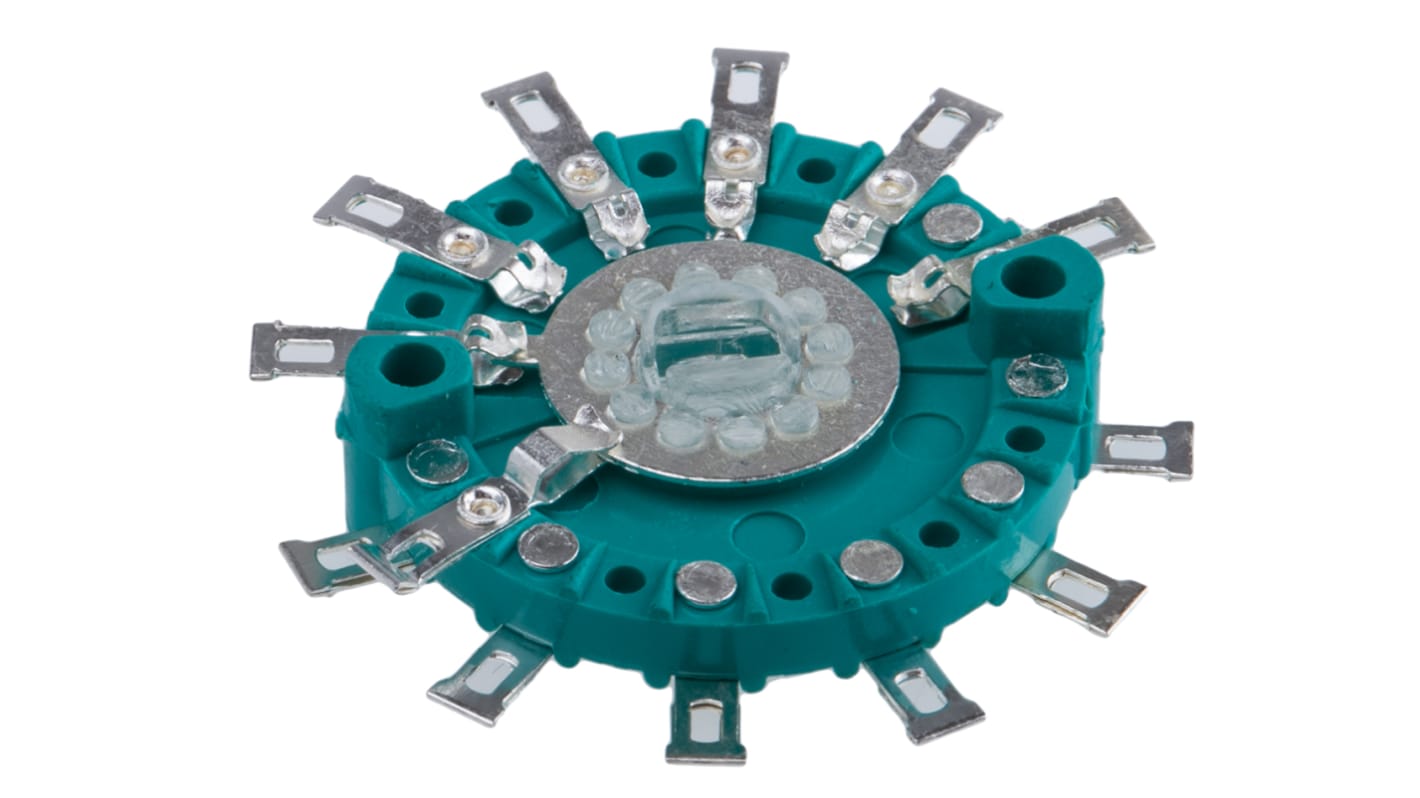

Wafers
Specifikationer
Attribute | Value |
---|---|
Diameter | 25.4mm |
Number of Switch Positions | 6 |
Voltage Rating | 300V ac/dc |
Number of Contacts | 2 |
Contact Configuration | DP6T |
Contact Current Rating | 150 mA @ 250 V ac |
Contact Material | Silver Plated Brass |
Contact Type | Non-Shorting |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +100°C |
Mounting Type | Panel Mount |
Terminal Type | Solder |
