EnOcean USB 300 RF Transceiver Module 868 MHz

  • RS-artikelnummer 179-1182
  • Tillv. art.nr USB 300
  • Tillverkare / varumärke EnOcean
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): HU
Produktdetaljer

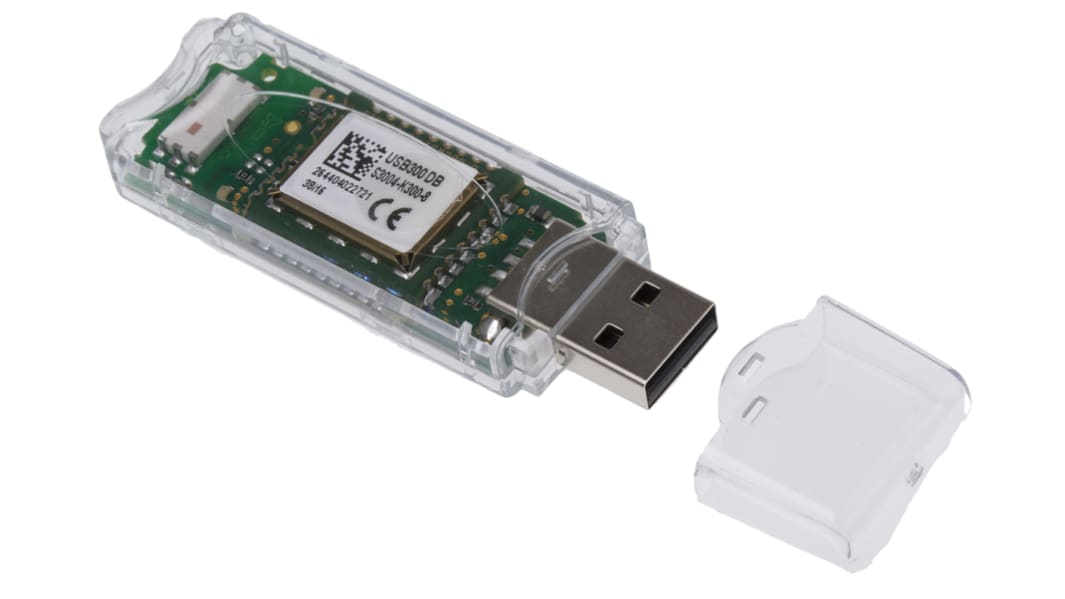

USB Gateway Transceiver Module USB 300

USB 300 is a small USB stick which connects PCs and smart home servers to EnOcean wireless products. USB 300 is equipped with the TCM 310 transceiver gateway board and provides a bi-directional interface between an EnOcean ISM-band wireless channel and a USB serial bus. Radio messages are sent and received via an externally connected USB host. The USB 300 also provides signal strength information. Additional control commands can be sent from the host to USB 300, e.g. to configure repeater functionality.

Operating frequency: 868.3MHz (USB 300 RS 786-3227), 315MHz (USB 300C RS 786-3221)
Data rate: 125kbps
Modulation: ASK
Internal chip antenna (USB 300), whip antenna (USB 300C)
Powered via USB connector
Operating temperature range: 0 to +40°C
Housing size: 70 x 23 x 9mm (including transport cap)
Virtual COM Port driver (FTDI) for Windows, Linux and OSX
Radio Regulations: R&TTE EN 300 220 (CE) (USB 300), FCC CFR-47 Part15 (USB 300C)
Applications: Sensing and control for domestic, commercial and industrial environments via the Internet of Things (IoT)

Specifikationer
Attribute Value
Module Type Transceiver
Supported Frequency Bands 868 MHz
Maximum RF Data Rate 125kbit/s
Supported Bus Interfaces UART, USB
Dimensions 66 x 23 x 9mm
Height 9mm
Length 66mm
Maximum Operating Temperature +40°C
Minimum Operating Temperature 0°C
Width 23mm
Tillfälligt slut i lager – restorder för leverans 2020-07-30
Pris (ex. moms) Each (In a Tray of 100)
457,97 kr
(exkl. moms)
572,46 kr
(inkl. moms)
Enheter
Per unit
Per Tray*
100 - 200
457,97 kr
45 797,00 kr
300 - 400
448,811 kr
44 881,10 kr
500 - 900
439,835 kr
43 983,50 kr
1000 - 1900
431,038 kr
43 103,80 kr
2000 +
422,418 kr
42 241,80 kr
