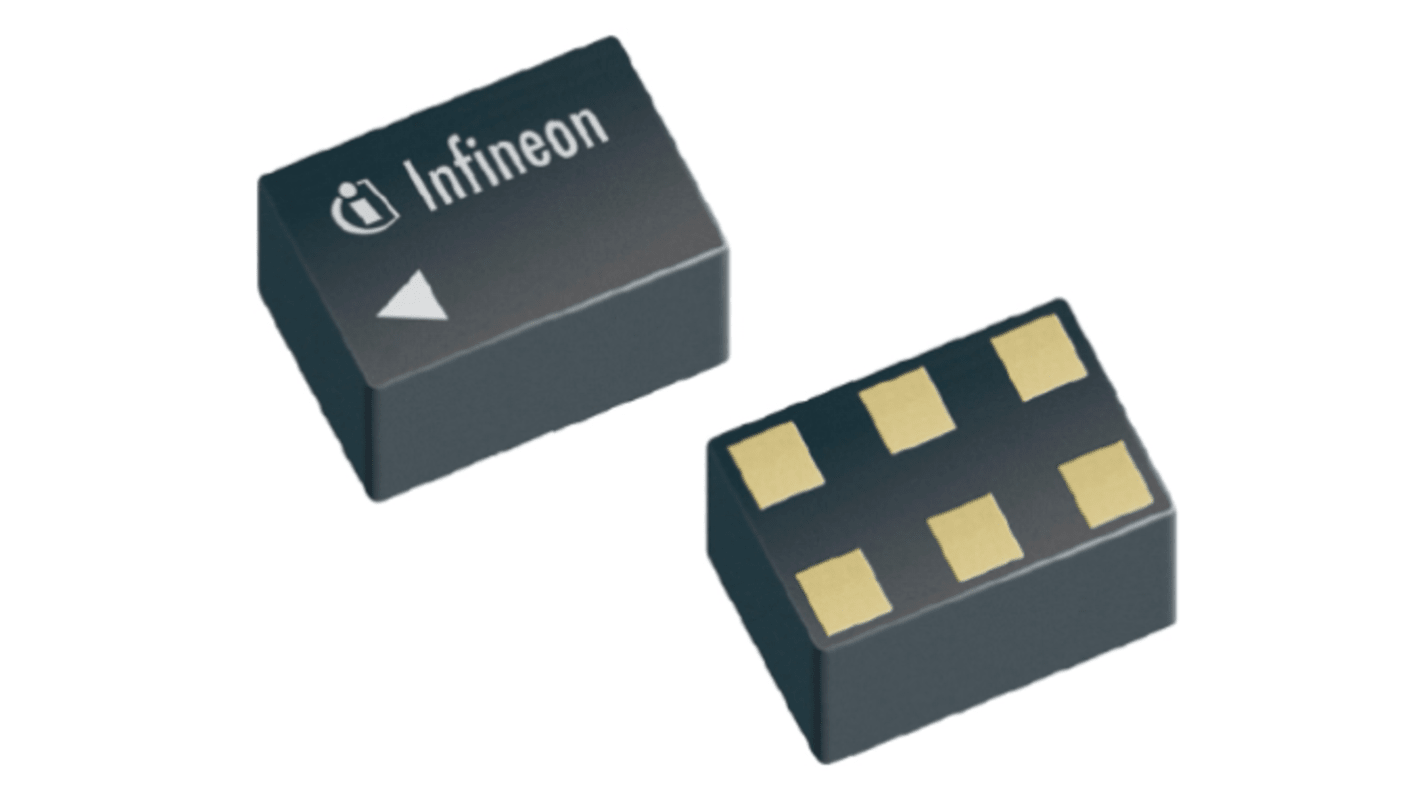

BGA125N6E6327XTSA1 Infineon, RF Amplifier Low Noise, 22.2 dB 1300 MHz, 6-Pin PG-TSNP-6
- RS-artikelnummer:
- 228-6513
- Tillv. art.nr:
- BGA125N6E6327XTSA1
- Tillverkare / varumärke:
- Infineon
60000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 15000)
1,672 kr
(exkl. moms)
2,09 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 15000 + | 1,672 kr | 25 080,00 kr |
- RS-artikelnummer:
- 228-6513
- Tillv. art.nr:
- BGA125N6E6327XTSA1
- Tillverkare / varumärke:
- Infineon
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The Infineon BGA125N6 is low noise amplifier designed to enhance GNSS signal sensitivity for band L2/L5 especially in wearables and mobile cellular IoT applications. With the very good performance it ensures high system sensitivity. The ultra low power consumption of 1.5mW preserves valuable battery power, ideal for small battery powered GNSS devices.
Peration frequencies is 1164 to 1300 MHz
Ultra low current consumption is 1.3 mA
Wide supply voltage range is 1.1 V to 3.3 V
High insertion power gain is 20.0 dB
Ultra low current consumption is 1.3 mA
Wide supply voltage range is 1.1 V to 3.3 V
High insertion power gain is 20.0 dB
Specifikationer
Attribute | Value |
|---|---|
| Amplifier Type | Low Noise |
| Typical Power Gain | 22.2 dB |
| Typical Noise Figure | 0.8dB |
| Maximum Operating Frequency | 1300 MHz |
| Package Type | PG-TSNP-6 |
| Pin Count | 6 |
| Series | BGA125N6 |
