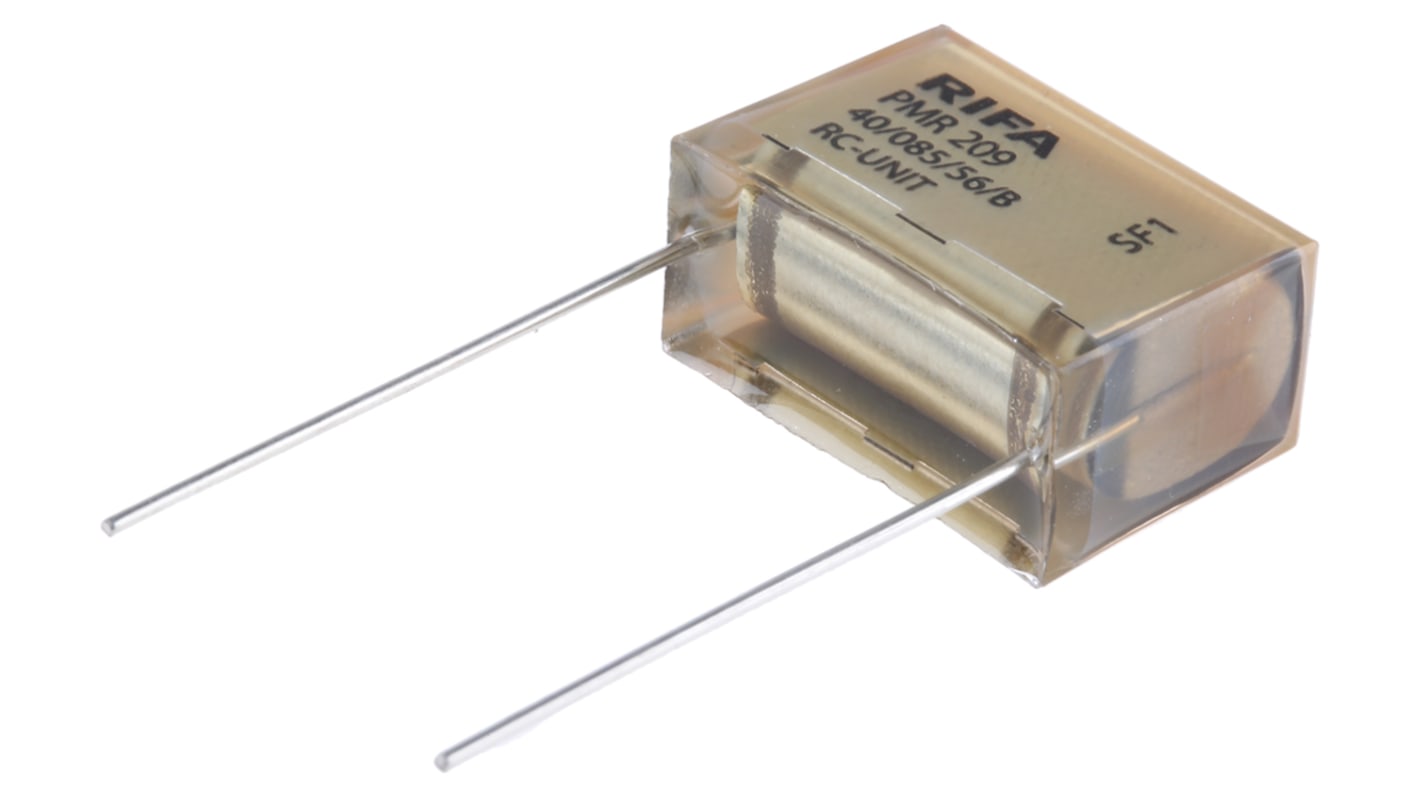

KEMET RC Capacitor 220nF 220Ω Tolerance ±20% 250 V ac, 630 V dc 1-way Through Hole PMR209 Series

  • RS-artikelnummer 173-1826
  • Tillv. art.nr PMR209MC6220M220R30
  • Tillverkare / varumärke KEMET
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

PMR 209 Series

Metallised Paper X2, 250Vac
RC unit suitable for use in DC & AC applications for contact protection interference suppression of contacts and transient suppression
Small dimensions
Self-extinguishing encapsulation
Excellent self healing properties ensuring long life even when subject to frequent over voltages
Impregnated paper ensures excellent stability and outstanding reliability, especially in applications with continuous operation

Approvals

SEMKO, NEMKO, DEMKO, UL,VDE

Warning

  • These devices are designed for connecting directly across a mains supply but should NOT be used in positions where failure of the capacitor would expose anyone to electric shock.
Specifikationer
Attribute Value
Series PMR209
Capacitance 220 nF
Voltage 250 V ac, 630 V dc
Resistance 220Ω
Mounting Type Through Hole
Dielectric Metallised Paper
Number of Elements 1
Capacitance Tolerance ±20%
Resistance Tolerance ±30%
Dimensions 24 x 11.3 x 16.5mm
Depth 11.3mm
Height 16.5mm
Length 24mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Tillfälligt slut i lager – restorder för leverans 2021-01-22
Pris (ex. moms) Each (In a Bag of 150)
24,708 kr
(exkl. moms)
30,885 kr
(inkl. moms)
Enheter
Per unit
Per Bag*
150 - 150
24,708 kr
3 706,20 kr
300 +
21,001 kr
3 150,15 kr
