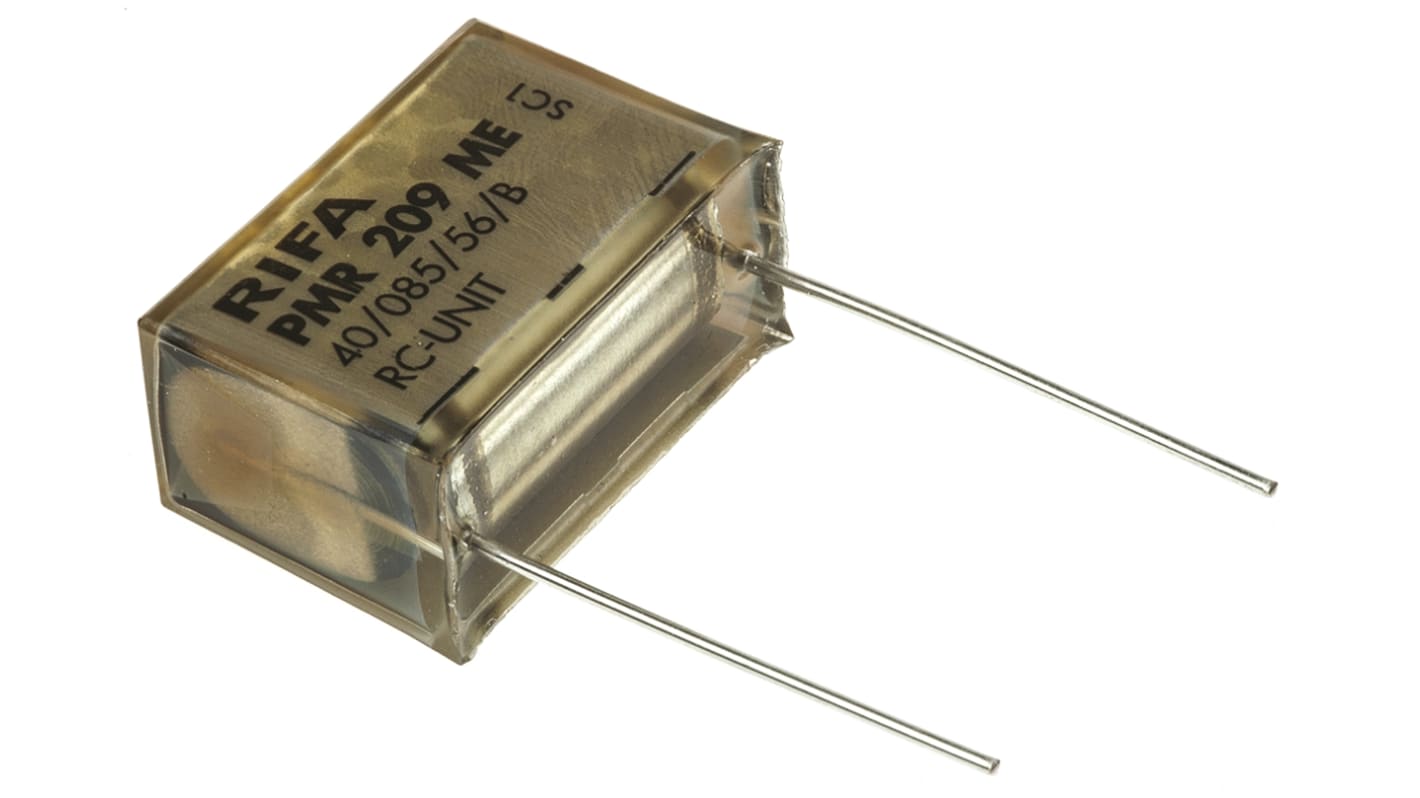

KEMET RC Capacitor 470nF 100Ω Tolerance ±20% 250 V ac, 630 V dc 1-way Through Hole PMR209 Series

  • RS-artikelnummer 172-6734
  • Tillv. art.nr PMR209ME6470M100R30
  • Tillverkare / varumärke KEMET
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

PMR 209 Series

Metallised Paper X2, 250Vac
RC unit suitable for use in DC & AC applications for contact protection interference suppression of contacts and transient suppression
Small dimensions
Self-extinguishing encapsulation
Excellent self healing properties ensuring long life even when subject to frequent over voltages
Impregnated paper ensures excellent stability and outstanding reliability, especially in applications with continuous operation

Approvals

SEMKO, NEMKO, DEMKO, UL,VDE

Warning

  • These devices are designed for connecting directly across a mains supply but should NOT be used in positions where failure of the capacitor would expose anyone to electric shock.
Specifikationer
Attribute Value
Series PMR209
Capacitance 470 nF
Voltage 250 V ac, 630 V dc
Dielectric Metallised Paper
Mounting Type Through Hole
Number of Elements 1
Capacitance Tolerance ±20%
Resistance Tolerance ±30%
Dimensions 30.5 x 15.3 x 22mm
Height 22mm
Depth 15.3mm
Length 30.5mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Tillfälligt slut i lager – restorder för leverans 2020-06-26
Pris (ex. moms) Each (In a Bag of 75)
41,379 kr
(exkl. moms)
51,724 kr
(inkl. moms)
Enheter
Per unit
Per Bag*
75 - 75
41,379 kr
3 103,425 kr
150 +
35,173 kr
2 637,975 kr
