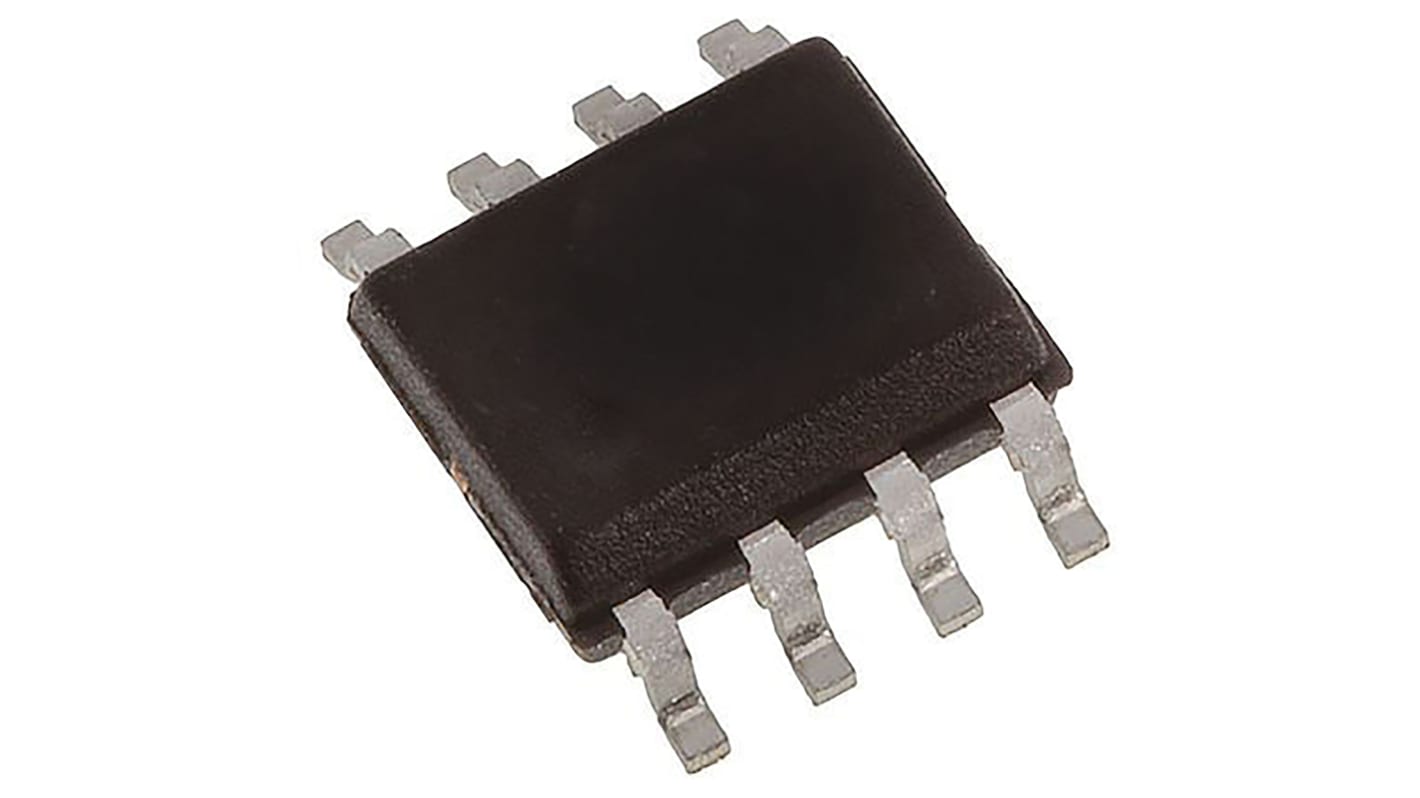

Texas Instruments UC3843D8, PWM Controller, 500 kHz 8-Pin, SOIC
- RS-artikelnummer:
- 661-5336
- Tillv. art.nr:
- UC3843D8
- Tillverkare / varumärke:
- Texas Instruments
Denna produkt har utgått
- RS-artikelnummer:
- 661-5336
- Tillv. art.nr:
- UC3843D8
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Flyback Controller, Current Control, UC18/UC28/UC38 Series, Texas Instruments
The isolated-flyback power supply controller provides Constant-Voltage (CV) and Constant-Current (CC) output regulation to improve transient response to large load steps. Primary-Side Regulation (PSR) eliminates the need for an Optocoupler.
Flyback Controllers, Texas Instruments
Current-Mode and Voltage-Mode PWM Controller
Primary-Side Regulation
Peak Power Mode
Low Power
Primary-Side Regulation
Peak Power Mode
Low Power
Specifikationer
Attribute | Value |
|---|---|
| Maximum Switching Frequency | 500 kHz |
| Output Current | 1 A |
| Number of Outputs | 1 |
| Control Method | Current |
| Fall Time | 50ns |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Rise Time | 50ns |
| Topology | Boost, Buck, Flyback, Forward |
| Pin Count | 8 |
| Dimensions | 4.9 x 3.91 x 1.58mm |
| Maximum Duty Cycle | 100% |
| PWM Controller Type | Current Mode |
| Length | 4.9mm |
| Width | 3.91mm |
| Height | 1.58mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
