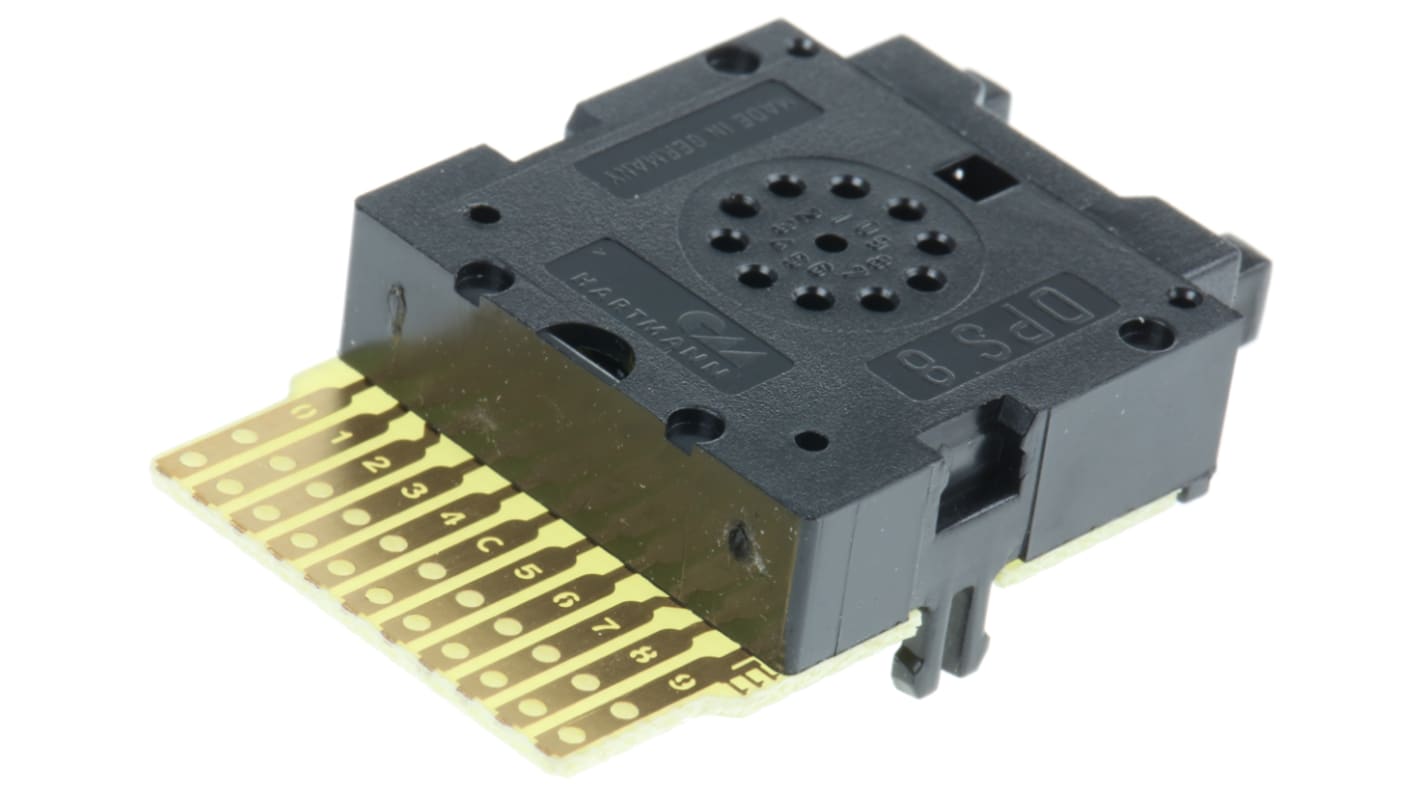

Pushwheel Switch BCD Pushwheel Through Hole Panel Mount 100mΩ 10-way

  • RS-artikelnummer 360-9694
  • Tillv. art.nr DPS8-111-AK2
  • Tillverkare / varumärke Hartmann
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

DPS8 Miniature Rear Mounting

Solder terminals
Gold-plated break-before-make contact.
Two up/down buttons
Decade, BCD+complement
H 24mm, W 8mm, D 35mm
Cheeks available separately
Cut out, 19 by (no. of switches x 8 + 9) mm

//media.rs-online.com/t_line/LEDGESW1-10.gif

Approvals

7777

Specifikationer
Attribute Value
Output Coding BCD
Switch Readout 0 to 9
Actuator Type Pushwheel
Terminal Type Through Hole
Mounting Type Panel Mount
Contact Resistance 100mΩ
Contact Material Gold Over Nickel Plated Copper Alloy
Number of Switch Positions 10
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Current Rating 100 mA @ 40 V dc
Operating Temperature Range -20 +80°C
67 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
113,89 kr
(exkl. moms)
142,36 kr
(inkl. moms)
Enheter
Per unit
1 - 24
113,89 kr
25 - 99
105,97 kr
100 - 249
96,95 kr
250 - 499
80,89 kr
500 +
77,41 kr
