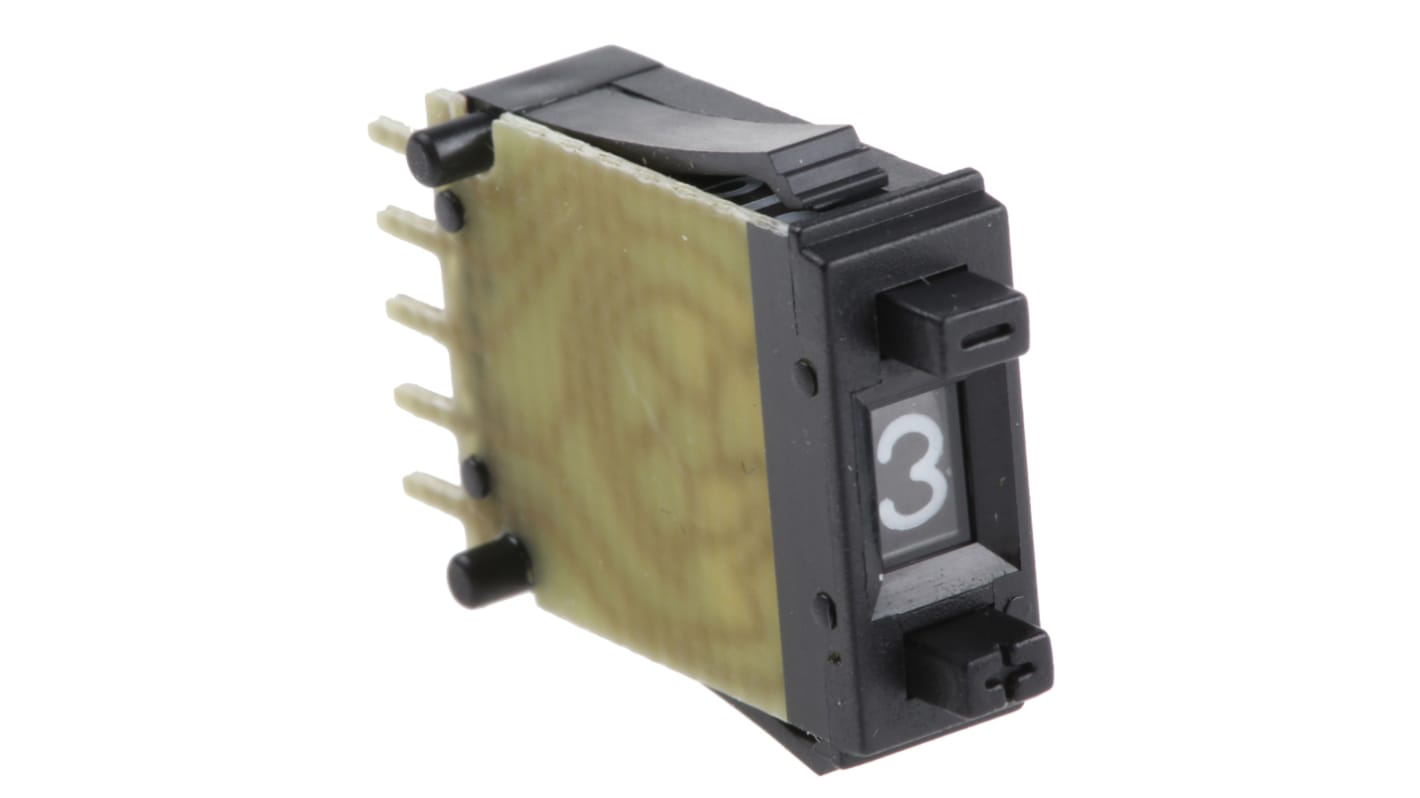

Pushwheel Switch BCD Pushwheel Through Hole Panel Mount 100mΩ 10-way

  • RS-artikelnummer 118-7710
  • Tillv. art.nr SH6-131-AKK
  • Tillverkare / varumärke Hartmann
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DE
Produktdetaljer

Switchhart SH6 code switches

Compact coding switches.
BCD coding, display 0 → 9.

//media.rs-online.com/t_line/LF118770-10.gif
Specifikationer
Attribute Value
Output Coding BCD
Actuator Type Pushwheel
Terminal Type Through Hole
Mounting Type Panel Mount
Contact Resistance 100mΩ
Mechanical Life 100000Operations
Number of Switch Positions 10
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
Operating Temperature Range -20 +80°C
Current Rating 100 mA @ 40 V dc
8 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
80,48 kr
(exkl. moms)
100,60 kr
(inkl. moms)
Enheter
Per unit
1 - 14
80,48 kr
15 - 49
74,82 kr
50 - 99
56,96 kr
100 - 249
56,36 kr
250 +
41,28 kr
