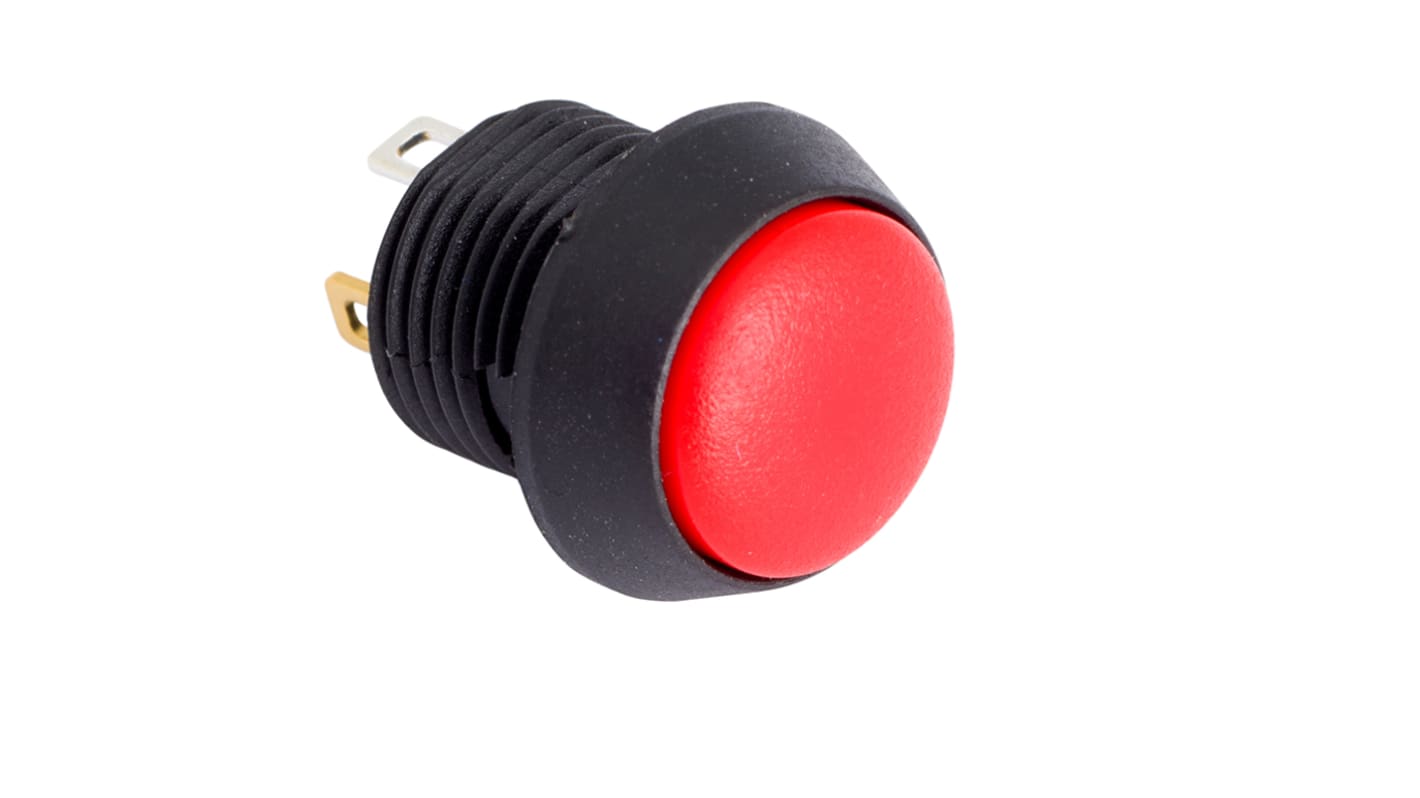

EOZ Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, Red LED, 5V, IP67
- RS-artikelnummer:
- 913-1728
- Tillv. art.nr:
- FL12LR5
- Tillverkare / varumärke:
- EOZ
16 I lager för avsändande samma dag
495 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
150,43 kr
(exkl. moms)
188,04 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 150,43 kr |
| 5 - 24 | 134,67 kr |
| 25 - 49 | 114,32 kr |
| 50 - 99 | 106,56 kr |
| 100 + | 102,73 kr |
- RS-artikelnummer:
- 913-1728
- Tillv. art.nr:
- FL12LR5
- Tillverkare / varumärke:
- EOZ
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
FL Series Push Button Switches, Sealed and Vandal Resistant
The FL series from EOZ is the first small sized push button in the market to feature full face illumination. The entire front cap of the unit lights up from pre-installed 5 V LED’s. The range includes single colour illumination, dual colour illumination and non-illuminated options. The dual colour illumination options have a milky white cap when not illuminated. All the single illuminated versions have a cap which matches the illuminated colour.
They have been designed to fit into the industry standard 12 mm and 13.5 mm panel cut outs so they fit most applications. As well as being IP67 rated, they are also vandal resistant by nature giving all round protection.
They have been designed to fit into the industry standard 12 mm and 13.5 mm panel cut outs so they fit most applications. As well as being IP67 rated, they are also vandal resistant by nature giving all round protection.
Features
Ingress protection: IP67
Operating temperature range: -40 to +85°C
Panel thickness: 1 mm to 6 mm
Terminal type: Plug-in 2.8 x 0.5 mm
Contact terminals: Gold plated nickel
LED terminals: Silver plated nickel
Operating temperature range: -40 to +85°C
Panel thickness: 1 mm to 6 mm
Terminal type: Plug-in 2.8 x 0.5 mm
Contact terminals: Gold plated nickel
LED terminals: Silver plated nickel
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 12mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Red |
| Contact Configuration | SPST |
| Voltage Rating | 5V |
| Push Button Style | Round |
| LED Colour | Red |
| IP Rating | IP67 |
| Contact Current Rating | 65 mA |
| Contact Material | Gold Plated Nickel |
| Manufacturer Part No. | FL12LR5 |
| Case Colour | Black |
| Terminal Type | Plug In |
