Otto Double Pole Double Throw (DPDT) Momentary Push Button Switch, IP64, 12 (Dia.)mm, Panel Mount, 28V dc

  • RS-artikelnummer 737-3796
  • Tillv. art.nr P9-113195
  • Tillverkare / varumärke Otto
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): US
Produktdetaljer

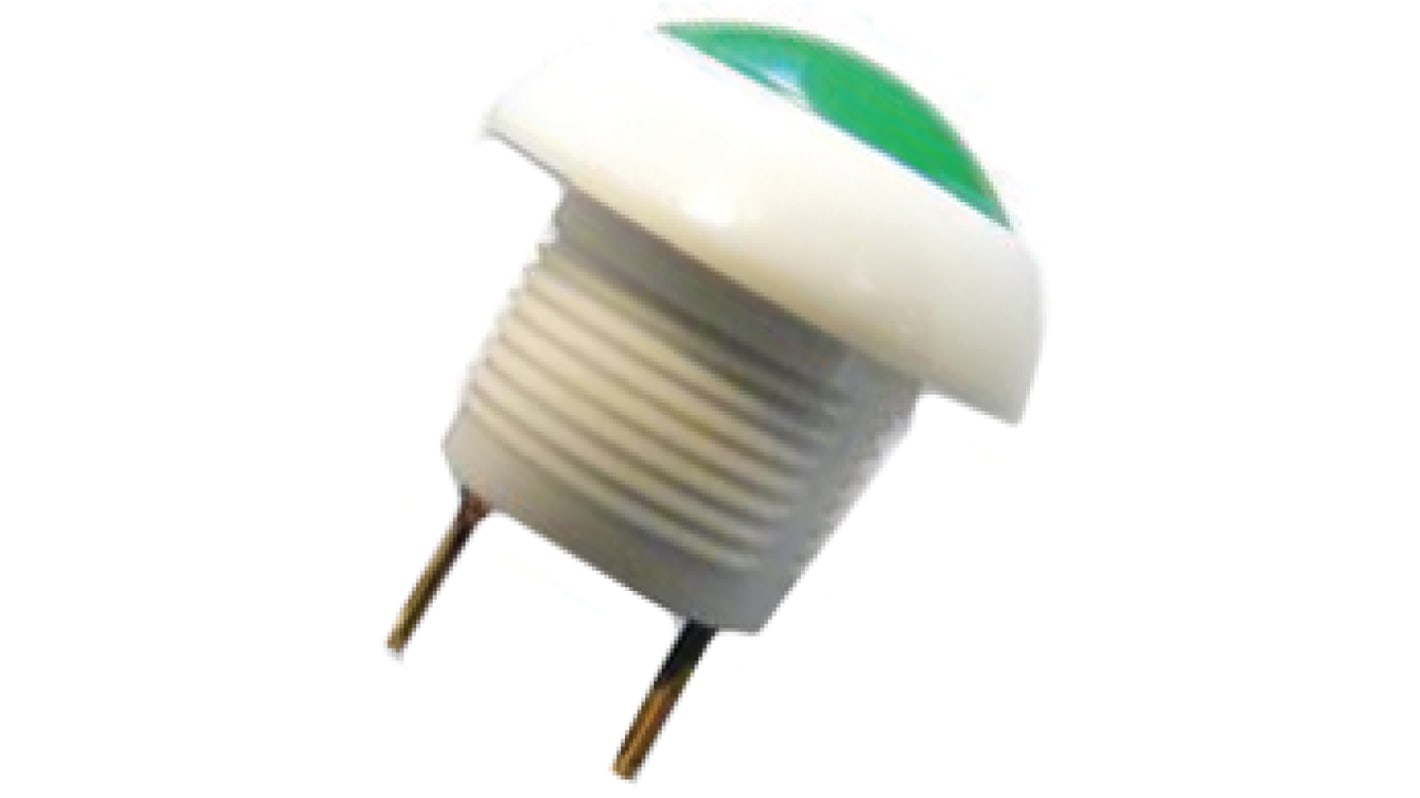

Otto P9 Series - White Body Push Button Switch

Momentary action P9 series push button switches feature a contoured dome style push button in either a low button profile or a high button profile with a threaded case for hex nut mounting and a short behind panel depth of approximately 12mm. At a full rated load of 5 amps resistive or 3 amps inductive the P9 life is approximately one million mechanical operations with an electrical life of 25,000 operations. The P9 series has a low contact resistance for low level switching capability as well as being a precision designed switch for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive rugged push button switches are required.

White bezel and body with a choice of flush and raised dome button cap styles
Choice of button cap colours
Sealed to IP64
Wiithstands extreme shock & vibration
Positive tactile feedback contact transfer
15/32-32 threaded body

Note

For black body versions see stock number 433-3168 typically.
For panel sealing use gasket stock number 737-3863.

Approvals

UL; CSA

Specifikationer
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated No
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Size 12 (Dia.)mm
Panel Cut Out Diameter 12mm
IP Rating IP64
Actuator Colour Green
Voltage Rating 28V dc
Contact Current Rating 5 A @ 28 V dc
Actuator Shape Dome
Terminal Type Solder
Actuator Type Button
Case Colour White
117 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
109,35 kr
(exkl. moms)
136,69 kr
(inkl. moms)
Enheter
Per unit
1 - 9
109,35 kr
10 - 49
98,83 kr
50 - 99
89,80 kr
100 +
87,92 kr
