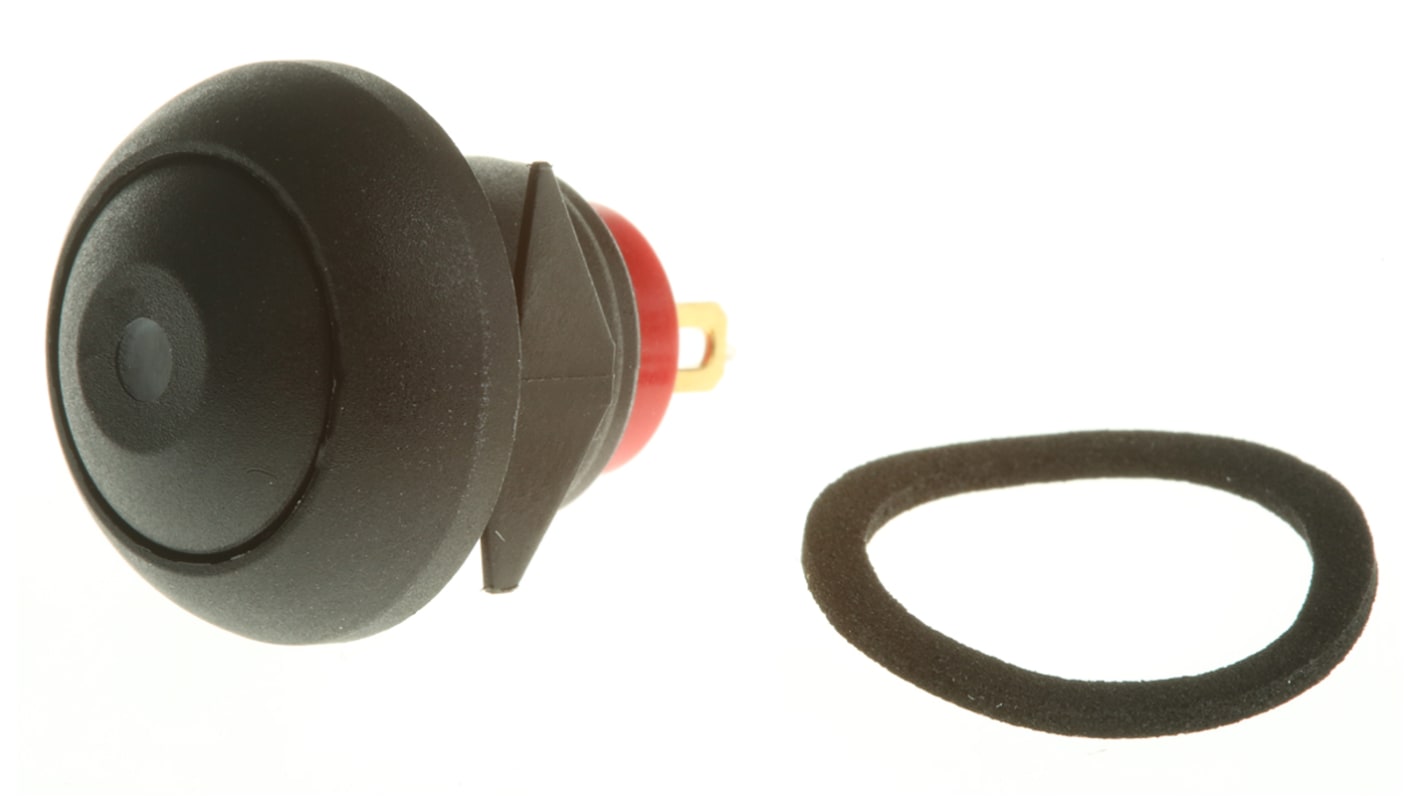

RS PRO Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, Green LED, 32/50/125V ac,
- RS-artikelnummer:
- 734-6697
- Tillverkare / varumärke:
- RS PRO
129 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
53,81 kr
(exkl. moms)
67,26 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 53,81 kr |
10 - 24 | 52,18 kr |
25 - 49 | 50,65 kr |
50 - 99 | 47,92 kr |
100 + | 44,20 kr |
- RS-artikelnummer:
- 734-6697
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Sub-Miniature Illuminated Push Button Switches
Illuminated push button switches available with threaded bushing or snap in panel mounting. Each switch has centre spot LED illumination.
Operating force: 2N - 5N
Contact bounce: 10 ms
Mechanical life: 1000000 cycles
Soldering: 350°C maximum for 5 seconds
Contact bounce: 10 ms
Mechanical life: 1000000 cycles
Soldering: 350°C maximum for 5 seconds
Specifikationer
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | Yes |
Panel Cut Out Diameter | 13.6mm |
Mounting Type | Panel Mount |
Push Button Colour | Black |
Contact Configuration | SPST |
Voltage Rating | 32/50/125V ac |
Push Button Style | Dome |
LED Colour | Green |
IP Rating | IP67 |
Contact Current Rating | 400 mA @ 32 V ac |
Contact Material | Gold Plated Silver |
Manufacturer Part No. | PAS6B1M1CES2-5L6 |
Contact AC Voltage Rating | 32 V, 125V |
Case Colour | Black |
Contact DC Voltage Rating | 50V |
Terminal Type | Solder |
