- RS-artikelnummer:
- 706-4073
- Tillv. art.nr:
- KFB2ANA1BBB
- Tillverkare / varumärke:
- ZF
- RS-artikelnummer:
- 706-4073
- Tillv. art.nr:
- KFB2ANA1BBB
- Tillverkare / varumärke:
- ZF
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

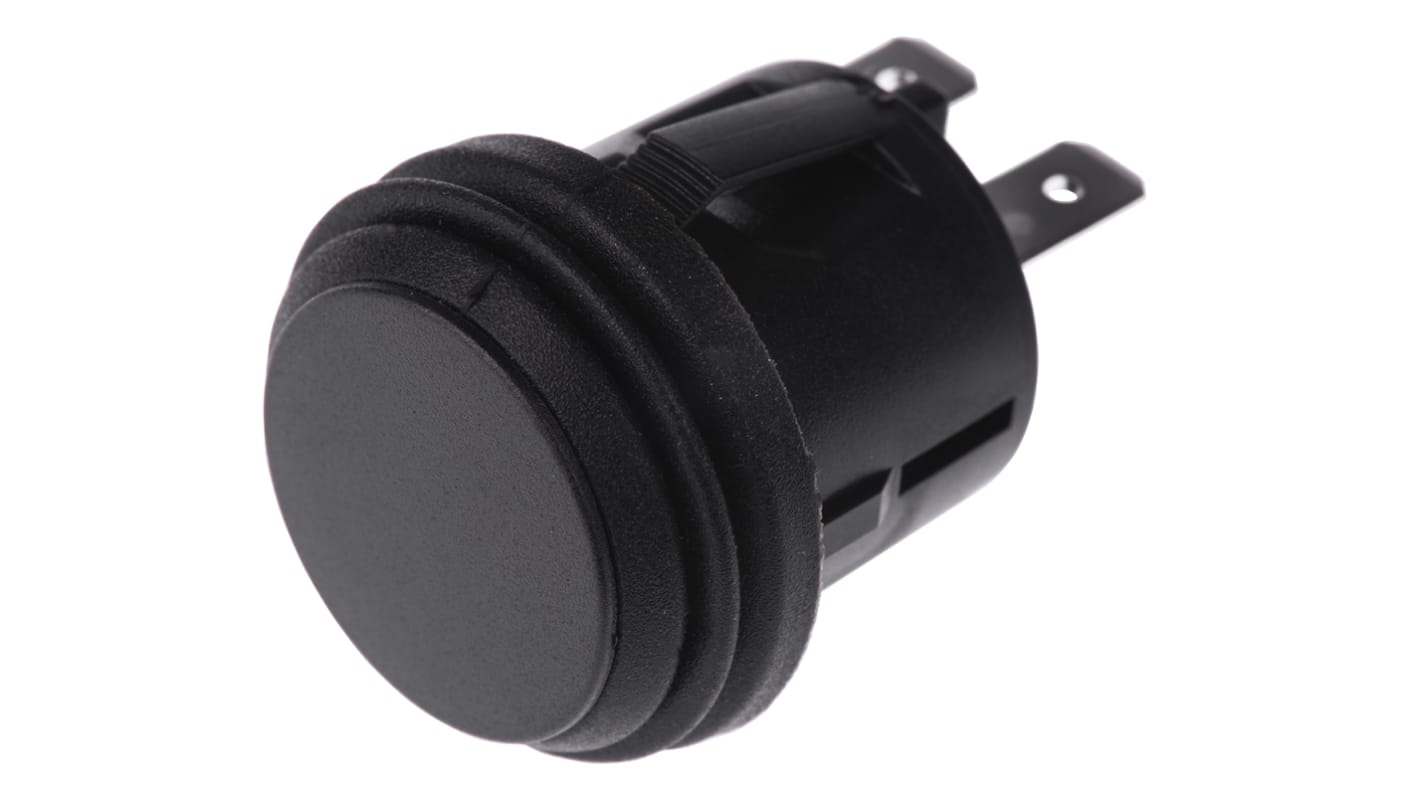

KF Series Waterproof Pushbutton Switches
These sealed waterproof pushbutton switches are available with a choice of pole, throw and switch options, making them suitable for a large range of applications- from vehicles and outdoor machinery to medical devices. Certified to IP65 requirements for water and dust resistance.
Features and Benefits:
Available in single- or double-pole
Lighted and non-lighted versions
Maintained-action and momentary options
Snap-in mounting
Mechanical life: 100,000 cycles
Available in single- or double-pole
Lighted and non-lighted versions
Maintained-action and momentary options
Snap-in mounting
Mechanical life: 100,000 cycles
The KF Series includes:
Stock number 706-4058 is a black pushbutton switch (On-Off)
Stock number 706-4060 is a green illuminated pushbutton switch (Maintained)
Stock number 706-4064 is a black pushbutton switch ((On)-Off)
Stock number 706-4067 is a red illuminated pushbutton switch (Maintained)
Stock number 706-4070 is a red illuminated pushbutton switch (Maintained)
Stock number 706-4073 is a black pushbutton switch (Maintained)
Stock number 706-4076 is a green illuminated pushbutton switch (Maintained)
Stock number 706-4060 is a green illuminated pushbutton switch (Maintained)
Stock number 706-4064 is a black pushbutton switch ((On)-Off)
Stock number 706-4067 is a red illuminated pushbutton switch (Maintained)
Stock number 706-4070 is a red illuminated pushbutton switch (Maintained)
Stock number 706-4073 is a black pushbutton switch (Maintained)
Stock number 706-4076 is a green illuminated pushbutton switch (Maintained)
Specifikationer
Attribute | Value |
---|---|
Switch Operation | Latching |
Illuminated | No |
Panel Cut Out Diameter | 20.2mm |
Mounting Type | Panel Mount |
Push Button Colour | Black |
Contact Configuration | SPDT |
Voltage Rating | 125V ac |
Push Button Style | Round |
IP Rating | IP65 |
Contact Current Rating | 20 A @ 14 V dc |
Contact Material | Silver Alloy |
Case Colour | Black |
Manufacturer Part No. | KFB2ANA1BBB |
Terminal Type | Tab |
