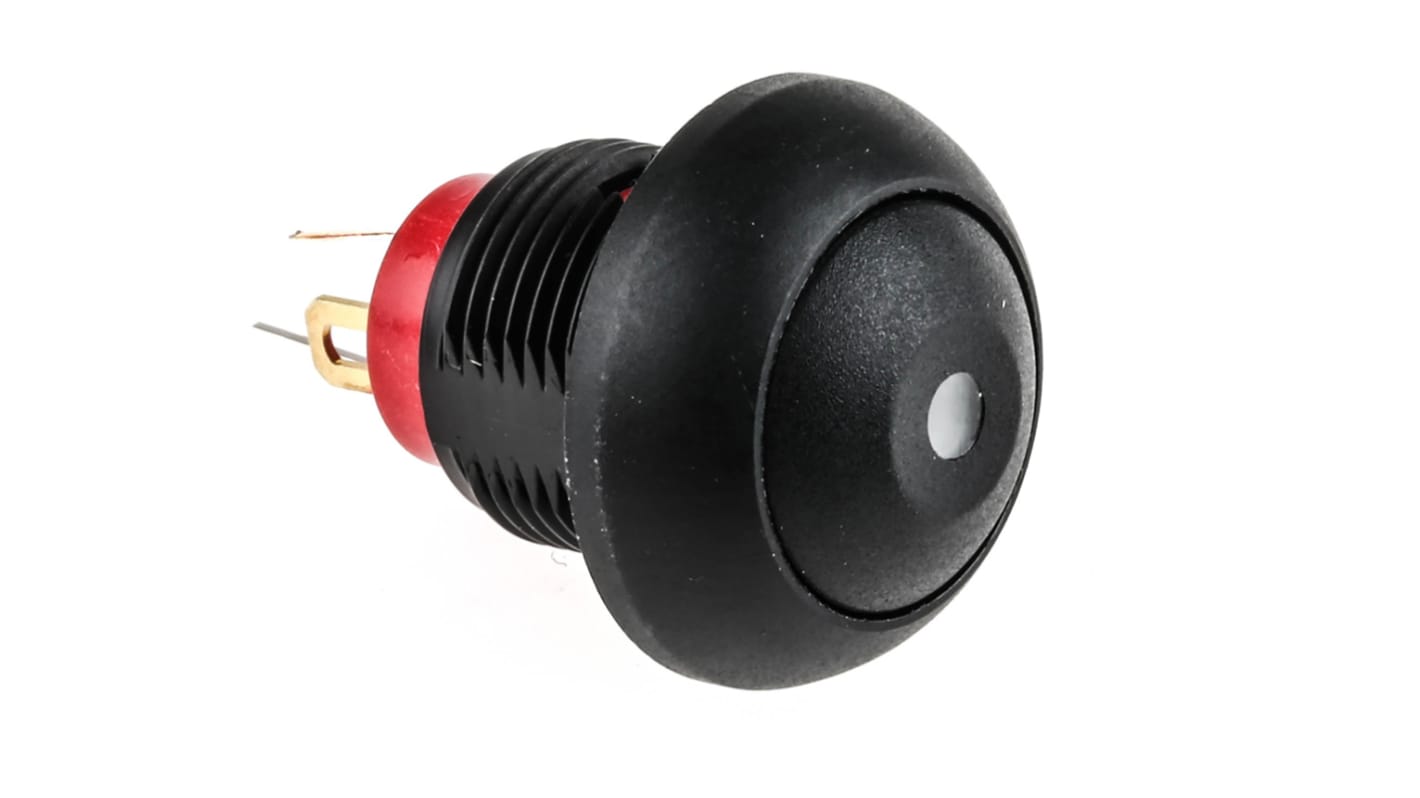

KNITTER-SWITCH Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 12.9mm Cutout, SPST, Red LED, IP67
- RS-artikelnummer:
- 702-3577
- Tillv. art.nr:
- DPWL 1CGKR
- Tillverkare / varumärke:
- KNITTER-SWITCH
26 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
55,14 kr
(exkl. moms)
68,92 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 55,14 kr |
10 - 49 | 52,73 kr |
50 - 99 | 38,18 kr |
100 - 249 | 35,88 kr |
250 + | 33,80 kr |
- RS-artikelnummer:
- 702-3577
- Tillv. art.nr:
- DPWL 1CGKR
- Tillverkare / varumärke:
- KNITTER-SWITCH
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Miniature Sealed Pushbutton Switches - DPW Series
Waterproof
Thermoplastic case
With or without a superbright LED
Lead-free solderable
Long mechanical life with a minimum of 1000000 cycles
Thermoplastic case
With or without a superbright LED
Lead-free solderable
Long mechanical life with a minimum of 1000000 cycles
Note
LED versions require a resistor to limit LED current to approx 20mA, typically 1,200 Ohms 0.5W, see Stock No 7078233 for 24V operation.
Specifikationer
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | Yes |
Panel Cut Out Diameter | 12.9mm |
Mounting Type | Panel Mount |
Push Button Colour | Black |
Contact Configuration | SPST |
Push Button Style | Dome |
LED Colour | Red |
IP Rating | IP67 |
Contact Current Rating | 400 mA @ 32 V ac |
Contact Material | Gold Plated Silver |
Manufacturer Part No. | DPWL 1CGKR |
Case Colour | Black |
Terminal Type | Solder |
