- RS-artikelnummer:
- 690-6806
- Tillv. art.nr:
- K84-603.3813S
- Tillverkare / varumärke:
- EAO
- RS-artikelnummer:
- 690-6806
- Tillv. art.nr:
- K84-603.3813S
- Tillverkare / varumärke:
- EAO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer

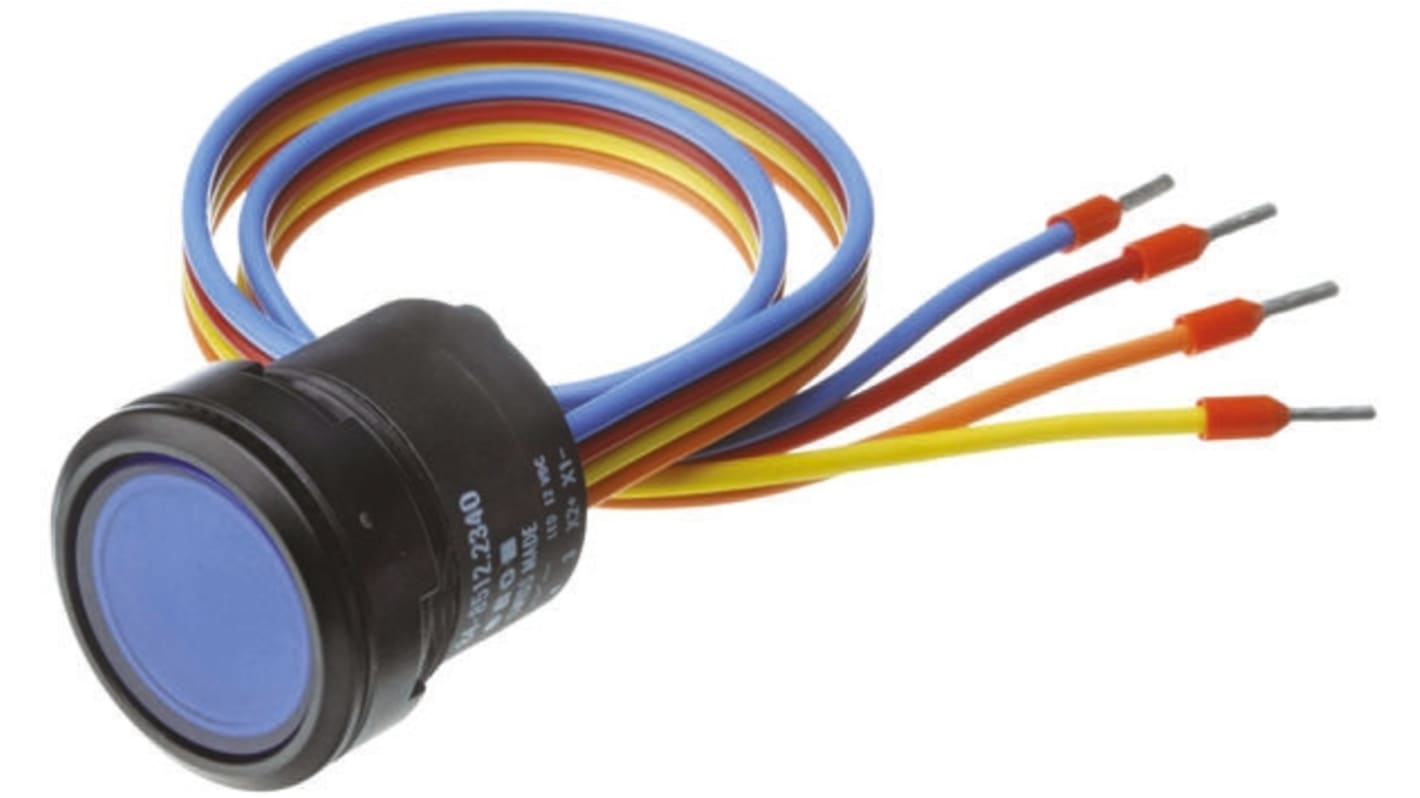

Full Face Flush Illuminated Switch
Brought to you by EAO, this selection of illuminated push-button switches feature full-face, high brightness LED illumination. Low profile with a flush fitting, these illuminated switches also assure a high degree of environmental protection.
Features and Benefits:
IP rating: IP67
Contact rating: 200mA @ 42Vac/dc (Max. power 2W)
Low profile switch; 2mm high
Depth behind panel: 31mm
LED Voltage: 24V dc
Gold plated N/O contacts
Contact rating: 200mA @ 42Vac/dc (Max. power 2W)
Low profile switch; 2mm high
Depth behind panel: 31mm
LED Voltage: 24V dc
Gold plated N/O contacts
Specifikationer
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | Yes |
Panel Cut Out Diameter | 22.5mm |
Mounting Type | Panel Mount |
Push Button Colour | Blue |
Contact Configuration | SPST |
Push Button Style | Round |
IP Rating | IP67 |
Contact Current Rating | 200 mA @ 42 V dc |
Contact Material | Gold Plated |
Manufacturer Part No. | K84-603.3813S |
Terminal Type | Flying Lead |
