EOZ Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPDT, Yellow LED, IP65
- RS-artikelnummer:
- 690-3400
- Tillv. art.nr:
- R19FFSSPAGDY6
- Tillverkare / varumärke:
- EOZ
40 I lager för avsändande samma dag
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
312,75 kr
(exkl. moms)
390,94 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 312,75 kr |
- RS-artikelnummer:
- 690-3400
- Tillv. art.nr:
- R19FFSSPAGDY6
- Tillverkare / varumärke:
- EOZ
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer

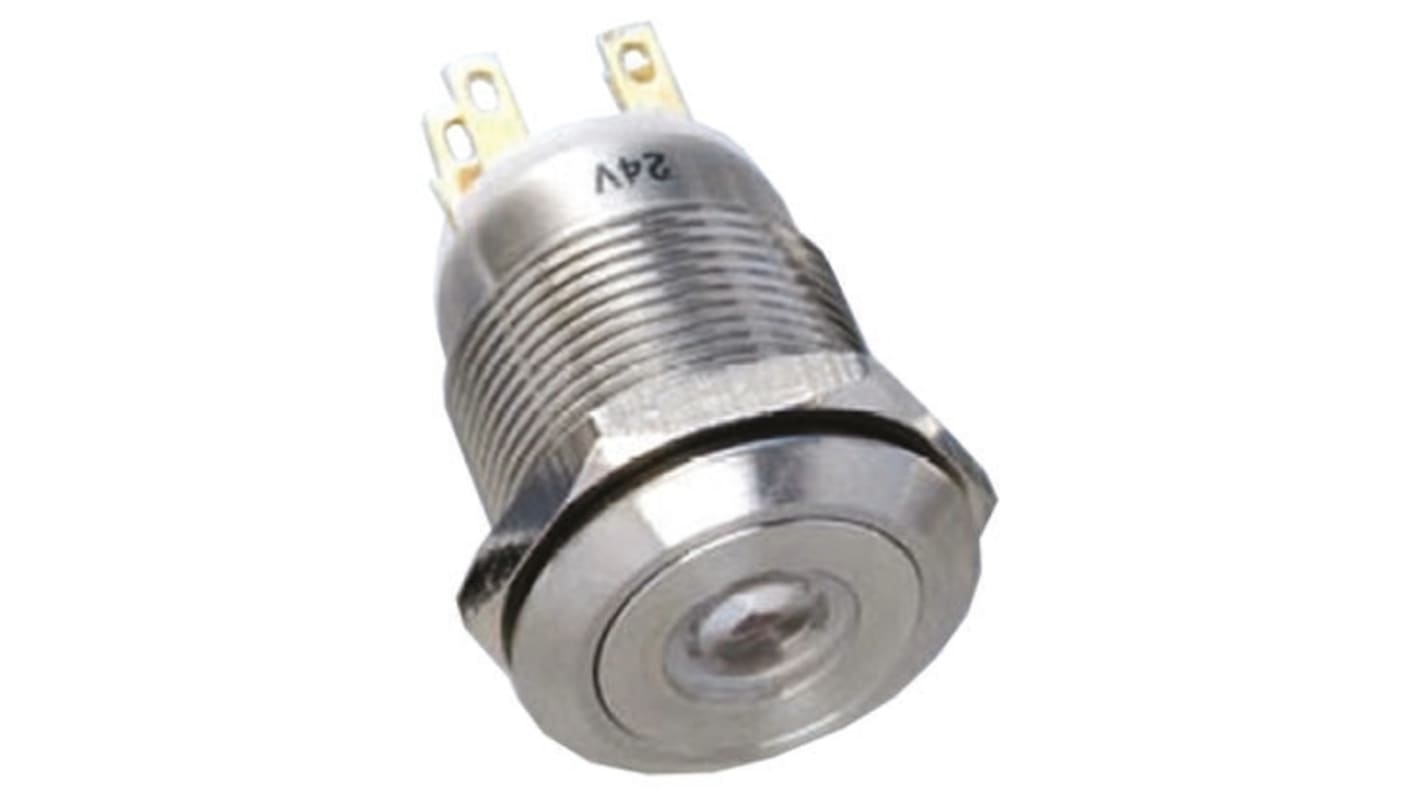

R Series illuminated Anti-vandal pushbutton (19 mm)
These R series are a range of 19 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-
• Access Control systems.
• Machinery and factory equipment.
• Exposed public areas such as ticket machines, kiosks and vending machines.
• And many more.
• Machinery and factory equipment.
• Exposed public areas such as ticket machines, kiosks and vending machines.
• And many more.
Features and Benefits
• Vandal Resistant push buttons.
• Impact resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
• Mounted in 19mm holes.
• Illuminated – ring or central dot LED illumination, available in several different colours. They will emit a light when pressed.
• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
• Impact resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
• Mounted in 19mm holes.
• Illuminated – ring or central dot LED illumination, available in several different colours. They will emit a light when pressed.
• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | Yes |
| Panel Cut Out Diameter | 19.2mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | SPDT |
| Push Button Style | Round |
| LED Colour | Yellow |
| IP Rating | IP65 |
| Contact Current Rating | 5 A @ 250 V ac |
| Contact Material | Silver Alloy |
| Case Colour | Stainless Steel |
| Manufacturer Part No. | R19FFSSPAGDY6 |
| Terminal Type | Solder |
