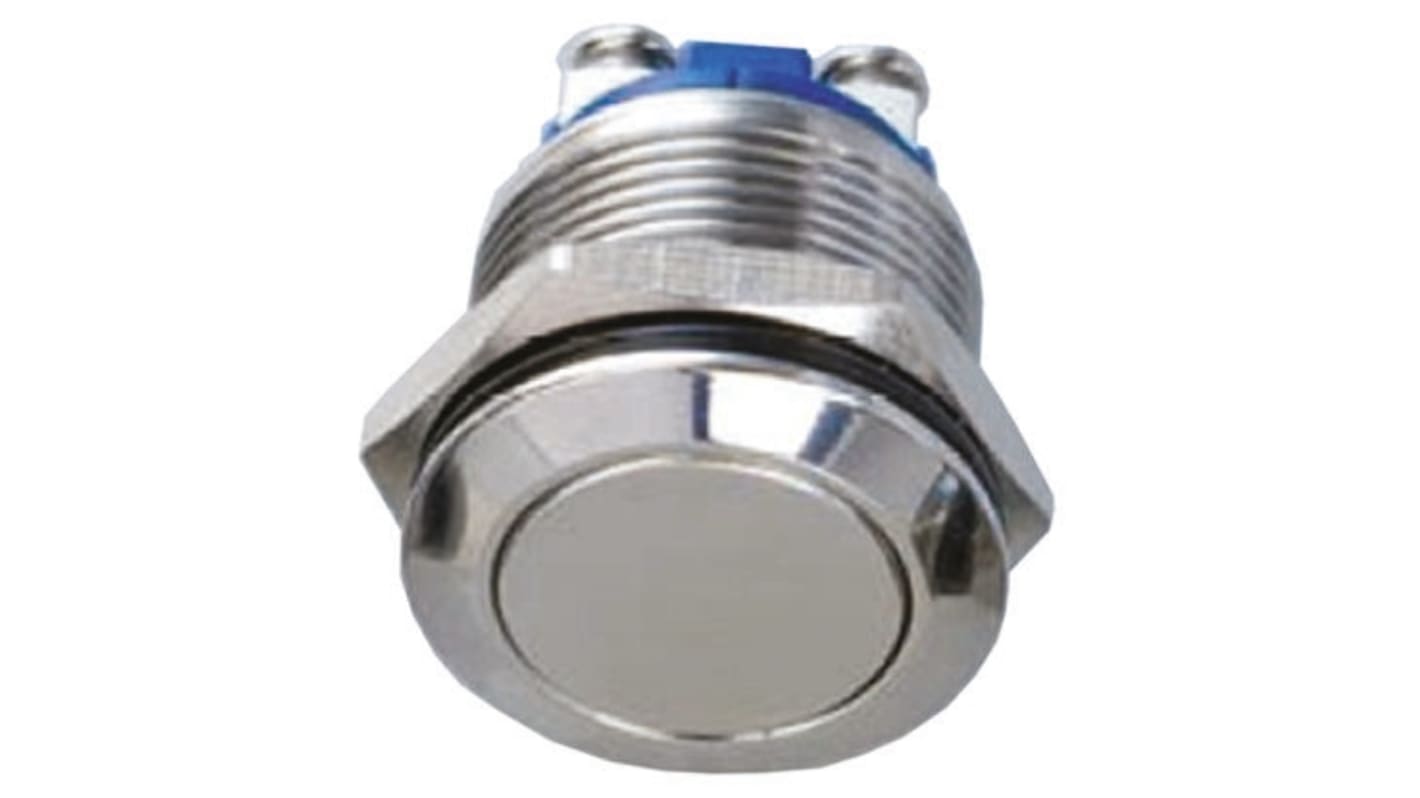

EOZ Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPST, 48 V dc, 250V ac, IP65
- RS-artikelnummer:
- 690-3295
- Tillv. art.nr:
- R19FRGSTAG
- Tillverkare / varumärke:
- EOZ
22 I lager för avsändande samma dag
60 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
110,96 kr
(exkl. moms)
138,70 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 110,96 kr |
- RS-artikelnummer:
- 690-3295
- Tillv. art.nr:
- R19FRGSTAG
- Tillverkare / varumärke:
- EOZ
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
R Series Anti-vandal pushbutton (19 mm)
These R series are a range of 19 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-
• Access Control systems.
• Machinery and factory equipment.
• Exposed public areas such as ticket machines, kiosks and vending machines.
• And many more.
• Machinery and factory equipment.
• Exposed public areas such as ticket machines, kiosks and vending machines.
• And many more.
Features and Benefits
• Vandal Resistant push buttons.
• Shock resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
• Mounted in 19mm holes.
• Non-illuminated.
• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
• Shock resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
• Mounted in 19mm holes.
• Non-illuminated.
• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 19.2mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPST |
| Voltage Rating | 48 V dc, 250V ac |
| Push Button Style | Round |
| IP Rating | IP65 |
| Contact Current Rating | 2 A @ 48 V dc |
| Contact Material | Silver Alloy |
| Manufacturer Part No. | R19FRGSTAG |
| Case Colour | Gold |
| Terminal Type | Screw |
