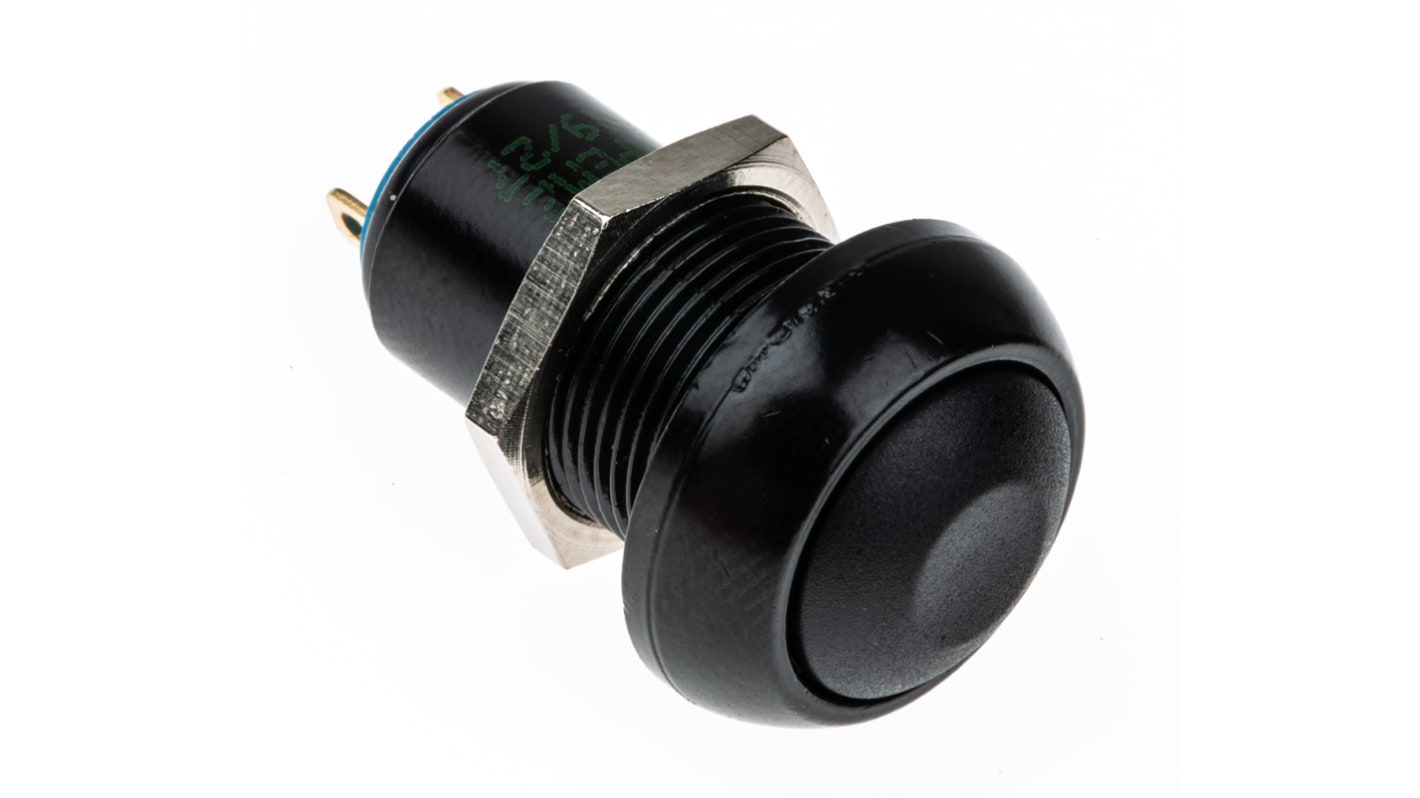

APEM Miniature Push Button Switch, Latching, Panel Mount, 13.6mm Cutout, SPST, 12/48/72V dc, IP67
- RS-artikelnummer:
- 435-5534
- Tillv. art.nr:
- IPR1SAD2
- Tillverkare / varumärke:
- APEM
100 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
276,78 kr
(exkl. moms)
345,98 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 276,78 kr |
| 10 - 49 | 249,21 kr |
| 50 - 99 | 207,53 kr |
| 100 - 249 | 193,75 kr |
| 250 + | 177,34 kr |
- RS-artikelnummer:
- 435-5534
- Tillv. art.nr:
- IPR1SAD2
- Tillverkare / varumärke:
- APEM
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Single pole miniature panel mounting push-button switches
Epoxy sealed terminals prevent flux ingress during soldering
IP67 rated
LED illumination option
IP67 rated
LED illumination option
Standards
EN 50102 - IEC 512-4 - IEC 512-6
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Panel Cut Out Diameter | 13.6mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Black |
| Contact Configuration | SPST |
| Voltage Rating | 12/48/72V dc |
| Push Button Style | Dome |
| IP Rating | IP67 |
| Contact Current Rating | 5 A @ 28 V dc |
| Contact Material | Gold Plated Silver |
| Case Colour | Black |
| Manufacturer Part No. | IPR1SAD2 |
| Terminal Type | Solder |
