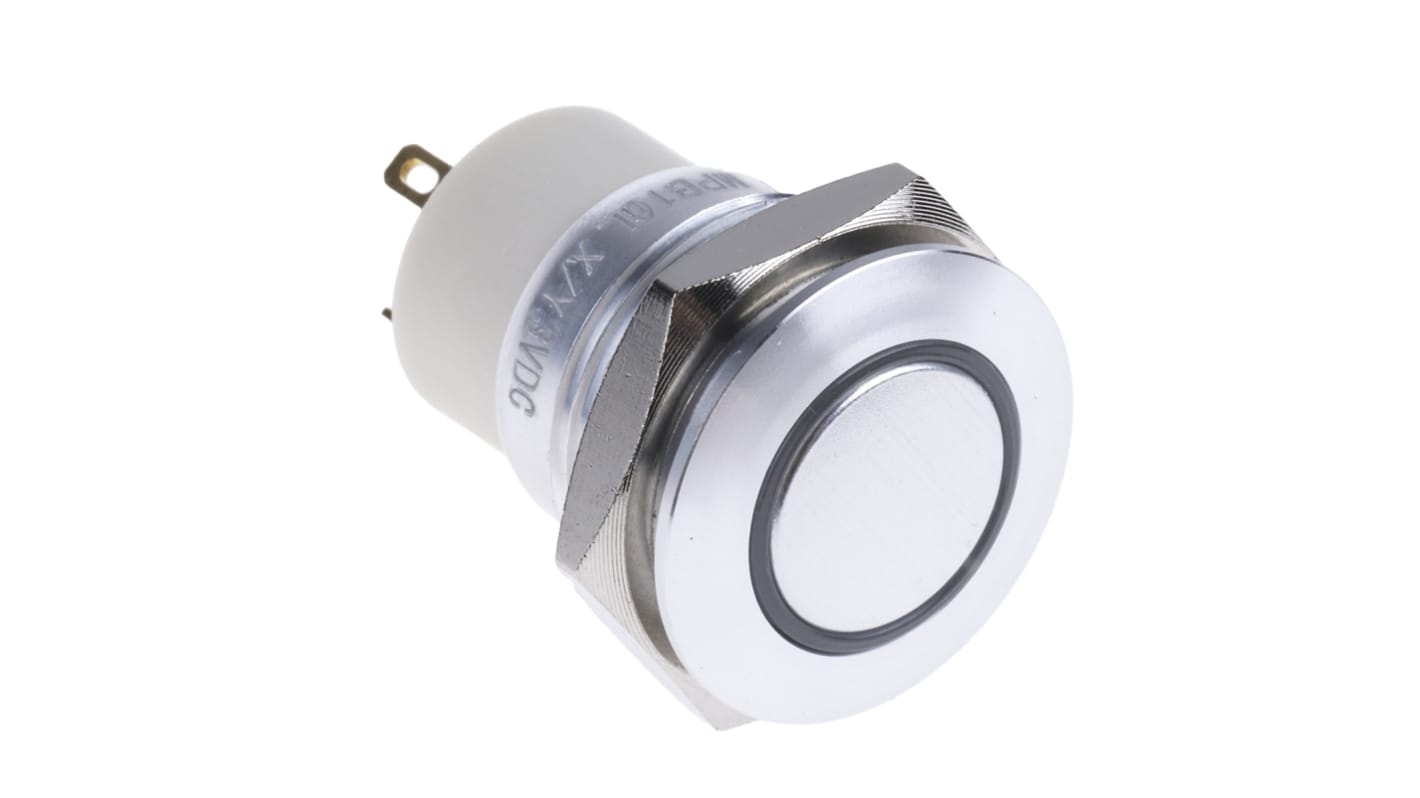

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 16mm Cutout, SPST, Yellow LED, 36V dc, IP67
- RS-artikelnummer:
- 175-9147
- Tillverkare / varumärke:
- RS PRO
20 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 20)
143,886 kr
(exkl. moms)
179,858 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 20 + | 143,886 kr | 2 877,72 kr |
- RS-artikelnummer:
- 175-9147
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
Anti-Vandal Pushbutton Switch [Lock] (MPB Series)
IP67 rated.
Design of flat LED, recognizable LED terminal, 2 LED switching function inside and cap with momentary appearance when locked.
Offer a long life expectancy, and ring or power symbol illumination.
Design of flat LED, recognizable LED terminal, 2 LED switching function inside and cap with momentary appearance when locked.
Offer a long life expectancy, and ring or power symbol illumination.
Applications
Industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual equipment, energy storage equipment.
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 16mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPST |
| Voltage Rating | 36V dc |
| Push Button Style | Round |
| LED Colour | Yellow |
| IP Rating | IP67 |
| Contact Current Rating | 2 A |
| Contact Material | Brass, Coin Silver |
| Manufacturer Part No. | MPB16L-CARE-05-JR-3V |
| Case Colour | Natural |
| Contact DC Voltage Rating | 36V |
| Terminal Type | Solder |
