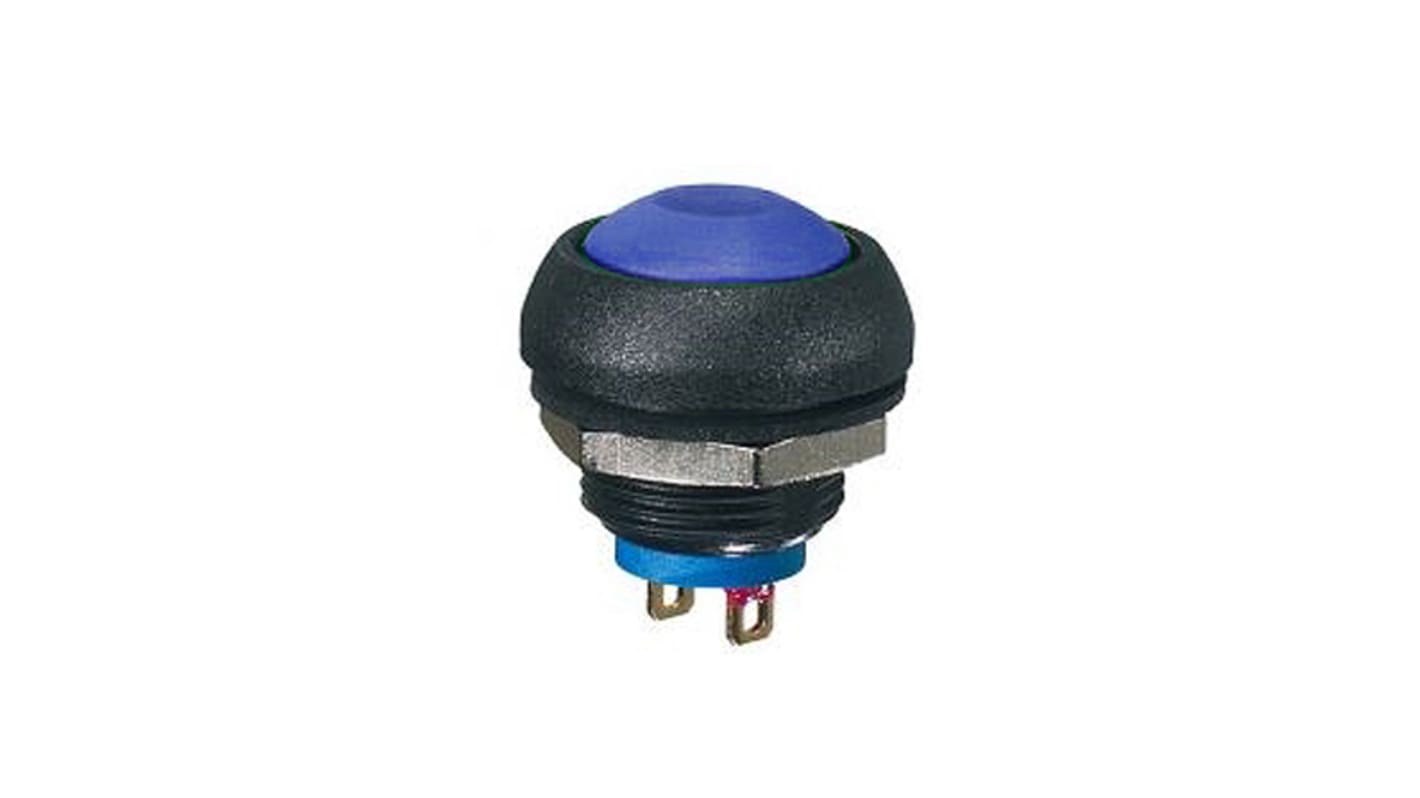

APEM IS Series Series Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, 32/48V dc, IP67
- RS-artikelnummer:
- 122-6268
- Tillv. art.nr:
- ISR3SADB00
- Tillverkare / varumärke:
- APEM
82 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
141,45 kr
(exkl. moms)
176,81 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 141,45 kr |
| 10 - 49 | 127,67 kr |
| 50 - 99 | 106,23 kr |
| 100 - 249 | 99,12 kr |
| 250 + | 90,58 kr |
- RS-artikelnummer:
- 122-6268
- Tillv. art.nr:
- ISR3SADB00
- Tillverkare / varumärke:
- APEM
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Momentary pushbutton switches IS 67 Series IP – lug terminals, ø 12mm bushing
Thin behind-panel depth.
Compact and light.
Plastic button and case.
Excellent tactile feedback.
Compact and light.
Plastic button and case.
Excellent tactile feedback.
Standards
IEC 512-4 - IEC-512-6
Specifikationer
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 13.6mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Blue |
| Contact Configuration | SPST |
| Voltage Rating | 32/48V dc |
| Push Button Style | Round |
| IP Rating | IP67 |
| Series | IS Series |
| Contact Current Rating | 100 mA @ 48 V dc, 400 mA @ 32 V ac |
| Contact Material | Gold Plated Silver |
| Manufacturer Part No. | ISR3SADB00 |
| Contact DC Voltage Rating | 48V |
| Contact AC Voltage Rating | 32V |
| Case Colour | Black |
| Terminal Type | Solder Lug |
