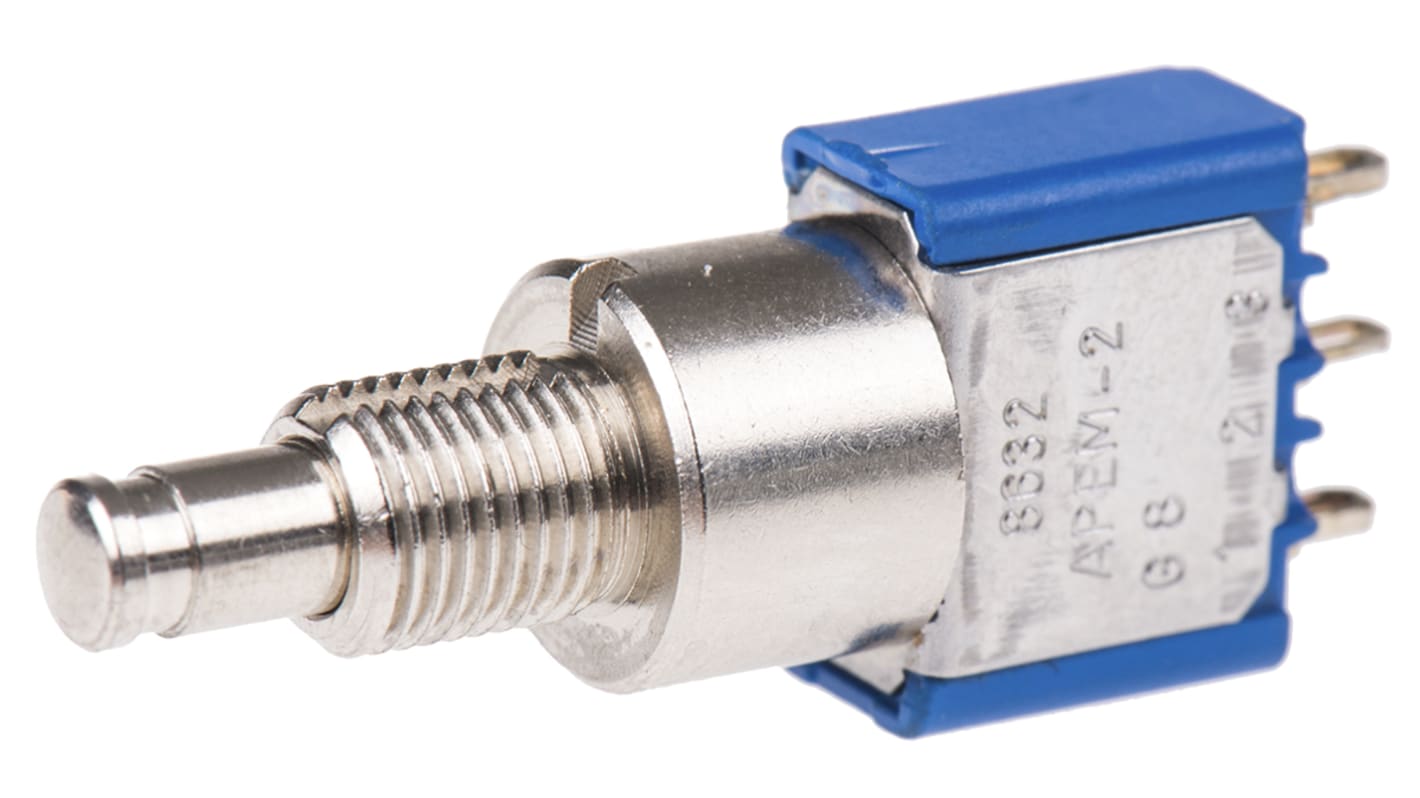

Single Pole Double Throw (SPDT) Momentary Miniature Push Button Switch, Panel Mount

  • RS-artikelnummer 103-5732
  • Tillv. art.nr 8632A
  • Tillverkare / varumärke APEM
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): FR
Produktdetaljer

Apem Miniature Push Button Switches

From Apem, the 8000 range of miniature switches includes momentary and latching, and in Single Pole Double Throw and Double Pole Double Throw variants.

The compact miniature case has a stainless steel body and epoxy sealed terminals, and the nickel plated brass actuator is compatible with interchangeable coloured caps. Optional sealing hoods are also available.

Features and Benefits:

• Electrical Life: 30000 cycles
• Insulation Resistance: 1000 MOhm @ 500 V dc
• Gold plated brass, or Gold Plated Silver terminals available

Available in this range:

• Stock No: 103-5732 is an SPDT Momentary switch
• Stock No: 103-5748 is an SPDT Latching Switch
• Stock No: 103-5760 is a DPDT Momentary switch
• Stock No: 103-5776 is a DPDT Latching Switch
• Stock No: 103-5782 is a black push-button cap
• Stock No: 103-5798 is a red push-button cap
• Stock No: 103-5805 is a green push-button cap
• Stock No: 119-3692 is a sealing hood
• Stock No: 692-8428 is an SPDT Momentary switch
• Stock No: 692-8430 is an SPDT Latching switch
• Stock No: 692-8437 is a DPDT Momentary switch
• Stock No: 692-8434 is a DPDT Latching switch

Approvals

UL

Specifikationer
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Illuminated No
Contact Configuration Single Pole Double Throw (SPDT)
Panel Cut Out Size 6.5 (Dia.)mm
Panel Cut Out Diameter 6.5mm
Actuator Colour Silver
Voltage Rating 250V ac
Contact Current Rating 4 A @ 30 V dc
Actuator Shape Round
Terminal Type Solder, Tab
Contact AC Voltage Rating 125V
Actuator Type Plunger
Contact DC Voltage Rating 30V
1673 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
57,65 kr
(exkl. moms)
72,06 kr
(inkl. moms)
Enheter
Per unit
1 - 24
57,65 kr
25 - 99
56,16 kr
100 - 249
54,68 kr
250 +
43,46 kr
