Schneider Electric Flush Black Push Button Head - Momentary, Harmony XB5 Series, 22mm Cutout, Round

Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): FR
Produktdetaljer

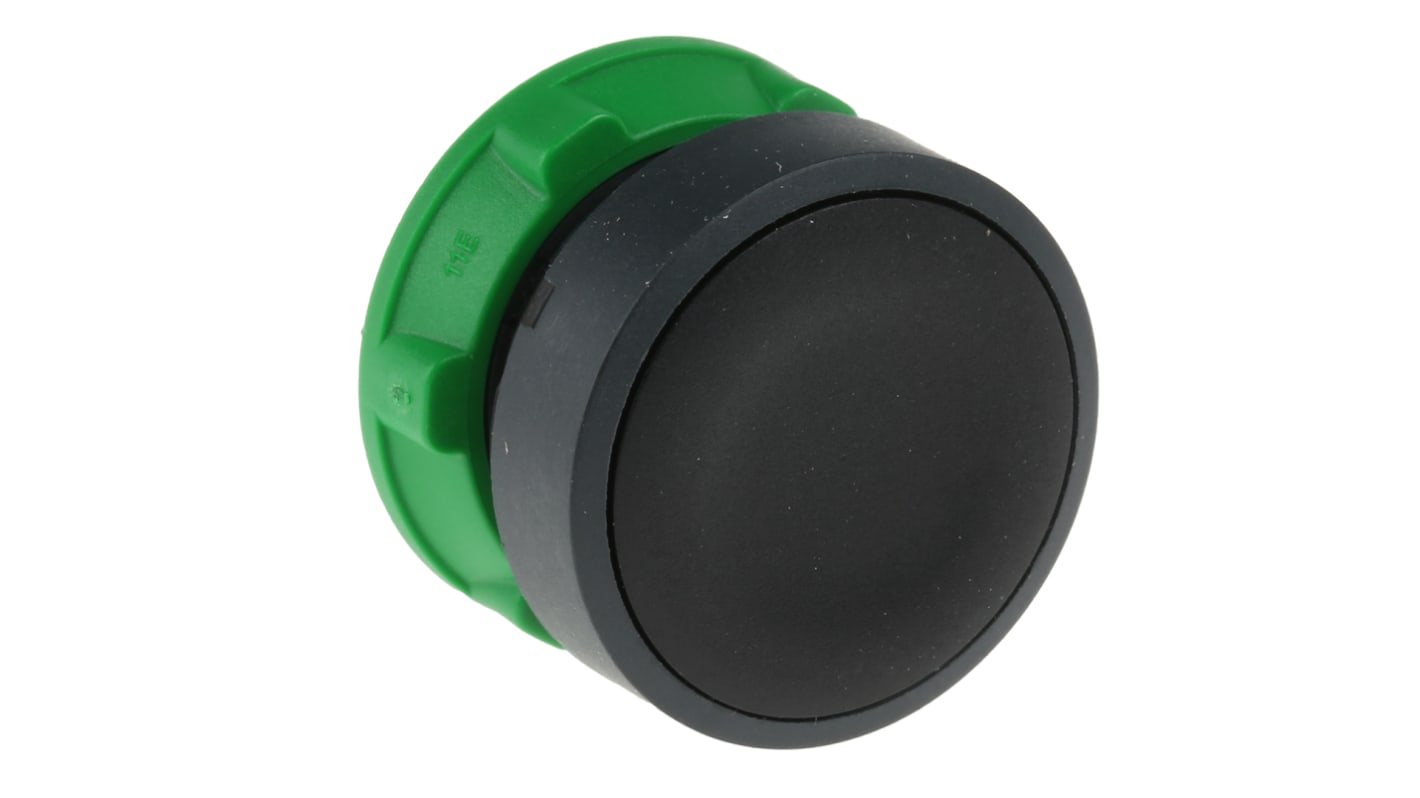

Schneider Electric Push Button Head - ZB5AA2

Forming part of the Harmony XB5 range of products, this pushbutton head designed for non-illuminated pushbuttons comes as standard and is dark grey in colour. Comprised of strong and robust plastic material, this pushbutton head features a spring return and 22 mm mounting diameter.

Features & Benefits

• Block flush and unmarked operator profile
• Mechanically durable for up to 10000000 cycles
• Conforms to JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508 and JIS C8201-1
• Commonly referred to as ZB5

Applications

The ZB5AA2 pushbutton head can be installed anywhere you deem necessary that requires a system with the ability to perform manual intervention to stop dangerous machinery from causing injury. The buttons are perfect for large scale operations or smaller commercial applications. They ensure order and safety can be controlled effectively.

• For use in emergency situations where you need to cut off electrical supply via the use of the button
• Control panels for Air conditioning units in commercial buildings
• Factory automation lines

Specifikationer
Attribute Value
Series Harmony XB5
Cutout Diameter 22mm
Push Button Colour Black
Push Button Shape Round
Push Button Actuation Momentary
Push Button Style Flush
Push Button Material Plastic
IP Rating IP66, IP67, IP69, IP69K
Body/Fixing Collar Included No
Tillfälligt slut i lager – restorder för leverans 2020-10-30
Pris (ex. moms) Each
58,34 kr
(exkl. moms)
72,92 kr
(inkl. moms)
Enheter
Per unit
1 - 4
58,34 kr
5 - 9
56,51 kr
10 +
54,77 kr
